pH Combination Electrodes

Discover the superior performance of HORIBA pH Combination electrodes, equipped with a 1-meter cable and a BNC connector, ensuring compatibility with any HORIBA pH meter*. Unleash a wealth of features and advantages by incorporating these electrodes seamlessly into your current HORIBA pH meter* setup. (For applications requiring temperature measurement and compensation, explore our 3-in-1 pH electrodes.) Elevate your water quality monitoring experience with precision and convenience.
*These electrodes are designed to fit seamlessly into all HORIBA portable and bench meters, excluding the WQ-300 Series

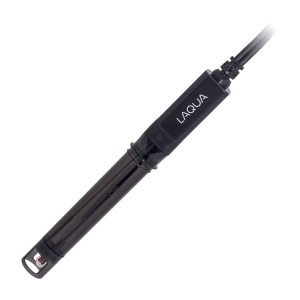

Standard Plastic Body Gel Filled pH/Temp Electrode 9652-10D

Experience hassle-free maintenance with the gel electrolyte-filled plastic body of the electrode, eliminating the need for refilling. Designed for practicality, this electrode can be submerged up to 1m depth of water for 30 minutes, thanks to its waterproof, Pb-free glass construction. Ideal for field use, this electrode ensures reliability in various water quality monitoring scenarios.
Overall length: 150 mm
Diameter of probe: 16 mm
Connectors: BNC & phono jack
pH Range: 0-14
Operating Temperature Range (°C): 0-80
Liquid Junction: Porous sintered polyethylene
Also available with 2m cable. CLICK HERE

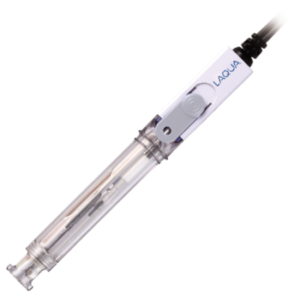

Plastic body refillable pH/Temp Electrode 9625-10D

Tailored for field measurement, the electrode boasts a durable plastic body. Submerge it confidently up to 1m depth of water for 30 minutes, with the refilling port securely closed. Crafted with waterproof, Pb-free glass, it’s the go-to choice for field use, specifically recommended for measuring tap water and drinking water. Trust in its reliability for accurate water quality assessments in diverse environments.
Overall length: 150 mm
Diameter of probe: 16 mm
Connectors: BNC & phono jack
pH Range: 0-14
Operating Temperature Range (°C): 0-100
Liquid Junction: Ceramic

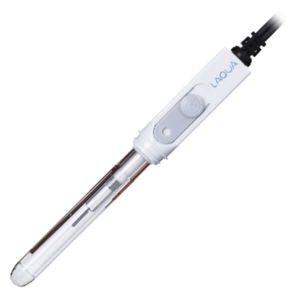

Standard ToupH pH/Temp electrode 9615S-10D

Experience rapid stability and minimized drift with the electrode’s advanced design. Featuring glass that is 10 times stronger than JIS standards, it ensures durability and responsiveness. The one-touch refilling port slider facilitates easy one-hand operation for user convenience. Crafted with waterproof, Pb-free glass, this electrode is the perfect choice for preparing pH buffers and various aqueous test solutions. Trust in its strength and user-friendly design for efficient and reliable measurements.
Overall length: 198 mm
Diameter of probe: 12 mm
Connectors: BNC & phono jack
pH Range: 0-14
Operating Temperature Range (°C): 0-100
Liquid Junction: Ceramic

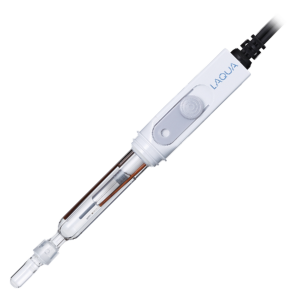

Sleeve ToupH Glass pH/Temp Electrode 9681S-10D

Achieve reliable stability even in highly viscous samples with this electrode. The liquid junction is equipped with a movable sleeve for easy cleaning, preventing clogging. Crafted with waterproof, Pb-free glass. Ideal for measuring highly viscous samples and those containing non-aqueous solvents, such as cosmetics and paints. Trust in this electrode’s performance for accurate readings in challenging sample conditions.
Overall length: 203 mm
Diameter of probe: 12 mm
Connectors: BNC & phono jack
pH Range: 0-14
Operating Temperature Range (°C): 0-60
Liquid Junction: Moveable Sleeve

Micro ToupH glass pH/Temp Electrode 9618S-10D

Unlock precision in small-scale measurements with this electrode. • Capable of measuring samples as small as 50µL. • Compatible with extremely small containers, including micro tubes. • Temperature sensor strategically placed next to the bulb ensures quick response. • Waterproof design. Perfect for low-volume samples and a diverse range of aqueous solutions, this electrode is your reliable partner in achieving accurate measurements with minimal sample size.
Overall length: 185 mm
Diameter of probe: 3 mm
Connectors: BNC & phono jack
pH Range: 0-14
Operating Temperature Range (°C): 0-60
Liquid Junction: Ceramic
