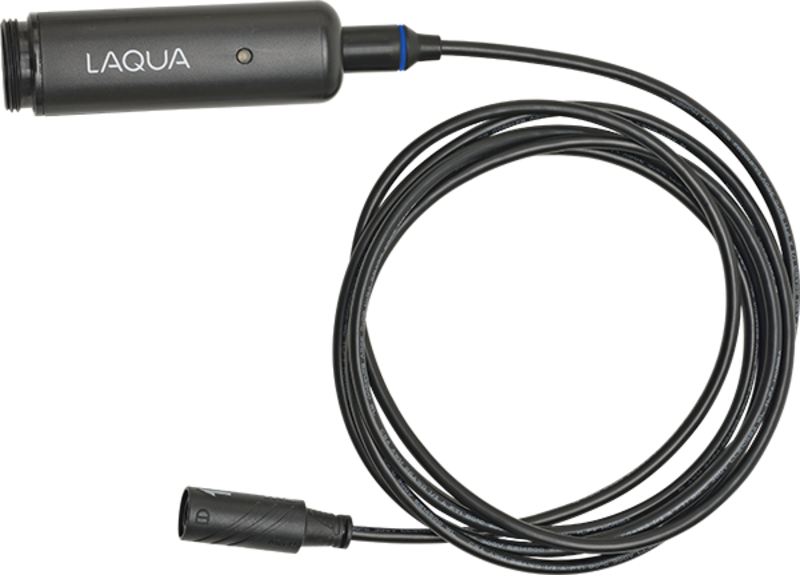

300-C-2 / 300-C-5 Conductivity Sensor Head

$415.00$535.00 ex GST

Product Description

HORIBA’s superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications – from pure water to complex samples. Select the suitable electrode that is specially designed for your application.

Sensor head for 300-4C-C conductivity sensor cartridge

Model

Description

300-C-2

Conductivity sensor head with 2m cable

300-C-5

Conductivity sensor head with 5m cable

Manufactured by HORIBA

Additional Information

Weight 1 kg
Dimensions 1 × 1 × 1 cm

Model

300-C-2 / 300-C-5

Conductivity Range

μS/cm

0.000 to 0.199

0.200 to 1.999

2.00 to 19.99

20.0 to 199.9

200 to 1999

mS/cm

2.00 to 19.99

20.0 to 199.9

200 to 2000



μS/m

0.0 to 19.9

20.0 to 199.9

200 to 1999

mS/m

2.00 to 19.99

20.0 to 199.9

200 to 1999

S/m

2.00 to 19.99

20.0 to 200.0

Resolution

Auto ranging, up to 4 significant digits

Accuracy

± 0.5% full scale of each range

> 200 mS/cm (20.0 S/m): ± 1.5% full scale

Reference Temperature

15 to 30 °C

Temperature Coefficient

0.00 to 10.00 %/°C

Calibration Points

Up to 4 (Auto) / Up to 5 (Manual)

Units

 S/cm, S/m

Salinity Range

0.00 to 80.00 ppt

0.000 to 8.000 %

Resolution

0.01 ppt, 0.001 %

Accuracy

± 0.5% of reading or ± 0.01 ppt,

whichever is greater

Salinity Curves

NaCl, Seawater (UNESCO 1978)

Calibration Option

Yes

Total Dissolved Solids (TDS) Range

0.01 mg/L to 200,000 mg/L

Resolution

0.01 minimum, 4 significant digits

Accuracy

± 0.5% of reading or ± 0.1 mg/L,

whichever is greater

TDS Curves

Linear (0.40 to 1.00), EN27888, 442, NaCl

Resistivity Range

Ω•cm

0.1 to 199.9

200 to 1999

kΩ•cm

2.00 to 19.99

20.0 to 199.9

200 to 1999

MΩ•cm

2.00 to 19.99

20.0 to 200.0



Ω•m

0.001 to 1.999

2.00 to 19.99

20.0 to 199.9

200 to 1999

kΩ•m

2.00 to 19.99

20.0 to 199.9

200 to 2000

Resolution

Auto ranging, up to 4 significant digits

Accuracy

± 0.5% full scale of each range

> 200 mS/cm (20.0 S/m): ± 1.5% full scale

Temperature Range

-30.0 to 130.0 °C

-22.0 to 266.0 °F

Resolution

0.1 °C / °F

Accuracy

±0.5 °C / ±0.9 °F

Calibration Option

Yes

Body Material

ABS and polycarbonate

Length & Diameter

85 x 30 mm

Cable Length

2m / 5m
