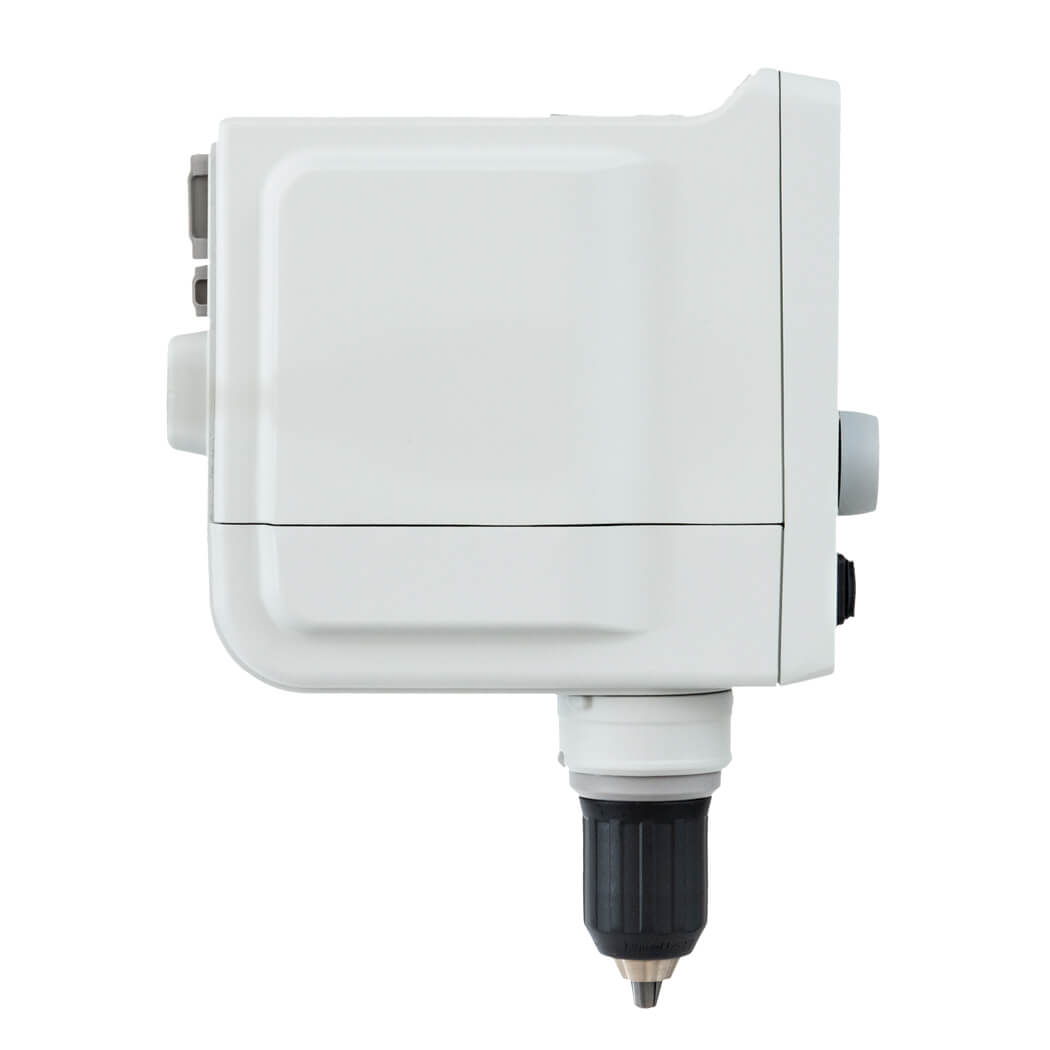

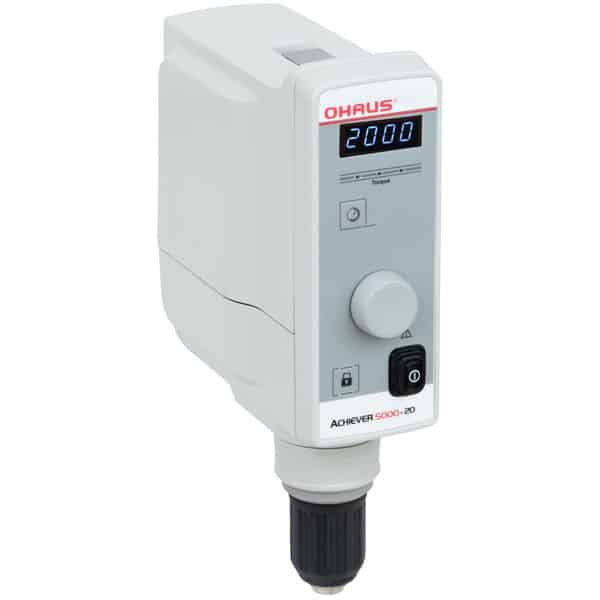

Overhead Stirrer Achiever 5000 Capacity 25L, Speed Range 30rpm – 2000rpm, Sample Viscosity (mPa s) maximum 10,000

From: $2,415.00 ex GST

Discover unparalleled performance and reliability in your everyday stirring tasks with OHAUS Achiever 5000™ Overhead Stirrers. Engineered for precision and power, these stirrers guarantee safety and simplicity across a spectrum of applications. The sealed design, boasting an IP54 rating, ensures secure mixing performance even in the most challenging environments. With keyless chuck and software-controlled speed ramping, setup becomes a breeze, providing a safe stirring experience to safeguard both your sample and yourself. Choose from five models, offering up to 200 Ncm torque and accommodating volumes of up to 100 L. Elevate your stirring game with OHAUS Achiever 5000™ — where excellence meets everyday convenience.

Chuck Cover e-A51 for Achiever 5000 Series

Clamp Double for Achiever 5000 Series

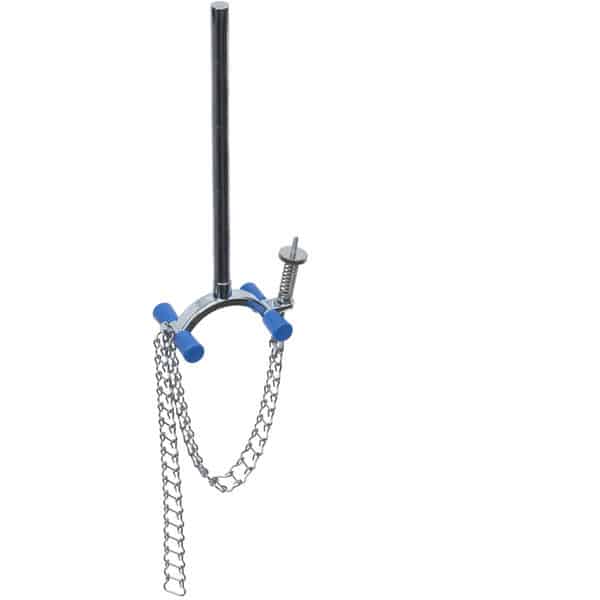

Clamp Ribbon for Achiever 5000 Series

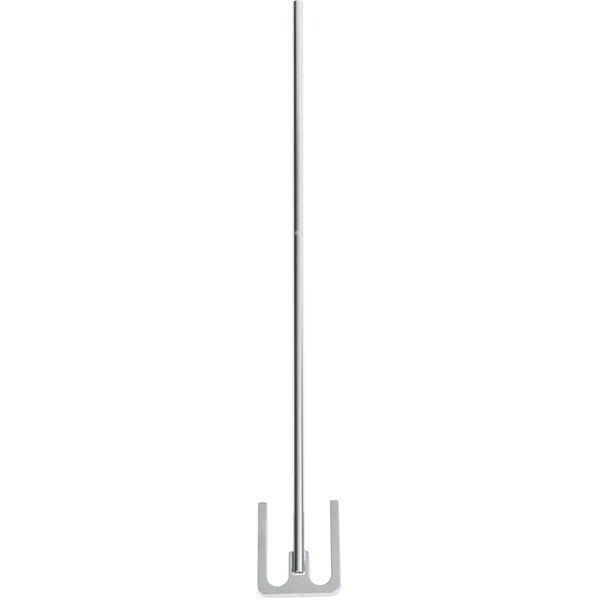

Ohaus Stirrer Shaft 40x0.7cm Anchor Blade, Stir Speed RPM - All Speeds, for Achiever 5000 Series

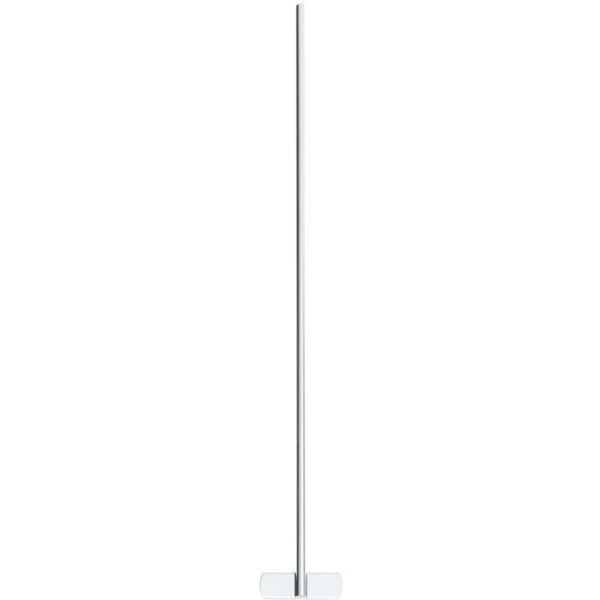

Ohaus Stirrer Shaft 40x0.7 cm Fixed Blade, Stir Speed 250-Max RPM for Achiever 5000 Series

Ohaus Stirrer Shaft 40x0.7cm Floating Blade, Stir Speed 250-Max RPM for Achiever 5000 Series

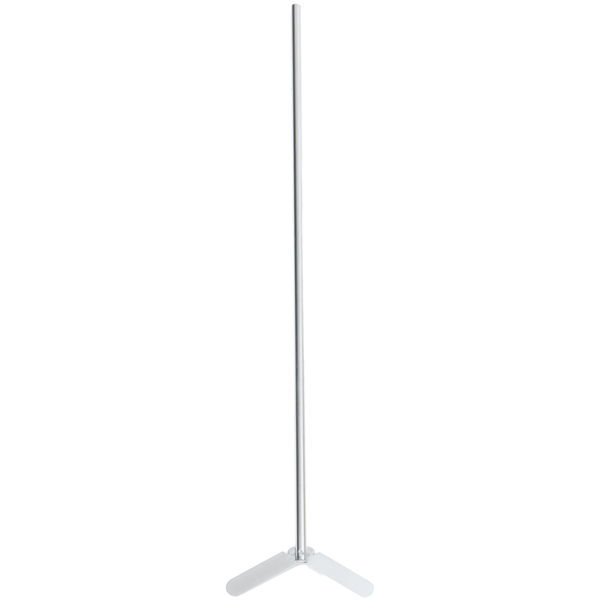

Ohaus Stirrer Shaft 40x0.7cm Folding Blade, Stir Speed 250-Max RPM for Achiever 5000 Series

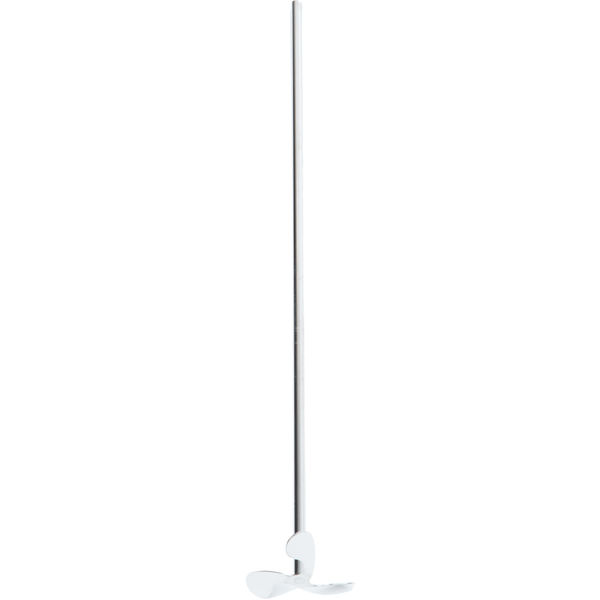

Ohaus Stirrer Shaft 40x0.7 cm Propeller, Stir Speed 250-Max RPM for Achiever 5000 Series

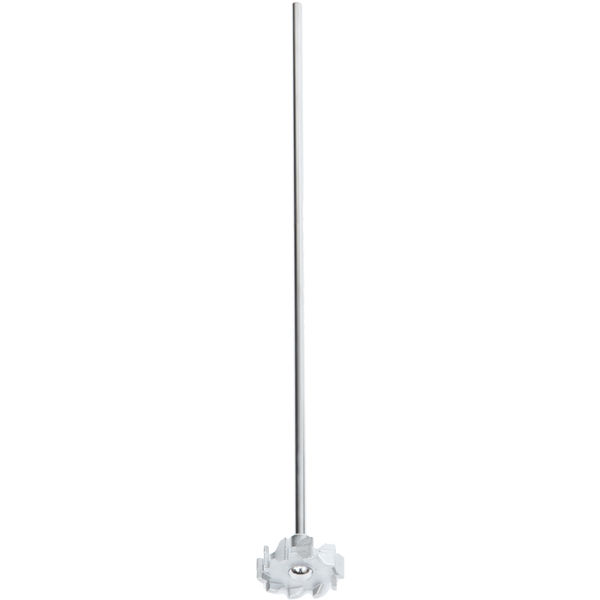

Ohaus Stirrer Shaft 40x0.7 cm Turbine, Stir Speed 250-Max RPM for Achiever 5000 Series

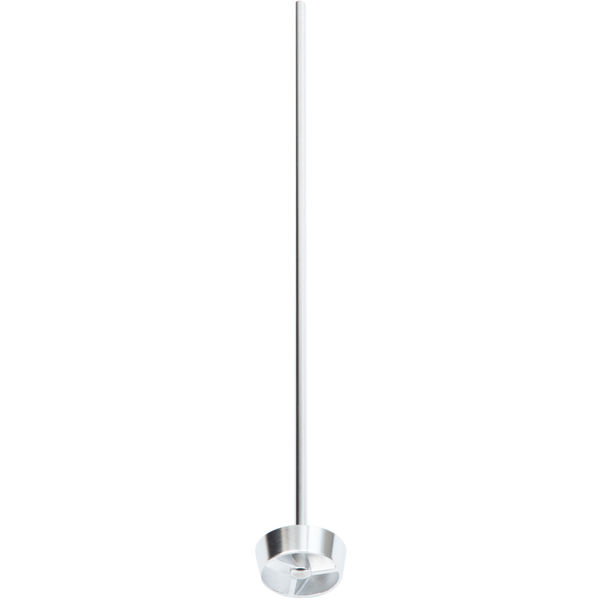

Ohaus Stirrer Shaft 40x0.7 cm Turbo Propeller, Stir Speed 250-Max RPM for Achiever 5000 Series

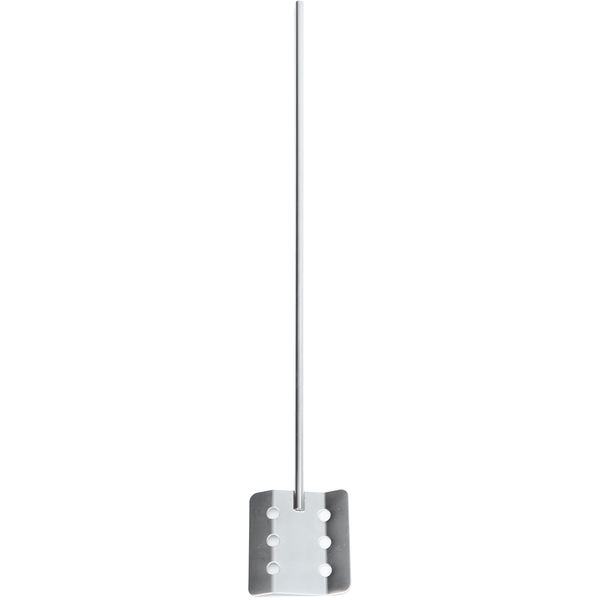

Ohaus Stirrer Shaft 51x0.7 cm Paddle 6 Holes, Stir Speed up to 800 RPM for Achiever 5000 Series

Support Stand Telescopic-H for Achiever 5000 Series

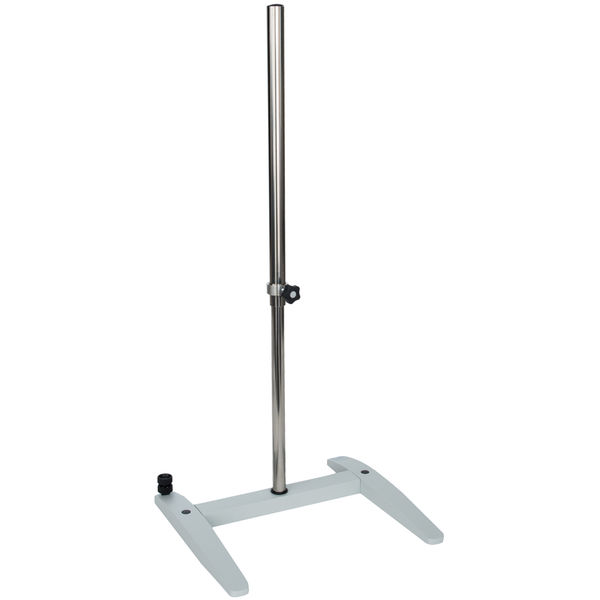

Support Stand Universal-H for Achiever 5000 Series

Contact Us For Availability Prior To Purchase

SKU: 30586763 Categories: ,

Product Description

Experience the cutting-edge OHAUS Achiever 5000™ Overhead Stirrers, redefining excellence with unique features tailored for unparalleled performance:

Experience the cutting-edge OHAUS Achiever 5000™ Overhead Stirrers, redefining excellence with unique features tailored for unparalleled performance:

  1. Brushless Motor and Torque Compensation:
    • Powerful mixing and consistent speed are guaranteed by the brushless motor and torque compensation technology. This innovation ensures accurate, controlled stirring of viscous liquids while maintaining quiet operation.
  2. Keyless Chuck for Effortless Setup:
    • Simplify your setup with the Keyless Chuck, eliminating the need for tools. Swiftly and effortlessly change shafts with one-handed operation, saving valuable time and effort in the lab.
  3. Safety-First Design:
    • Prioritize safety with the lock button that prevents accidental speed changes. The motor’s overload sensing technology takes it a step further, automatically shutting off stirring before an overload condition occurs, safeguarding your valuable samples.
  4. Compact and User-Friendly:
    • Enjoy a compact design that doesn’t compromise on functionality. The simple knob control, coupled with a bright digital display, allows for precise setting and monitoring. Customize your stirring experience with over 12 accessories tailored to your application.

Elevate your laboratory experience with OHAUS Achiever 5000™, where innovation meets safety and efficiency. Unleash the power of controlled stirring with ease and precision.

Applications:

OHAUS Achiever 5000™ Overhead Stirrers excel in a diverse range of applications across various industries, including:

  • Stirring
  • Dissolving
  • Dispersion
  • Emulsification
  • Homogenization

Industries benefiting from these capabilities include:

  • Food and Beverage
  • Cosmetics
  • Paint/Coatings
  • Pharmaceutical
  • Chemical
  • Glue/Adhesive
  • Plastics/Polymer
  • Cement/Construction

These stirrers are also ideal for pilot-scale operations in manufacturing.

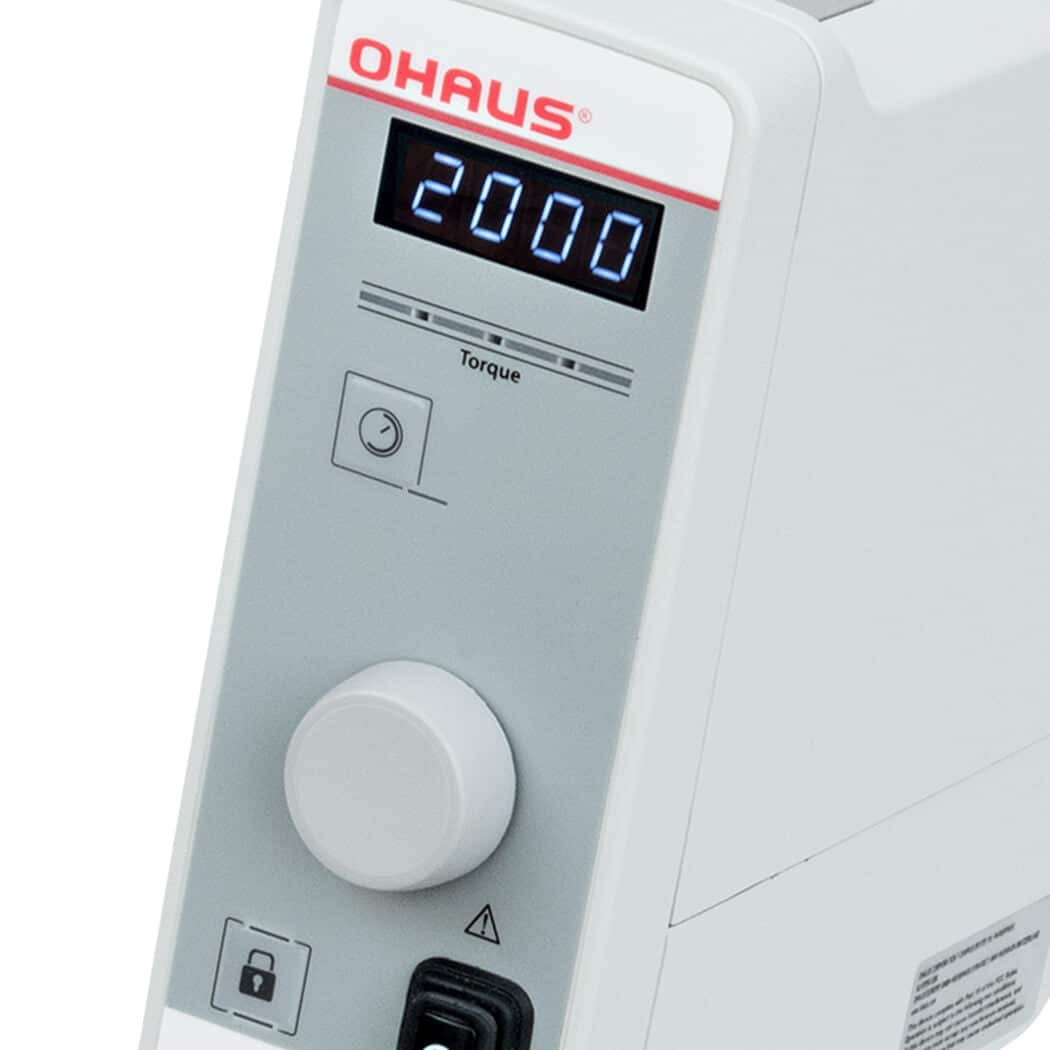

Display:


The stirrers feature a bright LED digital display providing information on speed, a real-time torque tendency LED indicator bar, and an integrated timer.

Operation
  • Stirring speed ranges from 6 rpm to 2000 rpm.
  • Speed accuracy of 1 rpm ensures precision.
  • Maximum torque varies between 20 Ncm to 200 Ncm, depending on the model.
  • Stable torque is maintained at any speed.
  • Volume capacity ranges from 25L to 100L.
Construction
  • Sealed aluminum housing ensures durability and longevity.
  • IP54 ingress protection rating for added reliability.
  • Keyless Chuck facilitates simple, one-hand operation.
  • Brushless motor guarantees quiet operation.
  • Main power switch for convenient control.
Design Features
  • Compact design for easy handling.

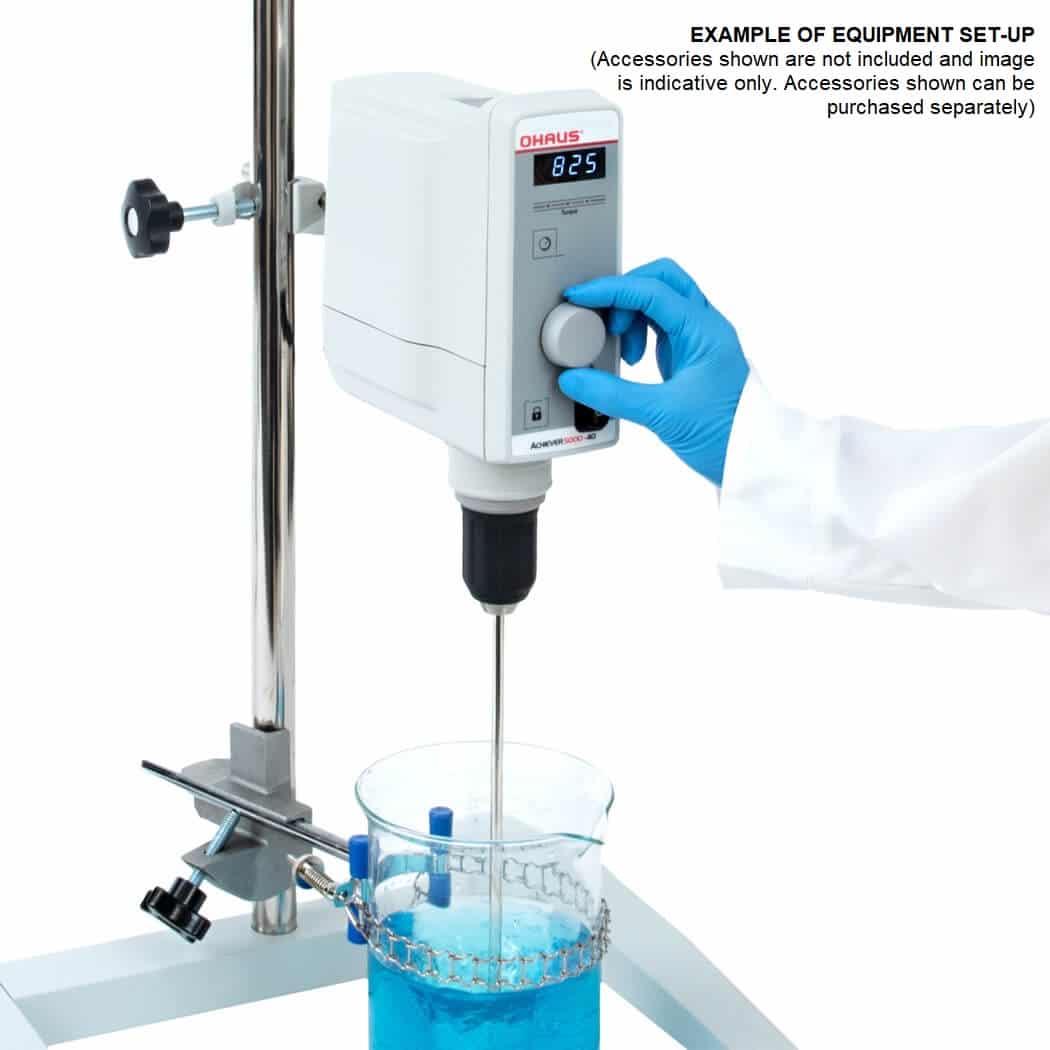

  • Simple knob control for user-friendly operation.
  • Lock button prevents unintentional setting changes.
  • Full protection against overload, overtemperature, and overcurrent conditions, ensuring a safe and reliable stirring experience.



Speed Range 30 rpm – 2000 rpm
Capacity 25 L
Sample Viscosity (mPa s) maximum 10,000
Torque (max) 20 Ncm
Chuck Range (Diameter) 1-13 mm
Shaft Pass-Through (Diameter) up to 8.5 mm
Control Digital
Dimensions 9.3 in x 11.2 in x 3.5 in (235 mm x 285 mm x 90 mm) (LxHxW)
Display LED Display
Function Stirring
IP rating IP 54
Net Weight 9 lb (4.1 kg)
Power 115 / 230 VAC
Power Consumption 190 W
Safety Certification cNemkous
Speed Accuracy ±1 rpm
Speed Range 30 rpm ; 2,000 rpm
Timer 1 minute – 99 hours, 59 minutes
Working Environment 41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80% RH, Non-condensing)
