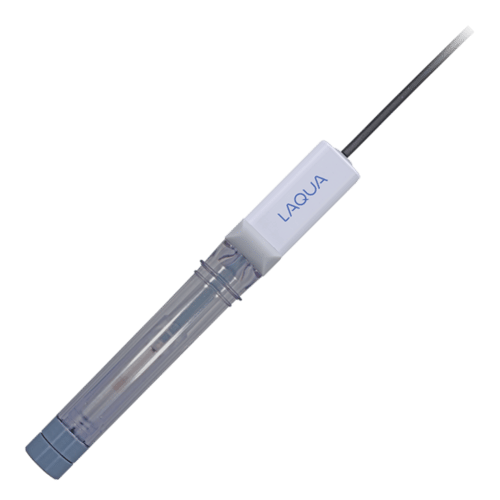

Ammonia Electrode (ISE Combination) 5002S-10C Kit including: Filling Solution, 100/1000ppm Calibration Solutions and 3 Membranes

$1,295.00 ex GST

Usually Ships in 21 Days

Product Description

Ion-selective electrodes are responsive to concentration of particular ions in the test liquid and are variable-potential electrodes. They are used in conjunction with reference electrodes to measure the concentration of particular ions. HORIBA’S years of experience and know-how in this field are behind the wide range of ion electrodes we offer.

When measurements are made using an ion meter, calibrating it with various standard solutions will give direct readings of the ion concentration. Note that since volumes-detection level changes with temperature, measurements must be taken at a fixed temperature.

The ammonia electrode is supplied with:
*3 membrane caps
*1000mg/L ammonium ion standard 50ml
*100mg/L ammonium ion standard 50ml
*Ammonia electrode filling solution 50ml

***Ammonia electrode requires ionic strength adjusting buffer (ISAB), sodium hydroxide. This can be purchased separately from Australian Scientific Pty Ltd as follows:
Part no. 978092 Sodium Hydroxide 5M (5N-20%), 1L, please contact us for pricing and availability

CLICK HERE FOR BROCHURE

MODEL

5002S-10C

Measurement Range

0.1 – 1,000 mg/L NH3

Temperature Range

0 – 50°C

pH Range

≥ pH 12

Accuracy

±2%

Internal Electrode

Ag/AgCl

Internal Solution

0.1 mol/L NH4Cl

Liquid Junction

Movable sleeve

Connector & Cable Length

BNC, 1m

Dimensions

161mm (length), 15mm (diameter)

Wetted Part Materials

PTFE, PVC, PSU

Slope

-54 to -62 mV/decade

Package Contents

3 pcs. Membrane Caps
1000 mg/L Ammonium Ion Standard Solution (50ml)
100 mg/L Ammonium Ion Standard Solution (50ml)
Ammonia Electrode Filling Solution (50ml)
Syringe
Dropper
Manual

Accessories and Solutions

NH3 Electrode Membrane Caps

Ammonia Electrode Tips

500-NH3-IFS

Ammonia Electrode Filling Solution (500ml)

500-NH4-SL

100 mg/L Ammonium Ion Standard Solution (500ml)

500-NH4-SH

1000 mg/L Ammonium Ion Standard Solution (500ml)
