Product Description
Features
Note: ORP electrode not included. ORP electrode 9300-10D to be ordered separately.

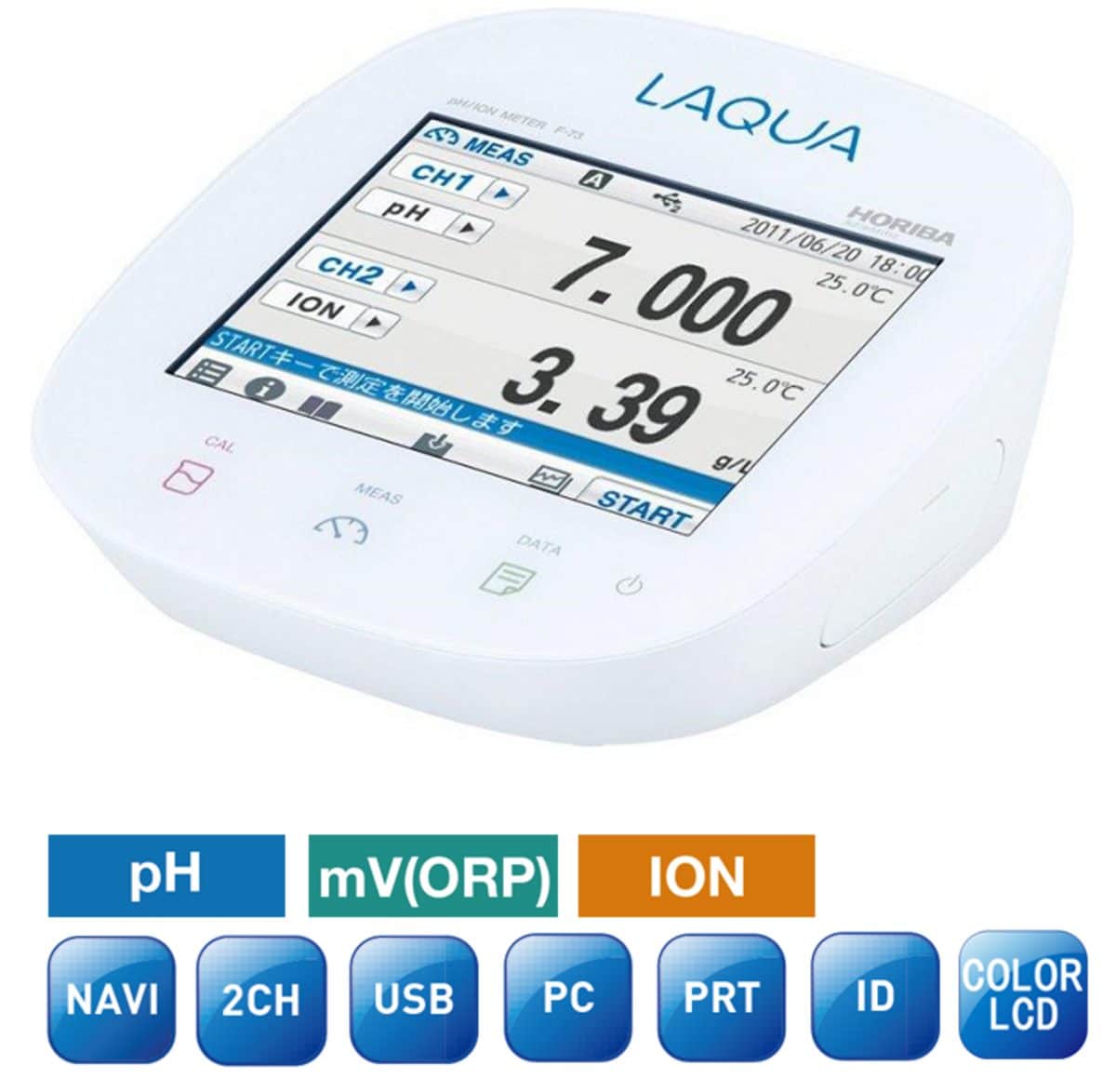

LAQUA’s large capacitance touch screen panel:
- Display easy to understand value and functions menus
- Switch between digital real time graphs or analogue displays during measurement with just the flick of a finger.
- Full on-screen support on the meter via an electronic user guide with colour pictures that can be called up at any time, featuring problem solver guide for calibration or measurement.
Functions
- Easy navigation for main unit and electrode inspections.
- Two channels can be displayed simultaneously
- Periodic inspection mode:JIS/Pharmacopeias/Digital Simulator
- Customizable auto-hold function for calibration and measurement
- Simultaneous connection to a GLP/GMP compatible and PC
- Degital memory:Maximum 2,000 sets of measurement data can be recorded
- USB-PC communication and USB memory
- Multi-language support(Japanese, English, Chinese, Korean)
- FDA 21 CFR Part11 (Please ask for quotation)

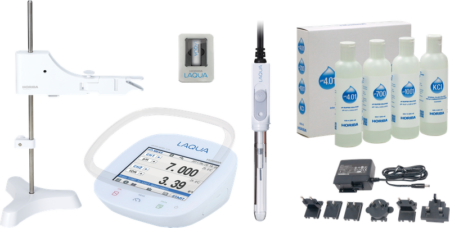

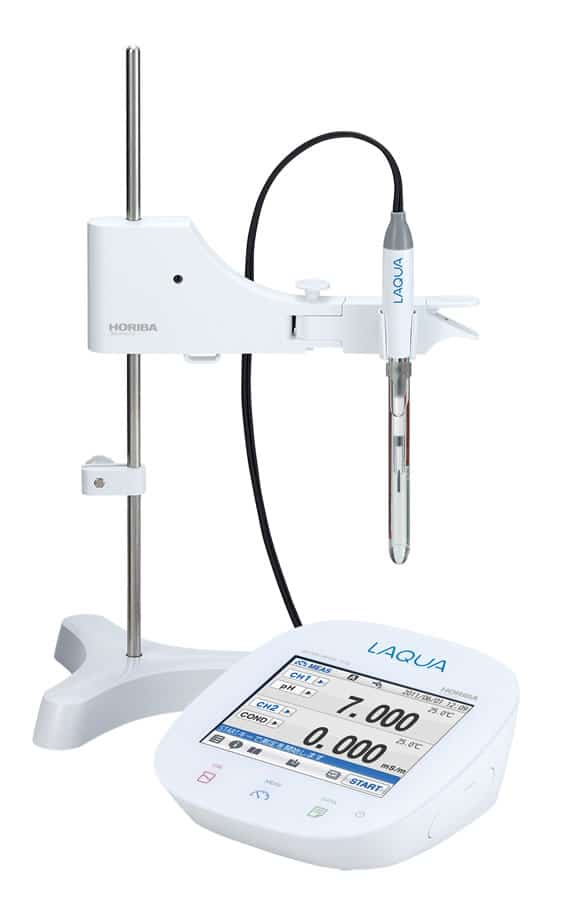

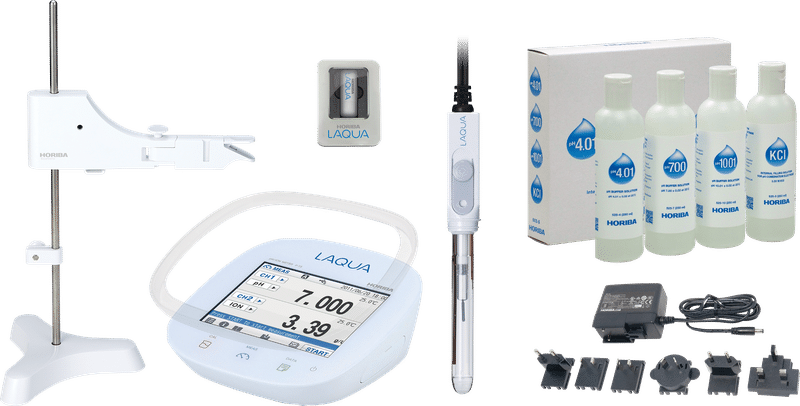

Meter Set
Supplied as F-73A-S pH/ORP/ION/Temp Meter Set, 2 channel with colour touch screen which includes electrode stand, Â pH/temp electrode (9615-10D), pH4/7/10 calibration solns and pH electrode filling soln.
Also known as:
pH meter, benchtop pH meter, bench pH meter, lab pH meter, laboratory pH meter, HORIBA pH meter, Laqua pH meter, pH ORP meter, benchtop pH ORP meter, HORIBA pH ORP meter, pH ion meter, pH ISE meter
|
Â
|
F-73
|
|
pH
|
Measurement method
|
Galass electorode method
|
|
Measurement range
|
pH 0.000～14.000
|
|
Display range
|
pH -2.000～20.000
|
|
Resolution
|
0.01/0.001 pH
|
|
Auto range select
|
✓
|
|
Repeatability
|
±0.001 pH±1 digit
|
|
pH calibration point
|
5
|
|
Repeatability check
|
✓
|
|
Alarm limit of calibration
|
✓
|
|
Periodical check
|
✓
|
|
mV(ORP)
|
Measurement range
|
±1999.9 mV
|
|
Resolution
|
0.1 mV
|
|
Repeatability
|
±0.1 mV±1 digit
|
|
Temperature
|
Measurement range
|
0.0～100.0℃(-30.0～130.0℃）
|
|
Resolution
|
0.1℃
|
|
Repeatability
|
±0.1℃±1 digit
|
|
ION
|
Measurement method
|
Ion electrode method
|
|
Measurement range
|
0.00 μg/L～999 g/L (mol/L)
|
|
Resolution
|
Valid numbers 3 digits
|
|
Repeatability
|
±0.5% ±1 digit
|
|
Periodical check
|
✓
|
|
Calibration curve point
|
5
|
|
Addition method measurement
|
✓
|
|
Input/output
|
Input(CH)
|
2
|
|
USB peripherals
(Communication with PC)*1
|
✓
|
|
USB host（USB memory)
|
✓
|
|
RS-232C(Printer/PC)
|
✓
|
|
Analog out put
|
✓
|
|
Data
|
Memory number
|
2,000
|
|
Interval memory
|
✓
|
|
ID input
|
✓
|
|
Data search
|
✓
|
|
Display
|
Display
|
Color graphic LCD with capacitive Touch Panel
|
|
Dual component display
|
✓
|
|
Multilanguage display
|
Japanese/English/Chinese/Korean
|
|
Function
|
Navigation function
|
✓
|
|
|
User gide
|
✓
|
|
Graf display
|
✓
|
|
Printer connectivity（GLP/GMP）
|
✓
|
|
Custom printing function
|
✓
|
|
temperature compensation（Auto/manual)
|
✓
|
|
AutoHold function
|
✓
|
|
AutoHold setting
|
✓
|
|
Stability function (pH/ION)
|
✓
|
|
Register operator
|
✓
|
|
Security(pass word）
|
✓
|
|
Version up function
|
✓
|
|
Ambient temperature
|
0 ℃ ～ 45℃
|
|
Power
|
AC adaptor 100 ～ 240 V 50/60 Hz
|
|
Demensions
|
170(W)×174(D)×73(H)mm(Excluding electrode stand and AC adaptor)
|
|
Power consumption
|
Approx. 9.8 VA
|
|
Mass of main unit
|
Approx .700 g
|
*1 USB cable sold separately. Software can be download by web registration.
