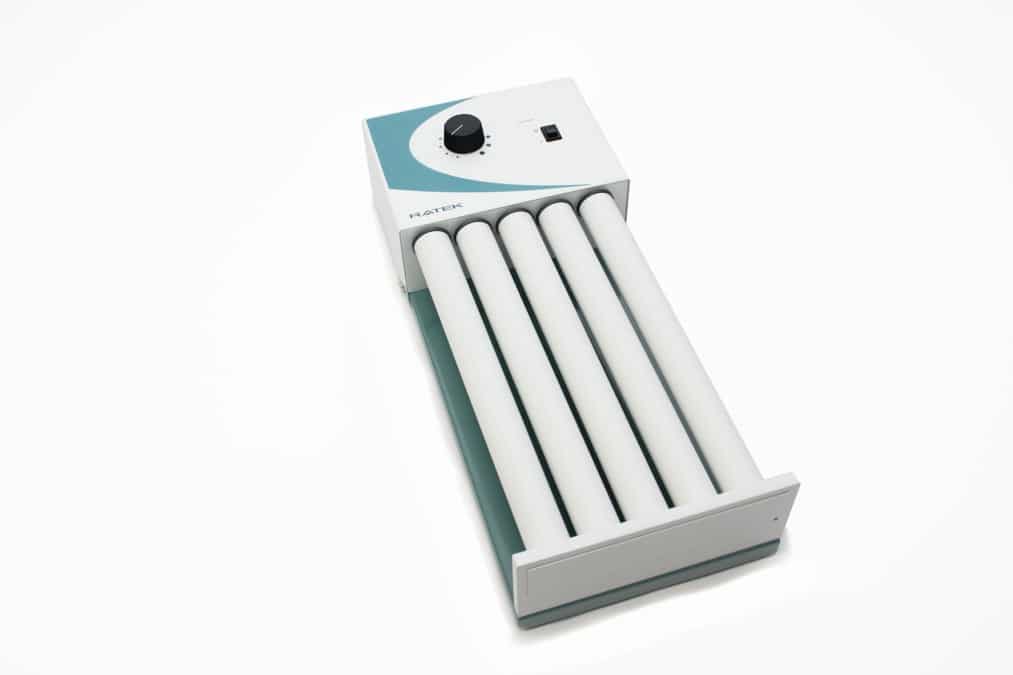

5 Roller Tube Roller Mixer, Model No – BTR5-12V

$1,507.00 ex GST

Contact Us For Availability Prior To Purchase

SKU: BTR5-12V Category:

Product Description

The Australian Made roller mixers can accommodate a range of different vials, small bottles, and test tubes of various sizes. Each pair of rollers can hold up to 1 kilogram. As an example the BTR10 can hold up to 54 x 5ml blood tubes. The coated aluminium rollers are mounted on eccentric drive spindles to provide a rocking as well as rolling motion, ensuring a thorough mixing action. Parallel rollers can be specified, if preferred. Speed of the rollers is variable between 10 and 60 rpm. to cover a wide range of mixing requirements. The sprocket and chain drive, coupled with ball race roller mounting, will ensure smooth trouble free operation. Both the BTR5 and BTR10 mixers can run continuously for many hours unattended.

Applications
Ideal for applications such as the mixing of blood samples, viscous substances and liquid-solid suspensions where minimal aeration is required. Can also be used in aiding the de-frosting of samples.

Power Requirements: 12VDC

Control Type: Solid state with variable speed between 10 and 60rpm

Motor: 12 volt DC geared

Drive: Chain and sprockets

Rollers: 30mm diameter x 300mm long

Tilt: Angle 3.5° from horizontal (7° overall per revolution)

Overall Dimensions: L500 x W215 X H120

Weight: 5.0kg
