Conductivity Electrode Stainless Steel (Submersible Type) 9371-10D Low Conductivity, Distilled/Pure Water

$745.00 ex GST

Usually Stocked

Product Description

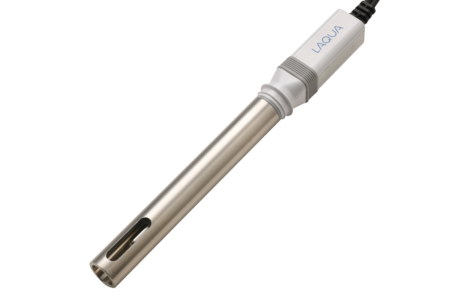

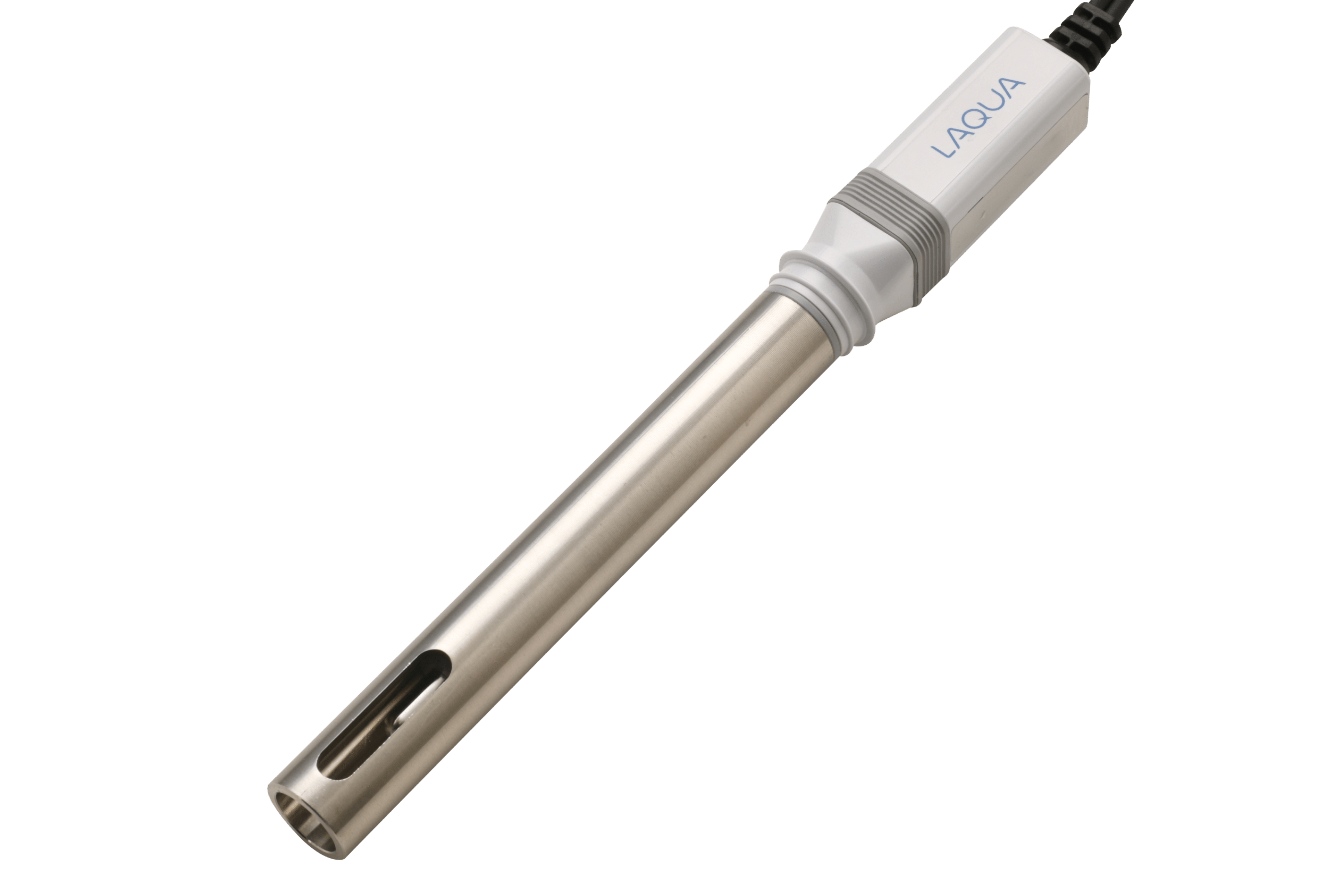

The new 9371-10D conductivity electrode is designed for low conductivity measurements including ultra-pure water applications. It has a robust stainless steel body with the measuring plates fitted snugly within. With a cell constant of k=0.1cm-1  it is able to measure  from 0.01uS/cm to 500uS/cm and can withstand temperature up to 100 degrees Celsius.

The 9371-10D electrode can be used with HORIBA benchtop EC (electrical conductivity) meters as well as portable EC meters from the D-70 Series, 100 Series and 200 Series. Simply change the cell constant setting on the meter to 0.1 when using the 9371-10D electrode.

OPTIONAL FLOW CELL

For measuring low conductivity samples, the optional glass flow cell (part no. 3200844642 ordered separately) can be attached to the 9371-10D conductivity electrode. The flow cell is particularly useful not only for continuous flow measurement but also for preventing the sample’s absorption of carbon dioxide from air that can affect the conductivity reading.

Cell constant (cm-1)

0.1

Measuring range

0.01 μS/cm to 500 uS/cm

Body Material

Stainless Steel

Temperature Sensor

Built-in

Temperature range(°C)

0-100

CLICK HERE FOR ASSEMBLING THE ELECTRODE

CLICK HERE FOR FILLING WITH INTERNAL SOLUTION

CLICK HERE FOR FILLING WITH INTERNAL SOLUTION SUFFICIENTLY

CLICK HERE FOR WHEN INTERNAL SOLUTION IS DISCHARGED TOO MUCH

CLICK HERE FOR RINSING THE ELECTRODE

CLICK HERE FOR REMOVING INTERNAL SOLUTION

CLICK HERE FOR CONNECTING THE ELECTRODE TO THE METER

CLICK HERE FOR SETTING STIRRER

CLICK HERE FOR PREPARING REFERENCE ELECTRODE

CLICK HERE FOR POLISHING THE ELECTRODE

CLICK HERE FOR ASSEMBLING THE ELECTRODE #2

CLICK HERE FOR REMOVING INTERNAL SOLUTION #2

CLICK HERE FOR RINSING THE ELECTRODE #2

CLICK HERE FOR REMOVING AIR BUBBLES
