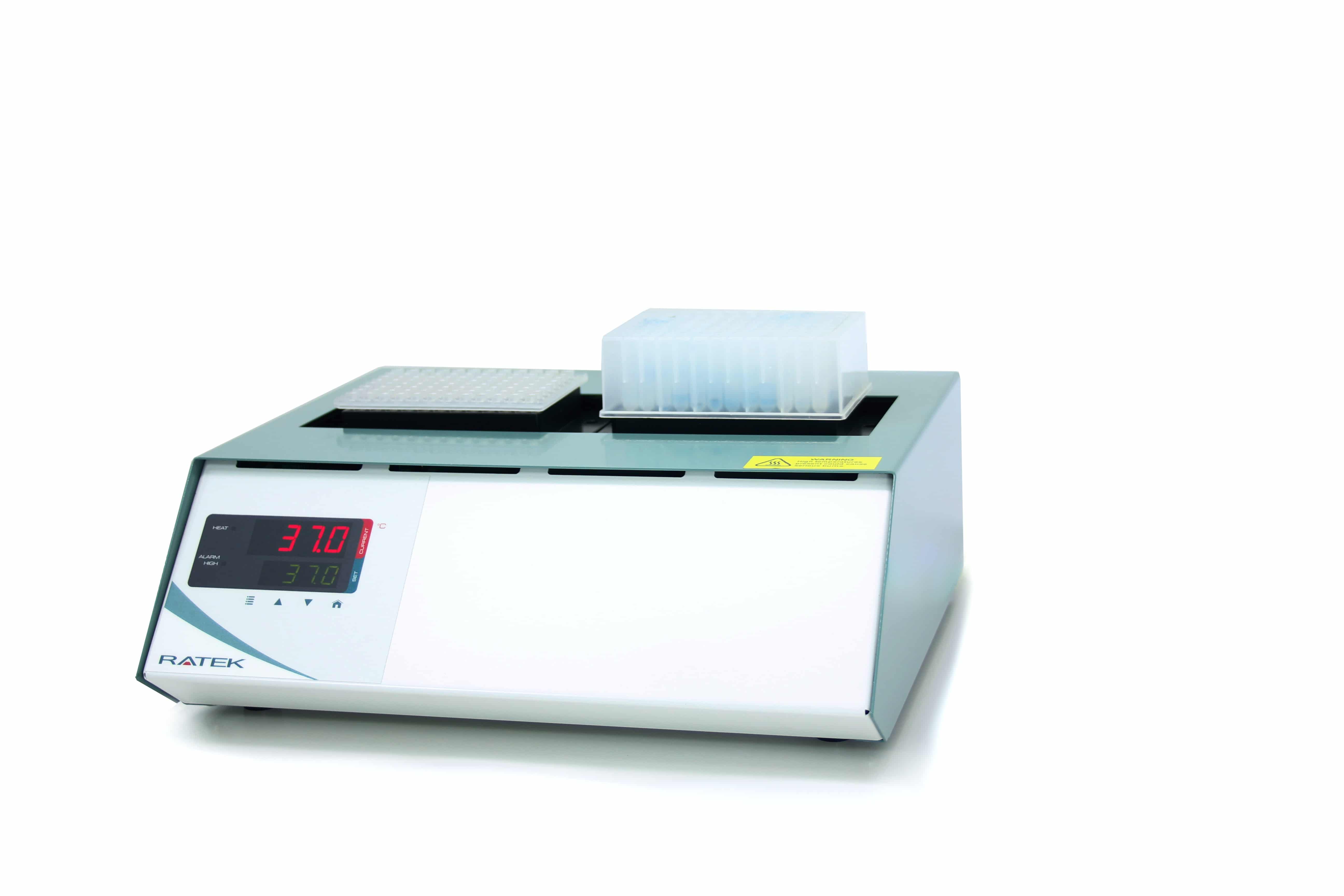

Dry Block Heater – 4 Block, Model No – DBH4000D

From: $1,291.00 ex GST

Usually ships in 3-5 days

Blocks to Suit Dry Block Heaters (Ratek)

Contact Us For Availability Prior To Purchase

SKU: DBH4000D Category:

Product Description


Ratek precision digital block heaters offer excellent temperature stability combined with a large active LED display for easy visibility from across the lab. Available in 3 sizes accommodating 1, 2 or 4 standard blocks, the DBHx000D range is the latest in Ratek’s long established history of quality Australian made block heaters.
All models feature precision digital PID control with bright dual line LED display which indicates set and current temperatures, combined with simple up and down temperature control buttons.  Independent concealed heaters heat each block individually to achieve rapid heat-up times and excellent spacial uniformity.

A user-configurable process over-temp audible and visual alarm also provides the user with peace of mind. Perhaps the best new feature in the range is the capability to operate at 5°C up to 200°C as standard, indicated in 0.1°C increments, allowing for a much wider range of digestion applications to be performed in addition to low temperature molecular and biological work.
Ratek’s most advanced block heaters to date offer simplicity with accuracy and can be run day in day out for any number of general lab applications.

Smart Safety Features

  • User configurable process over-temperature audible & visual alarm
  • Independent element safety cutout prevents element thermal runaway
  • Fail-safe over-current protection

Dry Block Heaters are used for applications such as the preservation of samples and reaction, enzyme digestions, enzyme activity studies, DNA amplification, incubation and activation of cultures, melting/boiling points and nucleid acid hybridisations.


Block positions *Blocks sold separately

Control type

Power input

Overall dimensions (mm)


1 x SB/EB/FB/VB block

Advanced Digital PID

240V AC/170W

W130 x D315 x H125


2 x SB/EB/FB/VB block OR 1 x MBx 96 well plate block

Advanced Digital PID

240V AC/335W

W205 x D315 x H125


4 x SB/EB/FB/VB block OR 1 x MBx 96 well plate block + 2 x SB/EB/FB/VB blocks OR 2 x MBx 96 well plate blocks

Advanced Digital PID

240V AC/665W

W353 x D315 x H125
