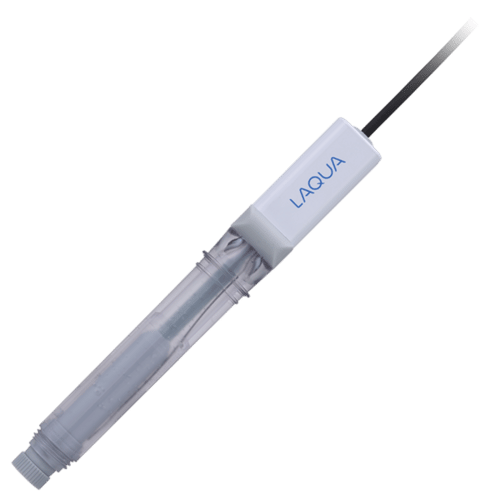

Fluoride Ion Electrode (combination) 6561S-10C Kit including: 1 Tip, Filling Solution, Calibration Solutions and TISAB

$1,295.00 ex GST

Usually ships in 21 days
SKU: 383293 Categories: , Tag:

Product Description

Ion-selective electrodes are responsive to concentration of particular ions in the test liquid and are variable-potential electrodes. They are used in conjunction with reference electrodes to measure the concentration of particular ions. HORIBA’S years of experience and know-how in this field are behind the wide range of ion electrodes we offer.

When measurements are made using an ion meter, calibrating it with various standard solutions will give direct readings of the ion concentration. Note that since volumes-detection level changes with temperature, measurements must be taken at a fixed temperature.

The electrode is supplied with:
*1000mg/L fluoride standard 50ml
*100mg/L fluoride ion standard 50ml
*Fluoride electrode filling soln 50ml
*Fluoride total ionic strength adjusting buffer (TISAB) 50ml

CLICK HERE FOR BROCHURE

MODEL

6561S-10C

Measurement Range

0.02 – 19,080 mg/L F–

Temperature Range

0 – 50°C

pH Range

pH 5 – 8 (0.1 – 1000 mg/L F–)

Accuracy

± 2%

Internal Electrode

Ag/AgCl

Internal Solution

3.3 mol/L KCl

Liquid Junction

Movable sleeve

Connector & Cable Length

BNC, 1m

Dimensions

150mm (length), 16.5mm (diameter)

Wetted Part Materials

LaF3, PSU

Slope

-53 to-62 mV/decade

Selection Coefficient

Possible interference when multiply-charged ion

(e.g., Al3+, Fe3+) coexisted and foamed the complex

Package Contents

Fluoride Ion Electrode Tip
1000 mg/L Fluoride Ion Standard Solution (50ml)
100 mg/L Fluoride Ion Standard Solution (50ml)
Fluoride Ionic Strength Adjustor (50ml)
Fluoride Ion Electrode Filling Solution (50ml)
Syringe
Dropper
Protective Pipe
Manual

Accessories and Solutions
7661S

Fluoride Ion Electrode Tip
500-F-IFS

Fluoride Ion Electrode Filling Solution (500ml)
500-F-SL

100 mg/L Fluoride Ion Standard Solution (500ml)
500-F-SH

1000 mg/L Fluoride Ion Standard Solution (500ml)
500-F-TISAB

Fluoride Ionic Strength Adjustor (500ml)
