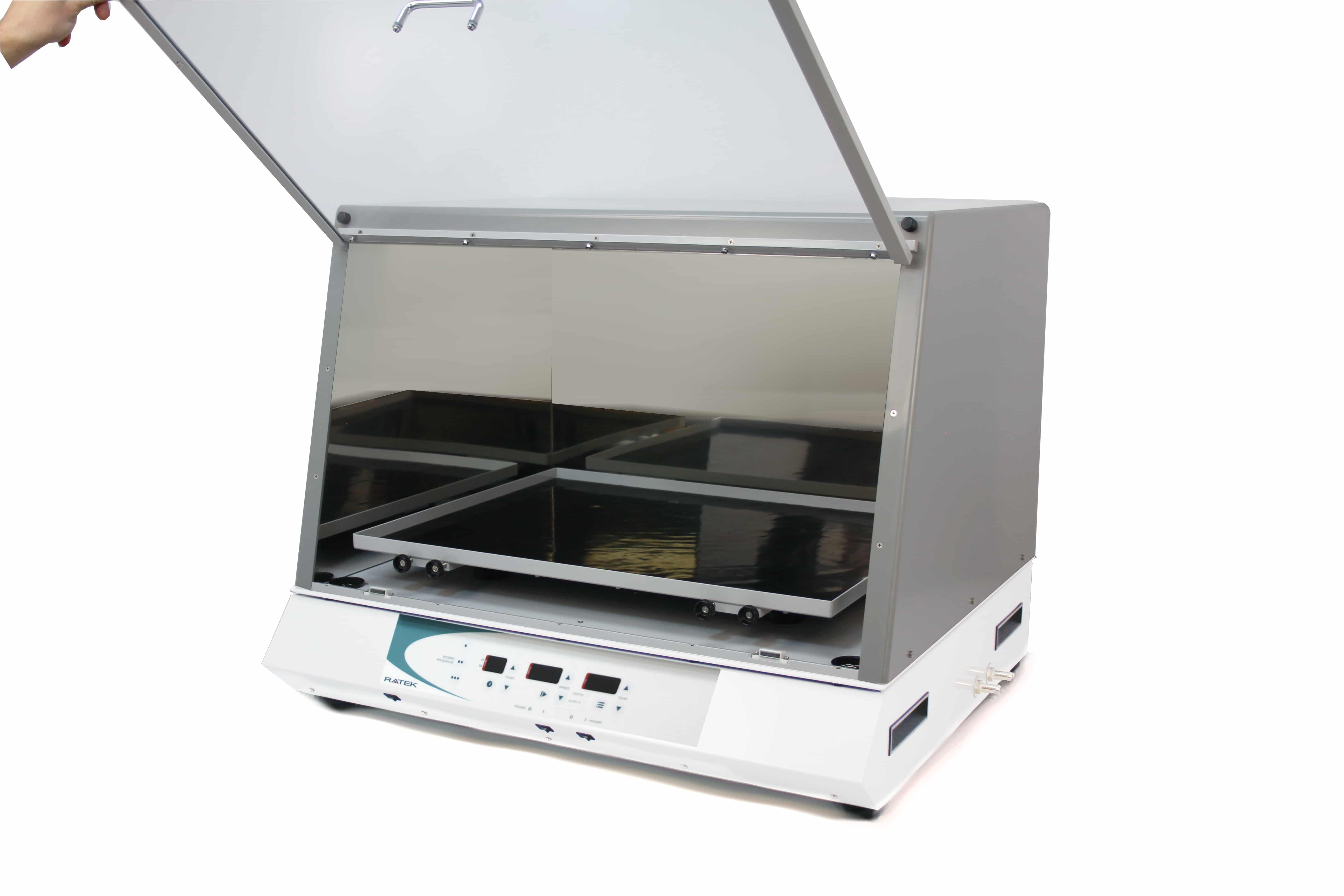

Product Description

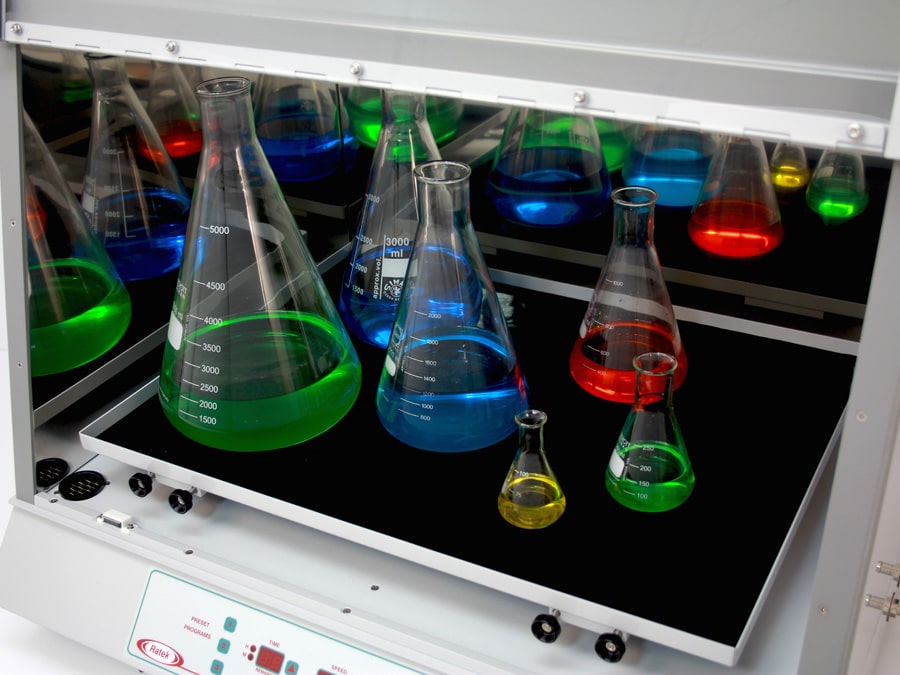

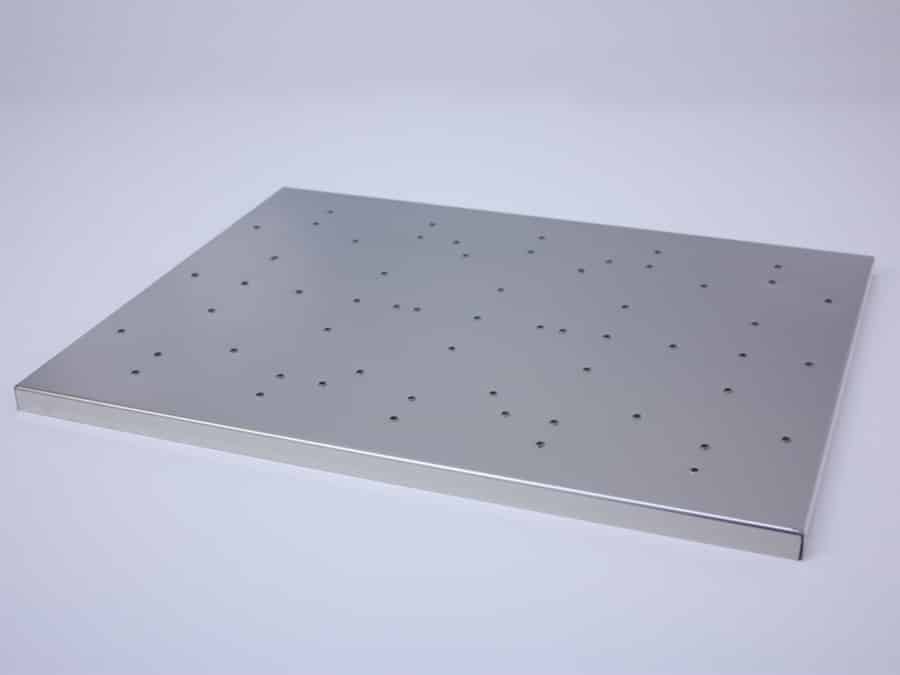

- 700 x 530mm orbital mixing platform

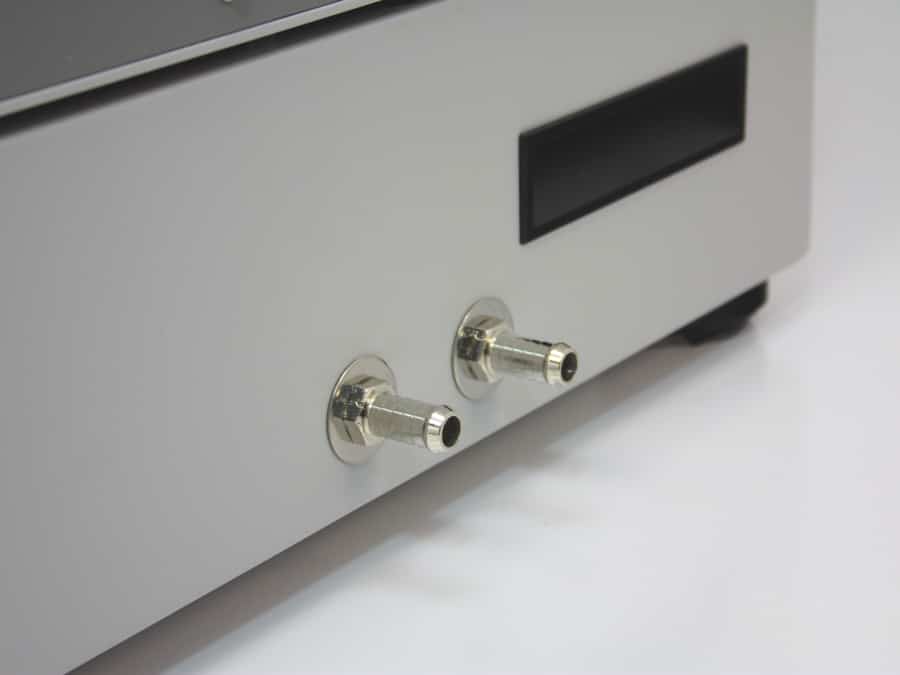

- Cold water heat exchanger for work below ambient

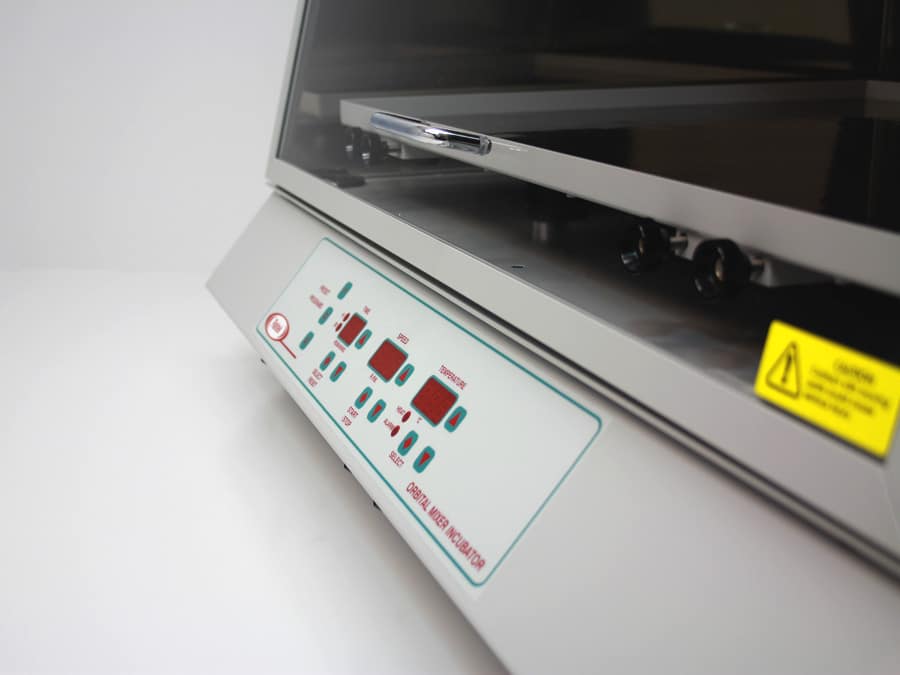

- Large LED digital temperature & speed display
- 3 x user-preset programs for speed & time
- Insulated cabinet for temperature stability
Specifications
Power requirements: 240 VAC/900 watts
Capacity: 700 x 530mm platform maximum capacity 15kg’s
Mixer control: Microprocessor control with digital indication of speed, temperature and run time
Motor: Brushless: ac
Speed range: 40-400 rpm through an orbit diameter of 25mm
Heater: Fan assisted spiral wound element
Control range: Ambient + 7°C to 75°C (can control below ambient with external supply of cooled water)
Control stability: ± 0.2ºC
Timer: 0-99 minutes or 0-99 hours with 3 presets
Safety features: Motion interrupt cutout, over temperature cutout, door open drive cutout
Overall dimensions: W850 x D720 x H680 mm
