Product Description

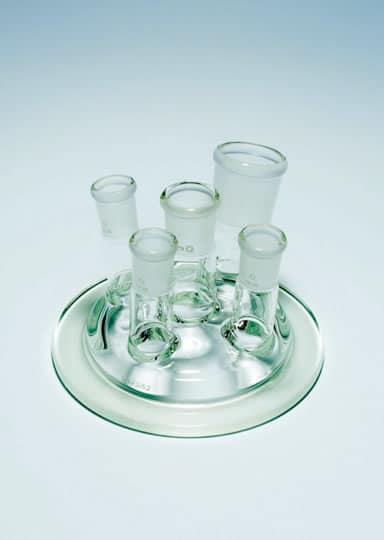

A series of multi-socket lids for use with the Quickfit range of wide neck reaction flasks and culture vessels. They allow introduction of a great variety of standard Quickfit equipment for stirring, temperature measurement, aeration and general distillation procedures. The parallel side neck can be fitted with a multiple adapter so that larger dropping funnels can be used. Lids with a single socket neck are of use where simple extraction, refluxing or mixing only are required.
| Part Number |
Flange bore mm |
Centre Socket |
Parallel socket |
5° |
Side sockets 10° |
15° |
| MAF2/32 |
100 |
19/26 |
19/26 |
24/29 |
19/26 |
– |
Clips for flanged flasks and lids
To fit vessels with flange bores as indicated.
JC75F For 75mm bore flanges
JC100F For 100mm bore flanges
