Dissolved Oxygen Meter Kit with pH, ORP, ION and Temp – LAQUA PD2000-S

Name: Dissolved Oxygen Meter Kit with pH, ORP, ION and Temp – LAQUA PD2000-S
SKU: PD2000-WS
Availability: InStock

$3,485.00 ex GST

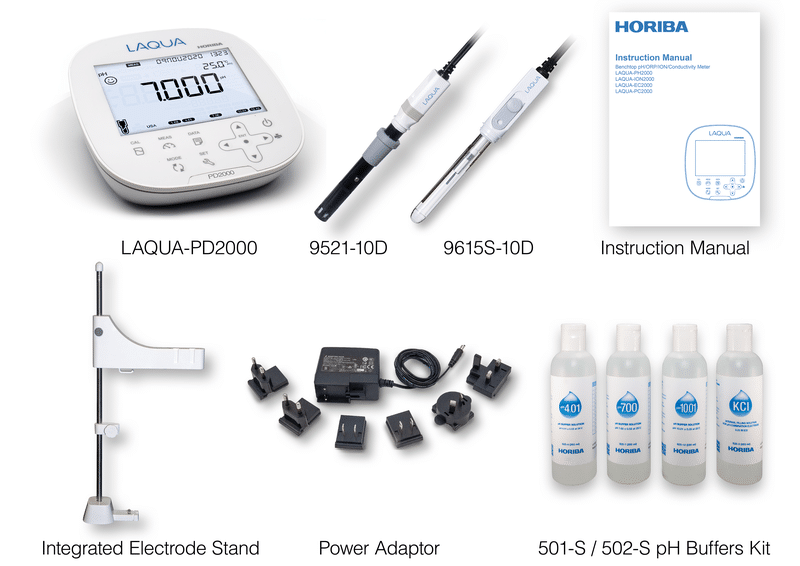

Includes 9521-10D Dissolved Oxygen/Temp Electrode, 9615S-10D pH/Temp ToupH Glass Refillable Electrode, pH Buffer Solutions, Electrode Stand and Power Adapter

Usually Ships in 4-6 Weeks

SKU: PD2000-WS Categories: Aquaculture, Dissolved Oxygen Bench Meters, Food and Beverage, Medical/Laboratory, Multiparameter Bench Meters

Product Description

Dissolved Oxygen with pH Water Quality Meter – Complete, Accurate, and Ready for Any Task

Designed for laboratories, environmental monitoring, and industrial applications, this advanced Dissolved Oxygen & pH bench meter offers powerful performance in a compact, user-friendly package. With high-resolution measurements for pH, Ion, ORP, DO, BOD, and temperature, it’s built to deliver accurate, reliable data across a wide range of testing scenarios. Whether you’re calibrating for precision, logging data for traceability, or monitoring complex water systems, this meter provides the flexibility, connectivity, and confidence professionals expect.

Key Features:

pH Measurement:
- pH Range: -2.000 to 20.000
- pH Resolutions: 0.1, 0.01, & 0.001
- pH Buffer Groups: USA, NIST, NIST2, DIN, and Custom
- Up to 6 pH Calibration Points
- Offset, Segment, and Average Slopes Data after pH Calibration
- Adjustable Calibration Alarm up to 90 days
Ion/ORP Measurement:
- -2000.0 to +2000.0 mV Range with ORP Calibration Option
- 0.000 μg/L to 9999 g/L Ion Range with 3 Selectable Units
- Up to 5 User-Defined Ion Calibration Points
- Segment and Average Slopes Data after Ion Calibration
Dissolved Oxygen (DO) and Biochemical Oxygen Demand (BOD) Measurement:
- Up to 60.00 mg/L / 600.0% DO Range
- Compensation for Salinity, Atmospheric Pressure, and Temperature Effects in DO
- Pre-programmed 5-Day BOD Method with Seed Correction Option
- Up to 2 DO Calibration Points
- Compatible with Galvanic DO Electrodes
Temperature Range:
- -30.0 to 130.0°C / -22.0 to 266.0°F with Calibration Option
Measurement Modes:
- Auto Stable, Auto Hold, and Real-Time Measurement Modes
Indicators:
- Electrode Status, Temperature, and Reading Stability Indicators Viewable at a Glance
Data Storage and Logging:
- Large Memory Accepting up to 2000 Data Sets with Date/Time Stamp
- Auto Data Log Function with Adjustable Time Interval
Time-Related Functions:
- Real-Time Clock Facilitating Time-Dependent Functions
- Adjustable Auto Shut-Off Time up to 30 mins.
Security and Connectivity:
- Password-Protected Set-Up Mode for Security
- Software Upgrade Capability
- PC Communication via USB Cable and Complimentary DAS20 Data Acquisition Software
- Printer Communication via RS232 Cable
Display and Design:
- 5” Digital, Custom LCD Display with Backlight
- Sleek Design with Easy-to-Use Interface and Audible Key Sound Feedback
- Small Meter Footprint with Adjustable, Integrated Electrode Stand
Warranty:
- 3 Years for Added Assurance

Model

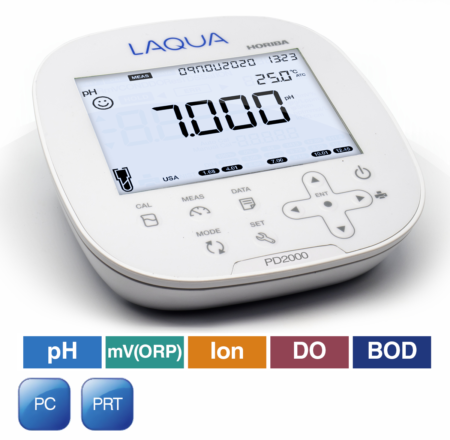

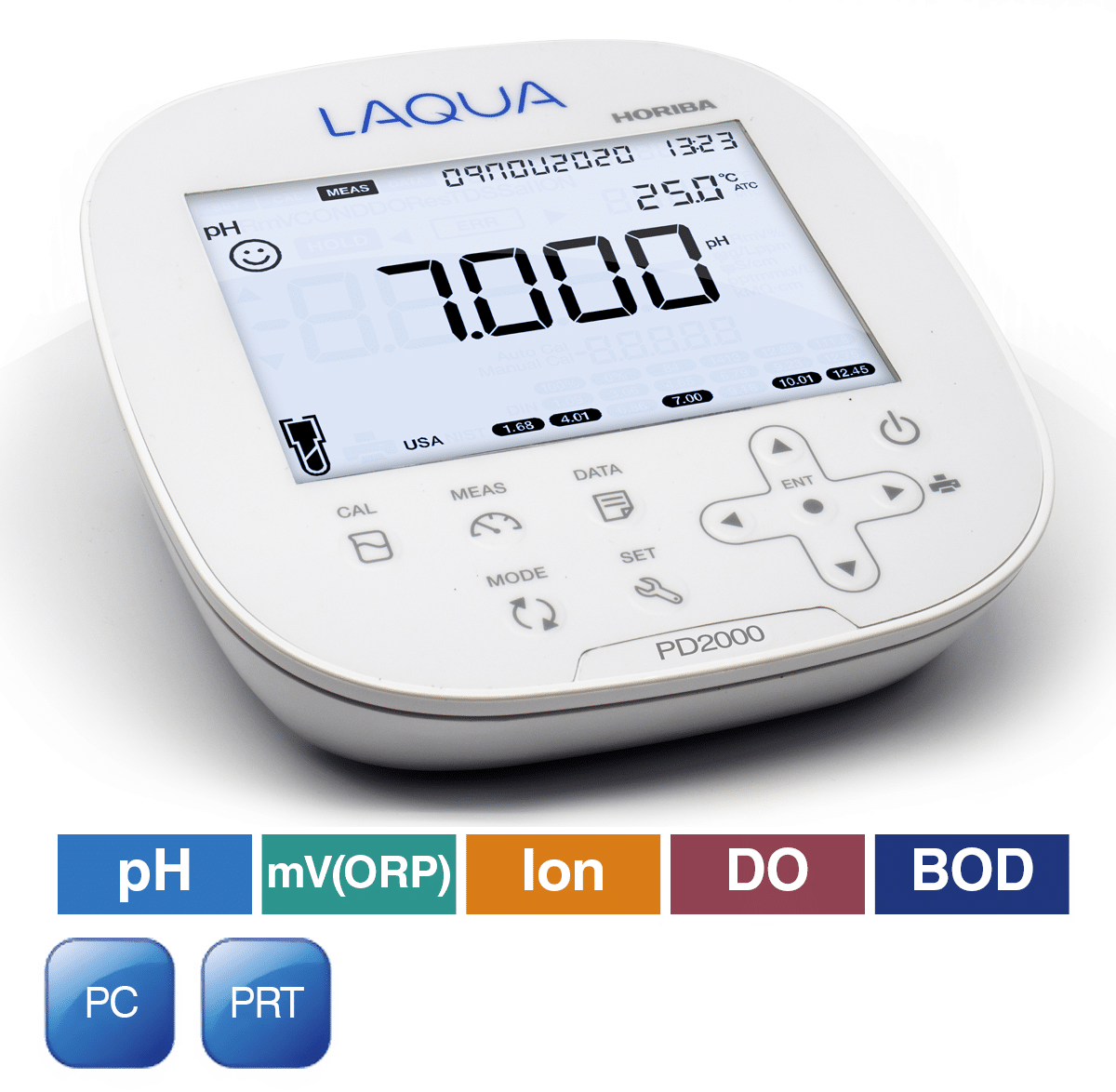

LAQUA-PD2000

pH/ORP/Ion/DO/BOD/Temperature (°C/°F)

pH Range -2.000 to 20.000 pH
Resolution 0.1 / 0.01 / 0.001 pH
Accuracy ± 0.003 pH
pH Buffer Groups USA, NIST, NIST2, DIN, Custom
Calibration Points Up to 5 (USA, NIST, NIST2) / Up to 6 (DIN, Custom)
ORP Range ± 2000.0 mV
Resolution 0.1 mV
Accuracy ± 0.2 mV
Calibration Option Yes (Up to ± 200 mV)
Ion Range 0.000 µg/L to 9999 g/L
Units µg/L ↔ mg/L ↔ g/L, ppm ↔ ppt, mmol/L ↔ mol/L
Resolution 4 Significant digits
Accuracy ± 0.3% full scale or ± 0.2 mV, whichever is higher
Calibration Points Up to 5
DO Range 0.0 to 60.00 mg/L, 0.0 to 600.0%
Resolution 0.01 mg/L, 0.1%
Accuracy +/- 0.1 mg/L , +/- 1.0%
Salinity Compensation 0.0 to 40.0 ppt
Barometric Pressure Compensation 10.0 to 200.0 kPa
BOD Measurement 5-day BOD with seed correction option
DO Probe Type Galvanic integrated with temperature sensor
Calibration Points Up to 2
Temperature Range -30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution 0.1 °C / °F
Accuracy ± 0.5 °C / ± 0.9 °F
Calibration Option Yes (± 10.0 °C / ± 18.0 °F range in 0.1 °C increments)
Memory 2000
Auto Data Log Yes
Real-time Clock Yes
Date & Time Stamp Yes
Measurement Modes Auto Stable / Auto Hold / Real Time
Offset & Slope Display Yes (Segment & Average Slopes)
Calibration Alarm Yes (Programmable: up to 90 days)
Auto Shut-Off Yes (Programmable: up to 30 mins.)
Electrode Status On screen display
Diagnostics Yes
Password Setting Yes
Software Upgrade Yes
PC / Printer Communication Phono jack (USB / RS232C)
Meter Inputs 2 x BNC, 2 x phono (ATC), DC sockets
Display 5″ Custom LCD with 320 segments and backlight
Power Requirement AC adaptor 100 – 240V, 50 – 60Hz
Dimensions & Weight 155(L) x 150(W) x 67(H) mm, 770g
