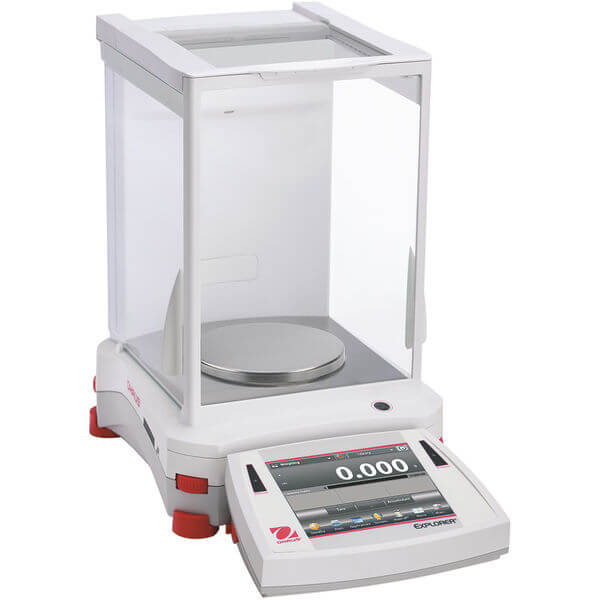

Precision Balance 420g x 0.001g OHAUS Explorer Series EX423

$4,405.50 ex GST

Automatic Internal Calibration, Full Colour Touchscreen Display & Draftshield

Contact Us For Availability Prior To Purchase

Product Description

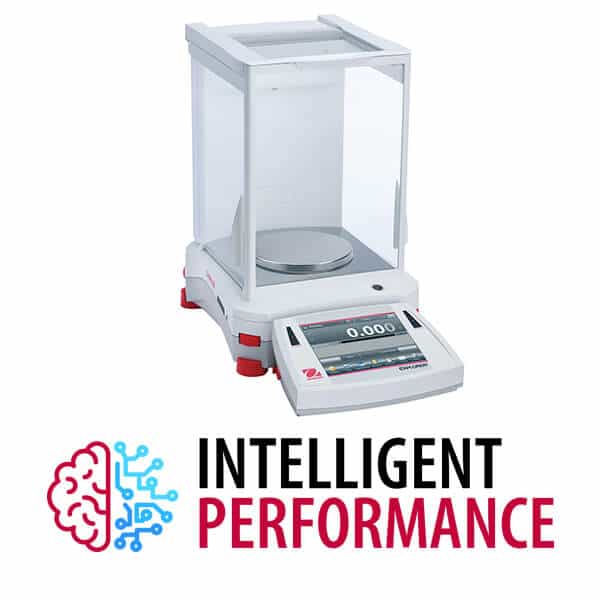

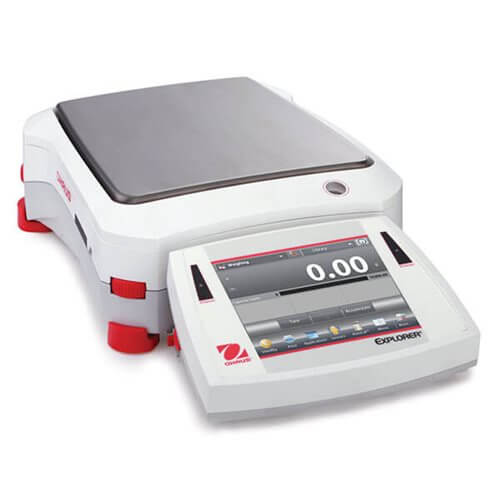

OHAUS Explorer Series Balances

Flagship Performance for Demanding Applications:

OHAUS Explorer Series represents the pinnacle of balance technology. Designed to simplify even the most complex laboratory and industrial weighing tasks. With precision-machined components, intelligent automation, and an intuitive touchscreen interface, Explorer balances deliver exceptional accuracy, operational efficiency, and regulatory compliance in one advanced package.

Key Features & Benefits:

Unmatched Weighing Performance

At the heart of every Explorer is a precision-machined, solid metal weighing cell for long-term accuracy and durability. Models offer capacities up to 35 kg with readabilities from 0.1 mg to 0.1 g. OHAUS AutoCal™ automatic internal calibration ensures consistent results without the need for manual intervention. A built-in repeatability test helps determine the minimum sample weight for high-precision applications.

Smart, Secure User Management

Designed for regulated environments, Explorer includes a four-level user access system, password protection, and non-editable system and calibration logs. Administrators can create up to 110 users and assign roles with specific access rights, ensuring data integrity in multi-user settings.

Advanced Data Handling & Connectivity

Store and manage data with internal databases and a weighing mode library. Export logs via USB in non-editable PDF format, backed by a built-in real-time clock for GLP/GMP compliance. Easily connect to PCs, printers, RFID readers, and barcode scanners through RS-232, USB, and Ethernet ports.

Innovative Touchscreen Interface

A large, color graphic touchscreen makes it easy to access all 14 application modes and system features. Operable with gloves, the screen is supported by six mechanical keys for quick repetitive actions like tare and print. Operates in up to 14 languages.

Touchless Sensor Technology

Up to four programmable infrared sensors allow hands-free operation of functions like zero, tare, print, and even opening draftshield doors—helping to reduce contamination and improve workflow efficiency.

Ingenious Draftshield Design (Analytical Models)

The frameless glass draftshield features top-mounted sliding side doors, antistatic-coated panels, and a dual-access top door for effortless access. Select models include motorized doors activated by touchless sensors, ideal for minimizing sample handling errors. The spacious chamber accommodates large vessels, and all components are easy to clean.

Built to Last

Durable metal base, stainless steel pan, and a robust ABS housing ensure long-term performance in laboratory and industrial environments. Includes a weigh-below hook, calibration lock, security bracket, and full housing in-use cover.

View more OHAUS Balances HERE

Maximum Capacity 420 g
Readability 1 mg
Pan Size 5.1 in (130 mm)
Internal Calibration AutoCal™ – Automatic
Draftshield Included

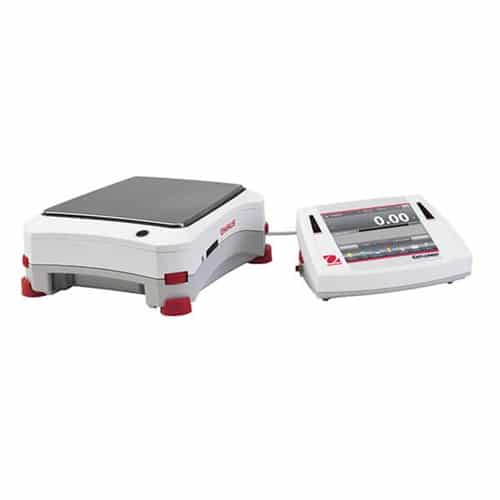

Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Communication Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
Dimensions 15.5 in x 13.8 in x 9.1 in (393 mm x 350 mm x 230 mm) (LxHxW)
Display Full-color 5.7 in VGA, touch screen
Inuse cover Included
Legal for Trade Not applicable
Linearity ± 0.002 g
Minimum Weight (USP, 0.1%, typical) 1.6 g
Net Weight 15.2 lb (6.9 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.001 g
Stabilization Time 1 s
Tare Range To capacity by subtraction
Units of Measurement Singapore Tael; Ounce Troy; Pennyweight; Grain; Kilogram; Tical; Custom; Milligram; Momme; Newton; Baht; Taiwan Tael; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce
Working Environment 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
