Orbital Shaker Tray Size 500 x 500mm, Speed Range 40rpm – 400rpm Digital, Model No – OM7

From: $3,451.00 ex GST

Adhesive Mat Tray to Suit OM7 (Large Mixer) Model No - AT7

Universal Rack to Suit OM7 (Large Mixers) Model No - RR7

Tulip Clip Tray For Large Mixers - To Suit OM7, Model No - TCT7

Contact Us For Availability Prior To Purchase

SKU: OM7 Category:

Product Description

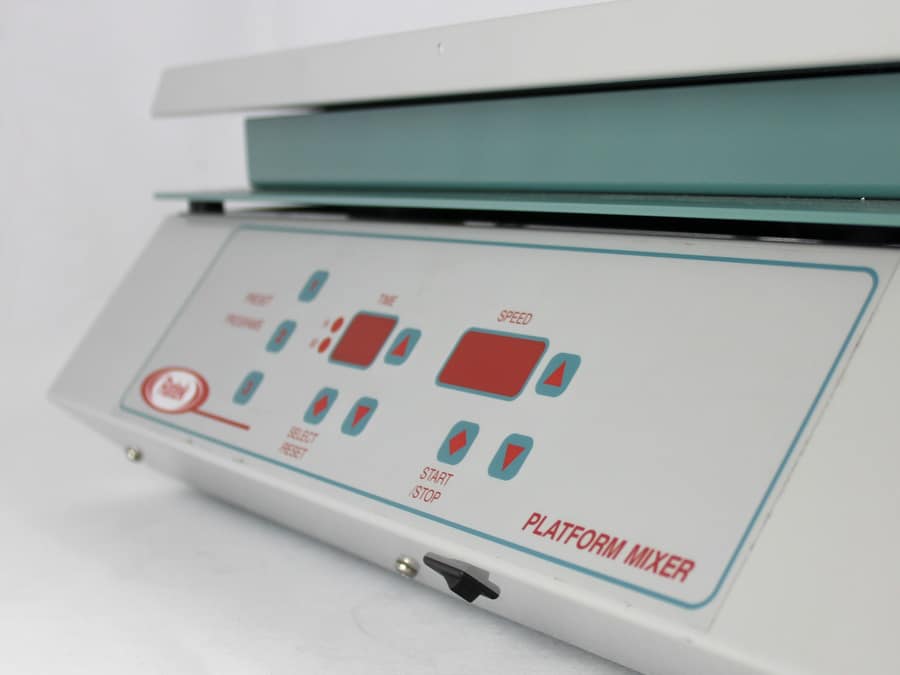

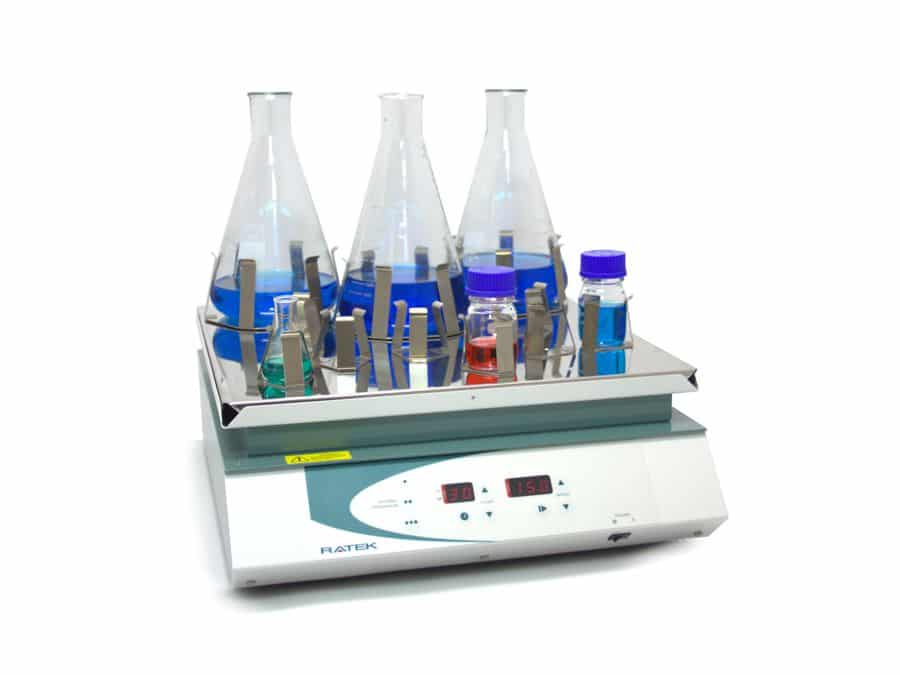

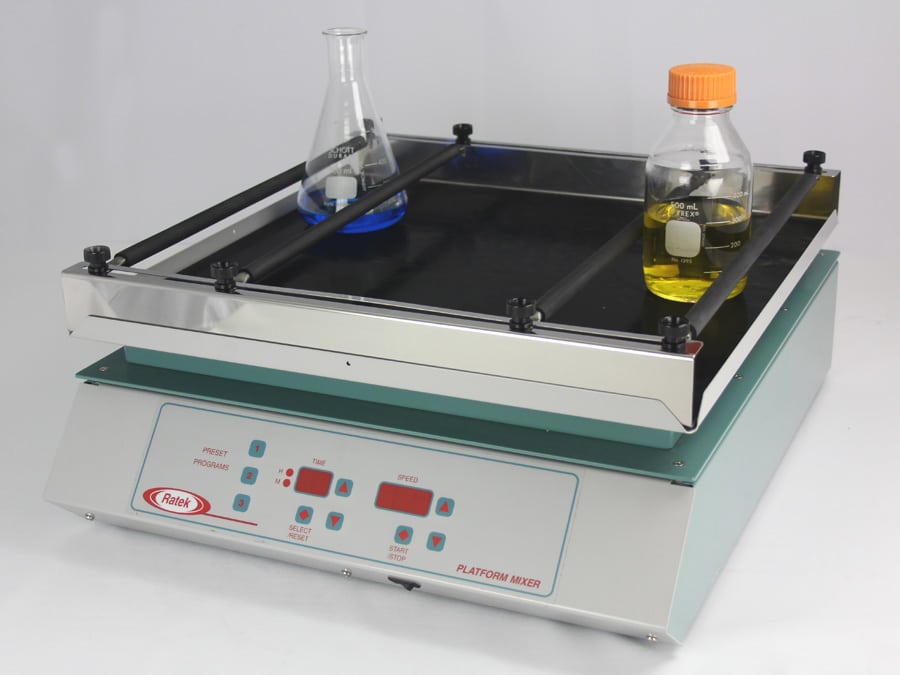

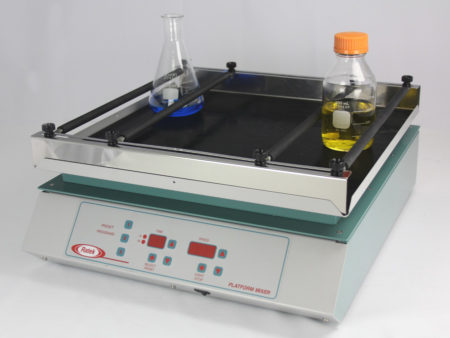

The Australian Made OM7 orbital mixer has a 500mm square platform supported by precision ball races and can handle loads up to 25 kg’s, it is suitable for use in many applications including medical diagnostics, sample preparation, product testing etc. The digital speed control has a range of 30-400 RPM and is controlled from the easy to read front panel where a large LED display can show set and actual speed when required the OM7 can run for extended periods unattended. Slow acceleration is incorporated in the drive system to help protect samples and reduce the risk of spillage. The timer can be set from 0-99 in either minutes or hours, in addition, the OM7 has 3 memory buttons to allow repeat time/speed functions to be stored. A Nitrile mat is supplied fitted to the platform and is sufficient for holding containers at low speeds. For higher speeds optional racks are available.

Applications
Applications include general mixing, cell culturing, solubility studies, diagnostic testing, bacterial suspensions, extraction procedures, staining/destaining, washing procedures as well as many other biological and chemical tasks.

Power Requirements: 240 VAC/100 watts

Capacity: 500 x 500mm platform maxium capacity 25kg

Mixer Control: Microprocessor control with digital tachometer

Motor: Brushless ac

Speed Range: 40-400rpm through orbit diameter of 25mm

Timer: 0-99 minutes or 0-99 hours with 3 presets

Safety Features: Motion interrupt cut out, integrated spill tray

Overall Dimensions: W505 x D570 x H180mm

Weight: 20kg
