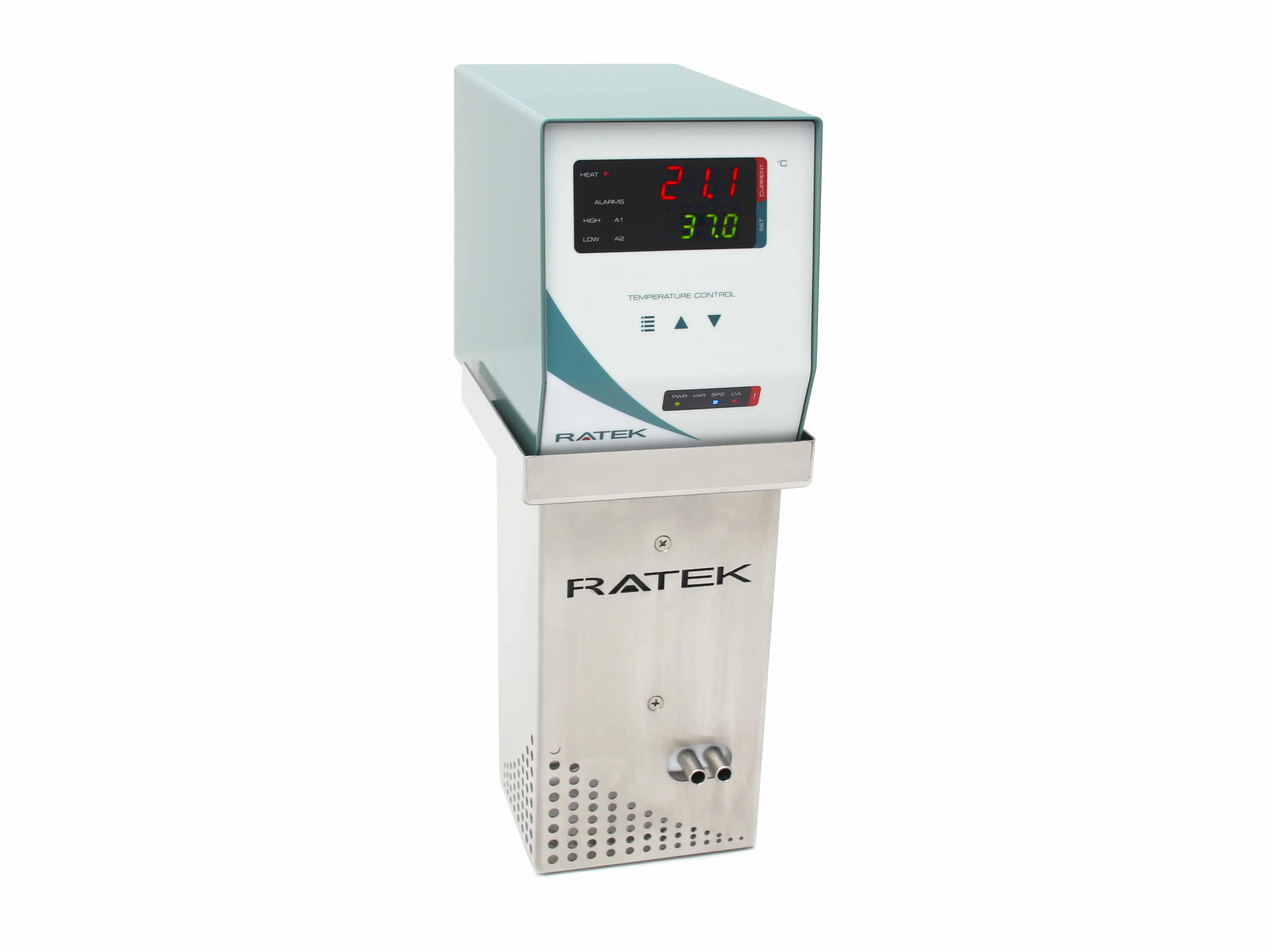

Precision Immersion Circulator with Pump – Temp Range Ambient + 7° to 100.0°C min -30°C. 1kW, Model No – TH8000

Temperature Control Advanced digital PID with fuzzy logic
Circulation Type High-flow dual outlet pump with adjustable flow rate, 0-17 L/min at zero head
Digital Display Type Dual-line active bright LED
Information Display
– Current & set temp displayed concurrently
– Over & under temp alarm set-point
– SP2 preset set-point
– Low water level indicator
– Heating indicator
– Operating mode indicator
– 0.1° resolution
Temperature Control Range -30°C to 100.0°C, (external cooling required for ambient +7ºC or less)
Control Stability +/- 0.02°C in Ratek insulated water bath with lid
Heating Power 1,000 Watts
Minimum Tank Depth 200 mm
Motor and drive type Silent long life brushless AC
Alarm
– Audible & visual over-temp with cut-out
– Audible & visual low level with cut-out
– Visual under-temp indicator
Safety features
– Resettable safety thermostat
– Low water level cut-out
– Over-temp cut-out
– Over-current protection
– Fully enclosed element guard
Power input 240 VAC / 50-60 Hz
Overall dimensions Overall dimensions W125 x D190 x H360mm
Nett weight 4.9 kg
