Analytical Balance 120g x 0.01mg & 220g x 0.1mg OHAUS Explorer Series EX225D*

$7,728.50 ex GST

Semi-Micro Automatic Internal Calibration, *Dual Range, Full Colour Touch Screen & Draftshield

Product Description

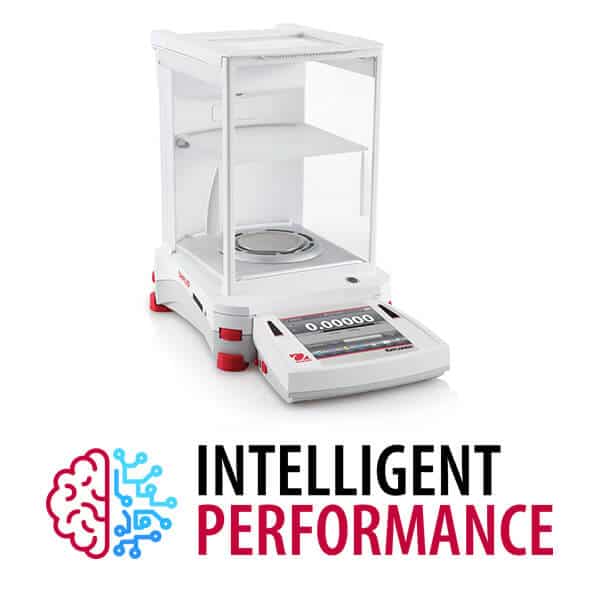

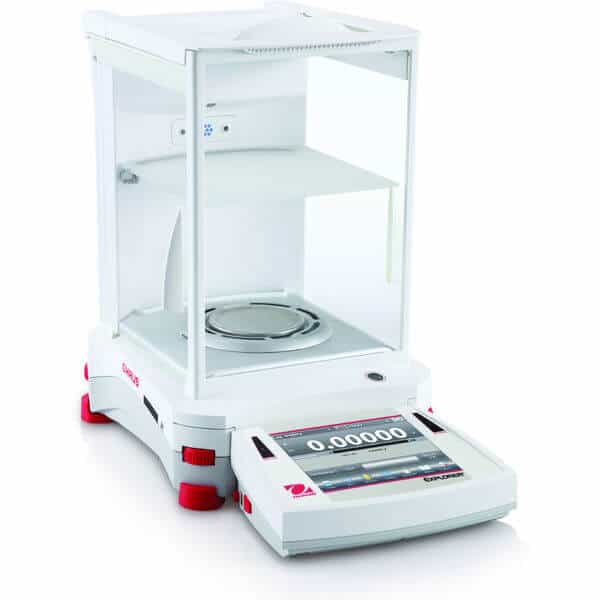

OHAUS Explorer Semi-Micro Balances

OHAUS high precision balance Explorer series is designed for professionals who demand exceptional accuracy, reliability, and regulatory compliance in both laboratory and industrial settings. With capacities ranging from 52g to 220g and readability down to 0.01mg. Explorer semi-micro balances deliver intelligent performance for the most demanding weighing tasks.

Key Features & Benefits

  • High-Precision Weighing Cell:
    Engineered from a solid metal block and paired with OHAUS’ advanced AutoCal™ automatic calibration system. The Explorer ensures consistent accuracy and durability, reducing the need for manual calibration and minimizing measurement uncertainty.

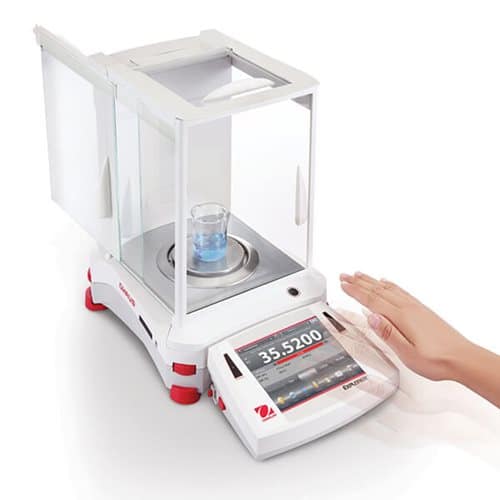

  • User-Friendly Design:
    A detachable terminal with a large color touchscreen, customizable IR sensors, optional built-in ionizer, automatic doors, and frameless draftshield offer unmatched ease of use and ergonomics.

  • Built for Regulated Environments:
    Four-level user management with password protection. Uneditable system logs, and extensive configurability make Explorer balances ideal for regulated applications where traceability and compliance are essential.

  • Advanced Data Management:
    Internal databases allow users to store and manage data with ease. A system log tracks up to 5,000 events, while a calibration log provides a clear history of usage. Both logs can be exported as non-editable PDFs via USB for audit-ready documentation.

  • Connectivity Made Simple:
    Equipped with RS-232, USB, and Ethernet ports, the Explorer seamlessly integrates with accessories like printers, barcode scanners, and RFID readers, and can easily connect to PCs or larger systems.

  • Built-In Performance Testing:
    A repeatability test helps users determine minimum sample weights and evaluate balance performance—ideal for high-accuracy applications.

High Precision Balance – Precision, Performance, and Compliance – All in One

View more OHAUS Balances HERE



Maximum Capacity 120 g/220 g
Readability 0.01 mg; 0.1 mg
Pan Size 3.14 in (80 mm)
Internal Calibration AutoCal™ – Automatic
Draftshield Included
Auto Door Not Applicable
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Built-in Ionizer No
Communication Ethernet (Available as an Accessory); USB (Included); RS232 (Included); USB Host
Dimensions 15.5 in x 13.8 in x 9.1 in (393 mm x 350 mm x 230 mm) (LxHxW)
Display Full-color 5.7 in VGA, touch screen
Inuse cover Included
Legal for Trade No
Linearity ± 0.1 mg
Minimum Weight (USP, 0.1%, typical) 20 mg
Net Weight 7 kg
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.015 mg
Stabilization Time 8 s
Tare Range To capacity by subtraction
Units of Measurement Ounce Troy; Pennyweight; Momme; Gram; Kilogram; Grain; Tola; Tical; Mesghal; Carat; Ounce; Custom
Working Environment 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
