Product Description
- Explorer’s weighing cells precision-machined from a solid metal block, together with AutoCalTM provides exceptional accuracy and durability suitable for laboratory and industrial environments.
- Features such as four-level user management with password protection, and un-editable system log plus a high level of configurability make Explorer balances well suited for regulated applications.

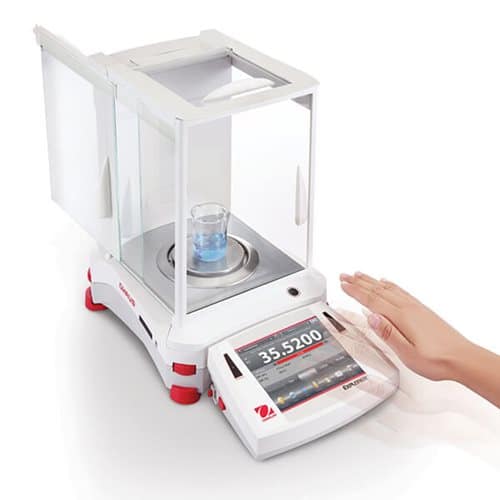

- A detachable terminal with a large color touchscreen, programmable IR sensors, optional built-in Ionizer & automatic doors, and a frameless draftshield make Explorer balances easy & convenient to use.
Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Pipette Adjustment, SQC
Full-color VGA graphic display (5.7 in. diagonal), 4-wire resistive touch screen. QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data
AC Adapter (Included)
Easy access communication ports including 2 units of USB port and RS232 and an optional fourth port of either RS232 or Ethernet. GLP/GMP Data Ouput with Real Time Clock. Data Transfer Function.
Metal base, ABS top housing, stainless steel pan,anti-static glass draftshield with flip-top door, replaceable in-use cover, automatic door as option models
AutoCal™ fully-automatic internal calibration system, fast stabilization time, four touchless sensors, built-in ionizer with automatic door models, up to 14 operating languages, OIML models available, SAVE to USB function, menu lock switch, security bracket, integral weigh below hook for below balance weighing applications, removable stainless steel weighing platform, stability indicator, overload and underload indicators, auto standby.
Maximum Capacity 120 g/220 g
Readability 0.01 mg; 0.1 mg
Pan Size 3.14 in (80 mm)
Internal Calibration AutoCal™ – Automatic
Draftshield Included
Auto Door Not Applicable
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Built-in Ionizer No
Communication Ethernet (Available as an Accessory); USB (Included); RS232 (Included); USB Host
Dimensions 15.5 in x 13.8 in x 9.1 in (393 mm x 350 mm x 230 mm) (LxHxW)
Display Full-color 5.7 in VGA, touch screen
Inuse cover Included
Legal for Trade No
Linearity ± 0.1 mg
Minimum Weight (USP, 0.1%, typical) 20 mg
Net Weight 7 kg
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.015 mg
Stabilization Time 8 s
Tare Range To capacity by subtraction
Units of Measurement Ounce Troy; Pennyweight; Momme; Gram; Kilogram; Grain; Tola; Tical; Mesghal; Carat; Ounce; Custom
Working Environment 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
