Vortex Mixer Model – VM1

Contact Us For a Quote

Speed Range 200-2400rpm
SKU: VM1 Category:
Ratek logo

Product Description

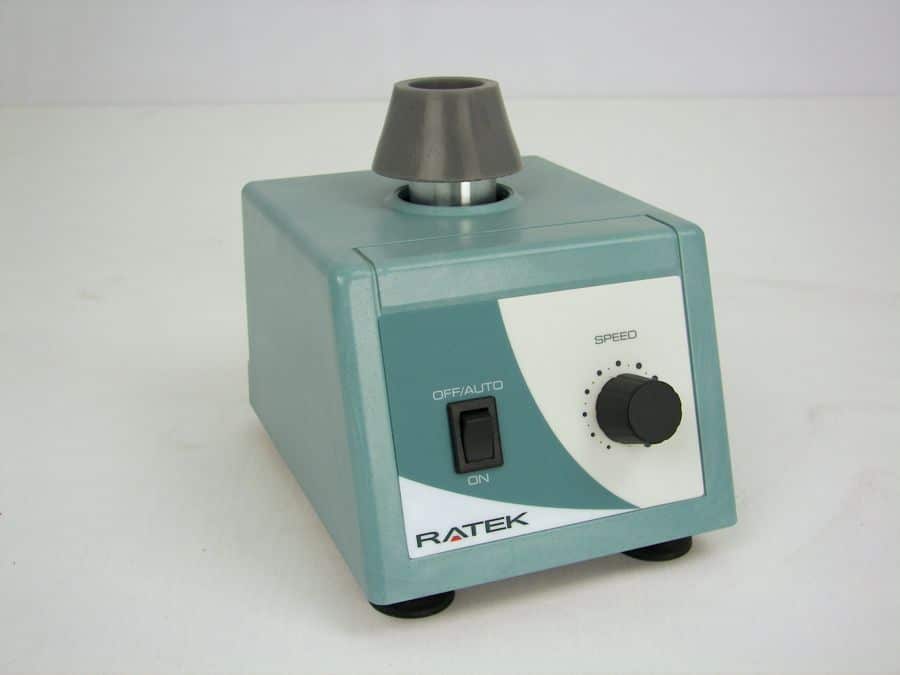

VM1 Vortex Mixer – Australian Made

The VM1 Vortex Mixer is a robust and user-friendly single-tube vortex mixer, designed and manufactured in Australia for dependable performance across a wide range of laboratory applications. Ideal for test tubes up to 28 mm in diameter, this versatile mixer delivers consistent results with minimal noise and vibration.

The VM1 offers two operating modes:

  • Automatic Mode: Continuous operation for extended mixing tasks.

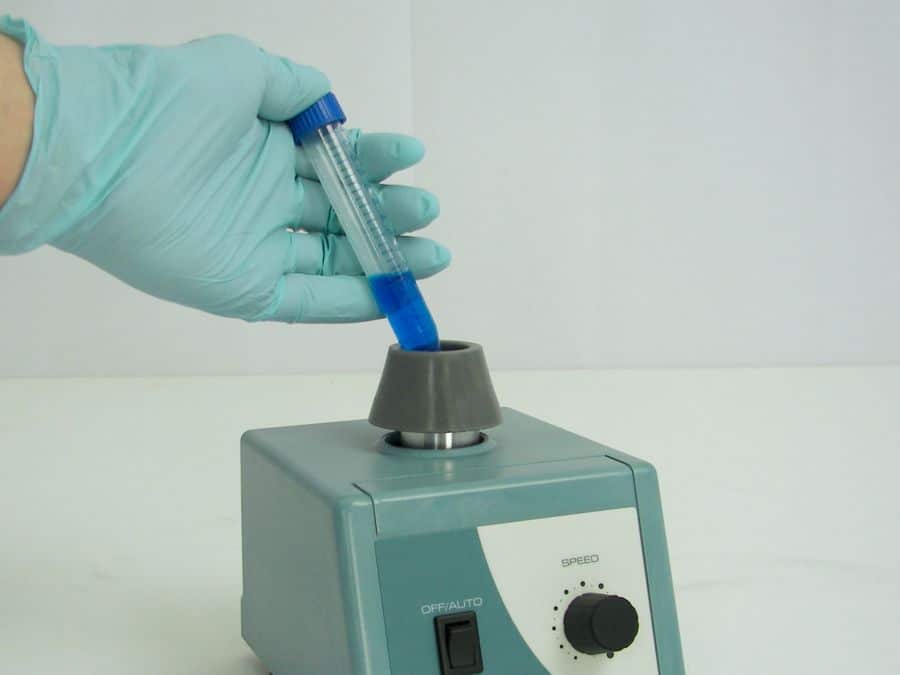

  • Manual Mode: Activated by downward pressure when the tube is placed in the mixing cup—perfect for quick, hands-on mixing.

A variable speed control allows you to adjust mixing intensity, from gentle agitation to vigorous vortexing. Additionally, the mixing action can be fine-tuned by altering the angle and pressure applied to the tube. The counterbalanced drive system ensures smooth and quiet operation, even at higher speeds.

Applications:

  • Clinical & Research Labs: Suspend cells in microbiology and cell culture workflows

  • Biochemical & Analytical Labs: Mix assay reagents or combine experimental samples with diluents

  • General Lab Use: Thoroughly mix precipitates in test tubes, small bottles, or flasks

Key Features:

  • Compatible with test tubes up to 28 mm diameter

  • Two operating modes: automatic and manual

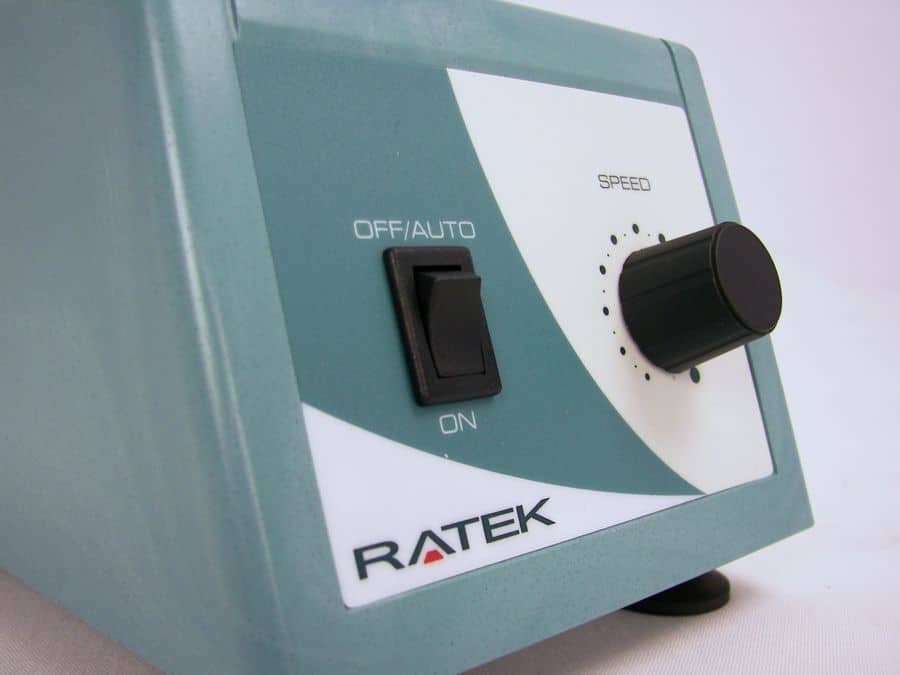

  • Variable speed control for precise mixing

  • Quiet, smooth operation with counterbalanced drive

  • Sturdy, Australian-made construction

Power requirements: 240vac/20 watts
Motor: Ac shaded pole
Speed control: 200 – 2700 rpm
Overall dimensions: H135 x D160 x W125
Weight: 1.6 kg
