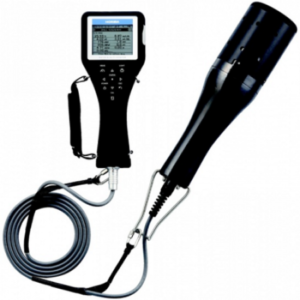

Horiba U-50 Series Multiparameter Meters

Australian Scientific’s Water Quality Meter range includes the HORIBA U-50 Multiparameter Series that measure and display 11 parameters simultaneously with newly designed control unit and sensor technology. Intuitiveu-50 horiba meter software assures ease of use and operation efficiency. Horiba’s robust & powerful design, provides user friendly field monitoring on site, such as rivet, ground water, drainage water, etc. It brings together feature of function and performance, which makes simple operation for everybody with a U-50.

Control Unit Design for Field Operations

  • Auto-calibration feature provides hassle free calibration of pH, dissolved oxygen, conductivity, turbidity and depth.
  • Shock resistant cover designed for rough treatment in the field and is easily cleaned.
  • Cable can be easily connected and disconnected with quick-connect fitting.

 Data Management

  • Auto hold function freezes average data values on the screen to offer more time to verify or transcribe data.
  • Diagnostic functions notify the user of errors.
  • Integral USB connection for data transfer to a PC. USA cable is sold separately and includes software.
  • Selectable measurement units allow the operator to report data without the need to convert data to desired units of measurement.

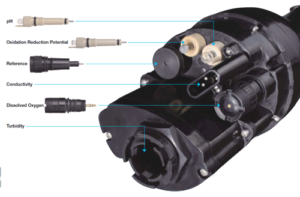

 Multiple Sensors Housed in Each Probe

  • Multiple sensors allow for the measurement of 11 parameters simultaneously (pH, pH(mv), ORP, DO, COND, Salinity, TDS, Seawater Specific Gravity, Temperature, Turbidity, Water Depth).
  • Turbidity sensor on the U-53 conforms to US EPA method 180.1. Precision has been improved over conventional instruments. The model U-53 high precision filed replaceable turbidity sensor with wiper has a resolution of 0.01 NTU.
  • Improved stability of the dissolved oxygen sensor has been achieved with a new 3 electrode design for fast response and polarographic sensor for ease of maintenance.
  • pH and ORP electrodes can be replaced individually to reduce replacement costs

Options available with:

U-51 (2m or 10m Cable)

U-52 (2m,10m or 30m Cable)

U-52G (2m,10m or 30m Cable)

U-53 (2m,10m or 30m Cable)

U-53G (2m,10m or 30m Cable)

parts of a U-50
