Product Description

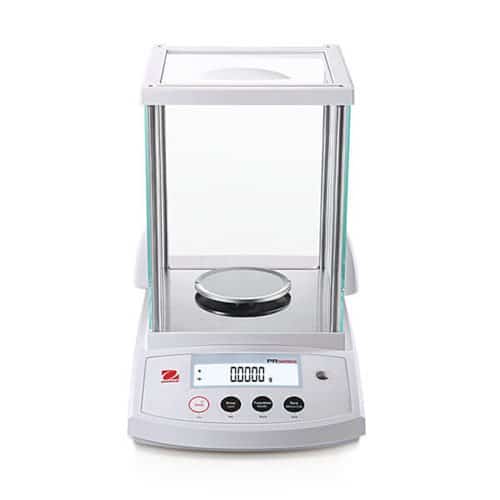

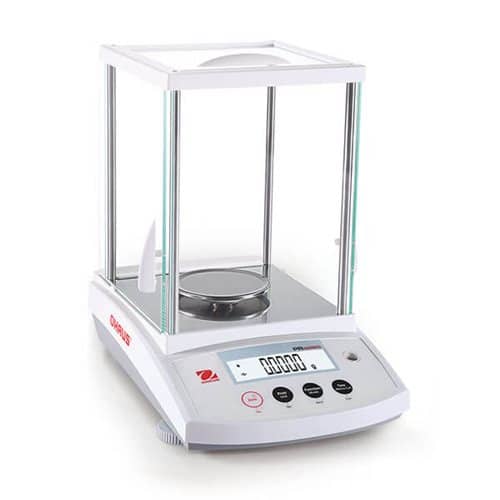

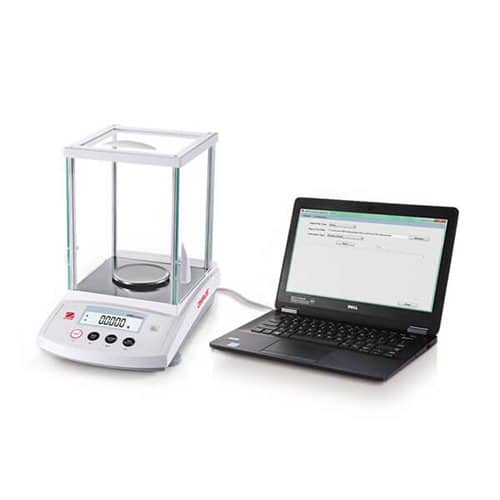

- The PR is equipped with 3 essential weighing modes, RS-232 connectivity for data transfer and storage, and internal calibration (in select models), making it ideal for routine weighing applications.
- Equipped with an easy-to-read, bright backlit display and a simple user interface, the PR is incredibly easy to operate, with almost no training required.
- The PR’s small footprint saves desktop space while providing a large weighing surface. The PR is durably constructed, and features a stainless steel pan to withstand day-to-day use in the workplace.
Basic Weighing, Parts Counting, Percent Weighing
Backlit Liquid Crystal Display (LCD)
AC adapter (included)
RS232 (one port included)
ABS top housing, removable stainless steel pan, removable glass draftshield with sliding top door, integrated weigh-below-hook, security bracket, calibration lock

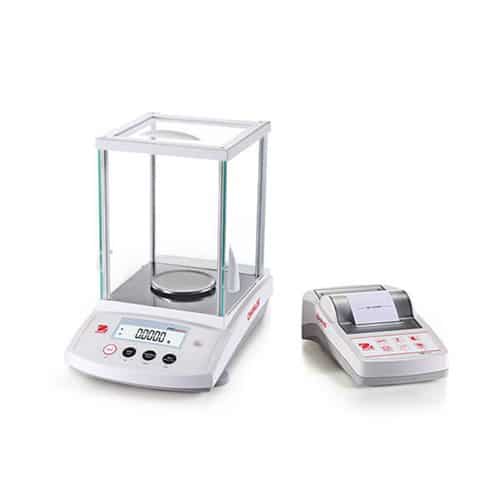

User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator
Maximum Capacity 120 g
Readability 0.0001 g
Pan Size 3.5 in (90 mm)
Internal Calibration Not Applicable
Draftshield Included
Auto Door Not Applicable
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Built-in Ionizer No
Communication RS232
Dimensions 12.5 in x 11.9 in x 7.9 in (317 mm x 303 mm x 201 mm) (LxHxW)
Display LCD with backlight
Inuse cover No
Legal for Trade No
Linearity ± 0.0002 g
Minimum Weight (USP, 0.1%, typical) 200 mg
Net Weight 10 lb (4.5 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.0001 g
Stabilization Time 3 s
Tare Range To capacity by subtraction
Units of Measurement Milligram; Pennyweight; Ounce Troy; Newton; Taiwan Tael; Gram; Grain; Ounce; Carat; Custom
Working Environment operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)
