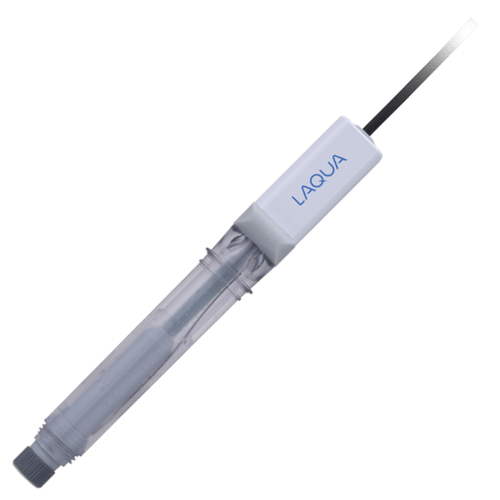

Chloride Electrode (ISE Combination) 6560S-10C Kit including: 1 Tip Calibration Standards 100/1000ppm

$1,295.00 ex GST

Usually ships in 21 days

Product Description

Ion-selective electrodes are responsive to concentration of particular ions in the test liquid and are variable-potential electrodes. They are used in conjunction with reference electrodes to measure the concentration of particular ions. HORIBA’S years of experience and know-how in this field are behind the wide range of ion electrodes we offer.

When measurements are made using an ion meter, calibrating it with various standard solutions will give direct readings of the ion concentration. Note that since volumes-detection level changes with temperature, measurements must be taken at a fixed temperature.

Chloride electrode will be shipped from HORIBA without the ISAB (1M KNO3) and without the filling solution (1M KNO3).

The electrode is supplied with:
*1000mg/L chloride ion standard 50ml
*100mg/L chloride ion standard 50ml

***The 1M potassium nitrate solution (1M KNO3) is required for the ISAB and filling solution for the chloride ISE. This should be purchased separately from Australian Scientific Pty Ltd as follows:
Part no. 702450 Potassium Nitrate 1M, 500ml, please contact us for pricing and availability

CLICK HERE FOR BROCHURE

MODEL

6560S-10C

Measurement Range

0.35 – 35,000 mg/L Cl

1 x 10-5 – 1 mol/L Cl

Temperature Range

0 – 50°C

pH Range

pH 3 – 11 (350 mg/L Cl-)

Accuracy

±2%

Internal Electrode

Ag/AgCl

Internal Solution

1 mol/L KNO3

Liquid Junction

Movable sleeve

Connector & Cable Length

BNC, 1m

Dimensions

150mm (length), 16.5mm (diameter)

Wetted Part Materials

PVC, PSU, AgCl

Slope

-53 to -62 mV/decade

Selection Coefficient

S2O32-, S2-, I, Ag+, Hg2+ = Not acceptable

SCN = 0.3, MnO4- = 0.1, Br = 0.03

NO3, F, HCO3, SO42-, PO42- = 1000

Package Contents

Chloride Ion Electrode Tip
1000 mg/L Chloride Ion Standard Solution (50ml)
100 mg/L Chloride Ion Standard Solution (50ml)
Syringe
Dropper
Protective Pipe
Water-resistant abrasive sheet
Manual

Accessories and Solutions

7660S

Chloride Ion Electrode Tip

500-CL-SL

100 mg/L Chloride Ion Standard Solution (500ml)

500-CL-SH

1000 mg/L Chloride Ion Standard Solution (500ml)
