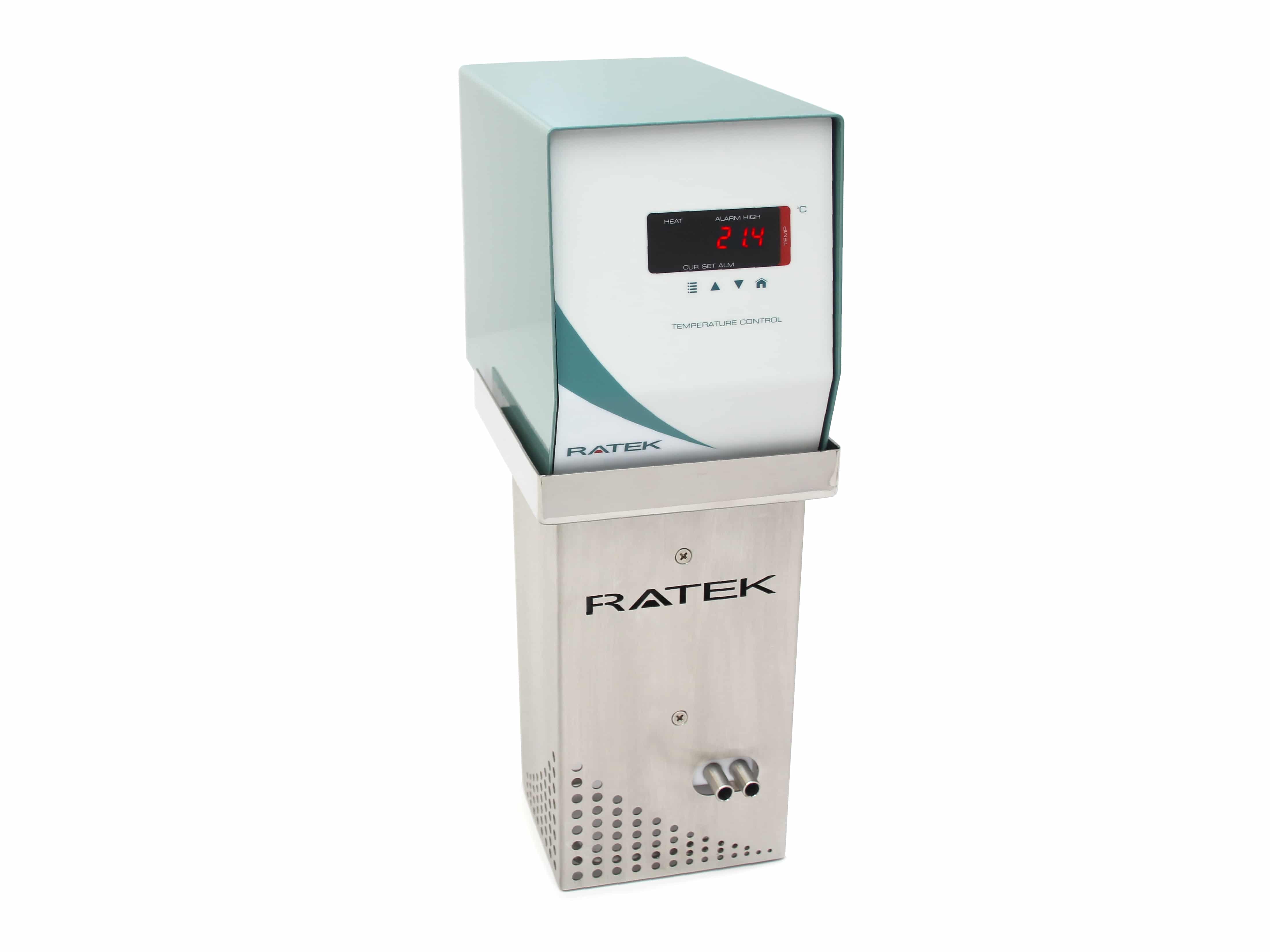

Immersion Circulator with Pump – Digital – Model TH7100

Temperature Control Full Digital PID
Circulation Type High-flow dual outlet pump with adjustable flow rate, 0-17 L/min at zero head
Digital Display Type Active bright red LED
Information Display
– Current temperature
– Set temperature
– Over-temp alarm set-point
– Heating indicator
– 0.1° resolution
Temperature Control Range 0°C to 100.0°C, (external cooling required for ambient +7ºC or less)
Control Stability +/- 0.1°C in Ratek insulated water bath with lid
Heating Power 1,000 Watts
Minimum Tank Depth 200 mm
Motor and drive type Silent long life brushless AC
Alarm Visual over-temp indicator
Safety features
– Resettable safety thermostat
– Over-current protection
Power input 240 VAC / 50-60 Hz
Overall dimensions Overall dimensions W125 x D190 x H360mm
Nett weight 4.46 kg
