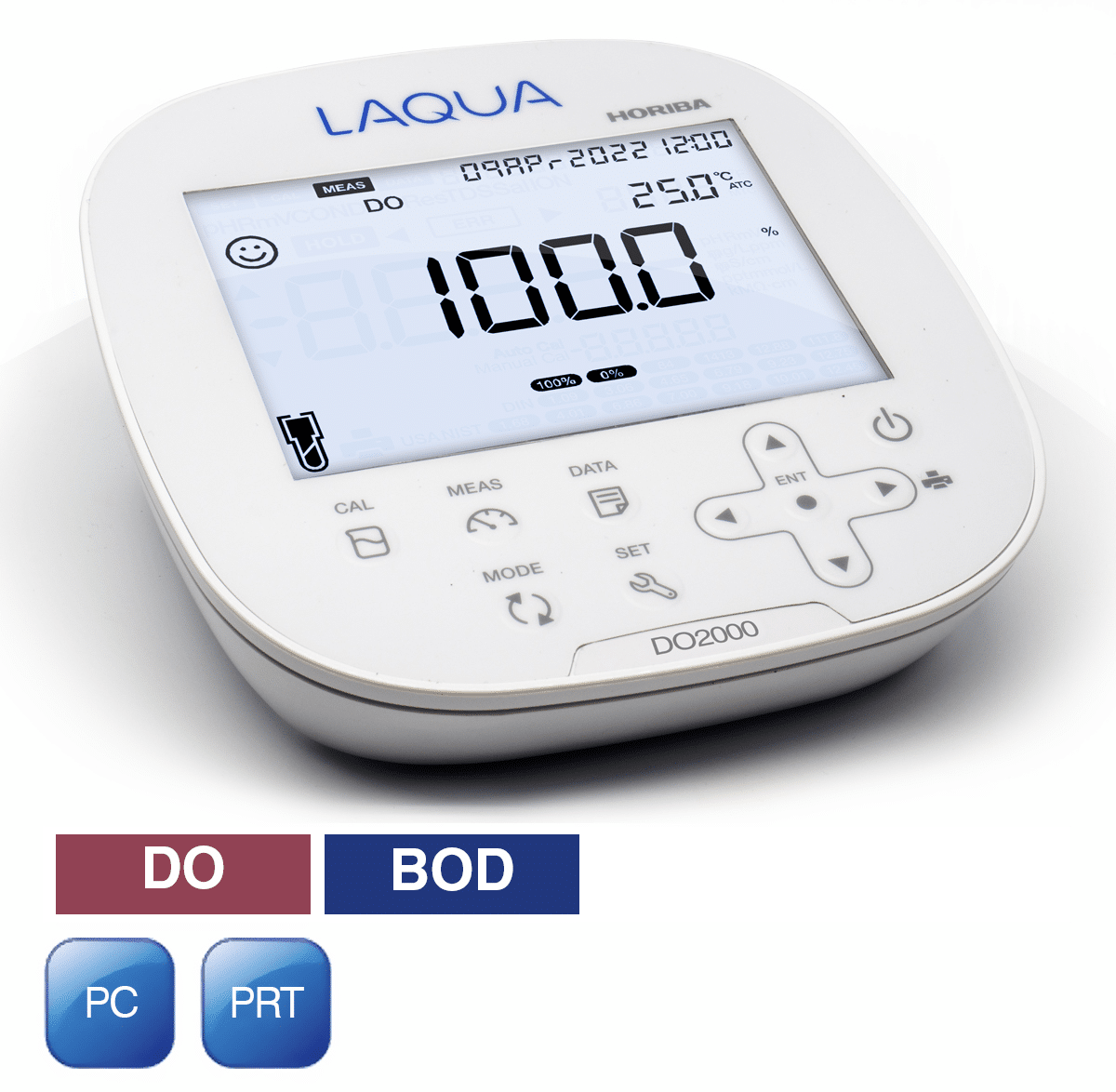

Dissolved Oxygen with Data Log Meter Kit LAQUA DO2000-S

$2,640.00 ex GST

Includes 9521-10D Dissolved Oxygen/Temp Electrode, Electrode Stand and Power Adapter
Usually Ships in 4-6 Weeks
SKU: 383575 Category:

Product Description

Key Features:

  • Measures Dissolved Oxygen (DO) and Biochemical Oxygen Demand (BOD)
  • DO Range: Up to 60.00 mg/L / 600.0%
  • Compensation for salinity, atmospheric pressure, and temperature effects in DO
  • Pre-programmed 5-day BOD method with seed correction option
  • Up to 2 DO calibration points
  • Compatibility with galvanic DO electrodes
  • Temperature Range: -30.0 to 130.0°C / -22.0 to 266.0°F with calibration option
  • Measurement Modes: Auto stable, auto hold, and real-time
  • Indicators: Electrode status, temperature, and reading stability visible at a glance
  • Data Storage: Large memory accepting up to 2000 data sets with date/time stamp
  • Data Log: Auto function with adjustable time interval
  • Real-Time Clock: Facilitating time-dependent functions
  • Auto Shut-Off: Adjustable time up to 30 mins.
  • Security: Password-protected set-up mode for enhanced security
  • Upgrade Capability: Software upgradeable for future enhancements
  • Communication: PC communication via USB cable with complimentary DAS20 data acquisition software
  • Printer Communication: Via RS232 cable
  • Display: 5” Digital, custom LCD display with backlight
  • Design: Sleek with an easy-to-use interface and audible key sound feedback
  • Compact: Small meter footprint with adjustable, integrated electrode stand
  • Warranty: 3 Years for added peace of mind.

Model
LAQUA-DO2000

DO/BOD/Temperature (°C/°F)

DO Range 0.0 to 60.00 mg/L, 0.0 to 600.0%
Resolution 0.01 mg/L, 0.1%
Accuracy +/- 0.1 mg/L , +/- 1.0%
Salinity Compensation 0.0 to 40.0 ppt
Barometric Pressure Compensation 10.0 to 200.0 kPa
BOD Measurement 5-day BOD with seed correction option
DO Probe Type Galvanic integrated with temperature sensor
Calibration Points Up to 2
Temperature Range -30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution 0.1 °C / °F
Accuracy ± 0.5 °C / ± 0.9 °F
Calibration Option Yes (± 10.0 °C / ± 18.0 °F range in 0.1 °C increments)
Memory 2000
Auto Data Log Yes
Real-time Clock Yes
Date & Time Stamp Yes
Measurement Modes Auto Stable / Auto Hold / Real Time
Auto Shut-Off Yes (Programmable: up to 30 mins.)
Electrode Status On screen display
Diagnostics Yes
Password Setting Yes
Software Upgrade Yes
PC / Printer Communication Phono jack (USB / RS232C)
Meter Inputs BNC, phono (ATC), DC sockets
Display 5″ Custom LCD with 320 segments and backlight
Power Requirement AC adaptor 100 – 240V, 50 – 60Hz
Dimensions & Weight 155(L) x 150(W) x 67(H) mm, 765g
