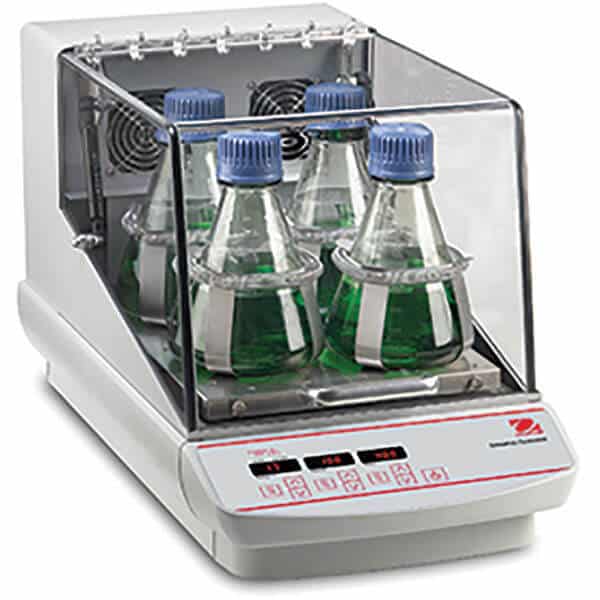

Incubating Heavy Duty Orbital Shaker – Orbital 19mm, Capacity 16kg @ 75rpm, 2.3kg @ 500rpm, Temp. Range Ambient +5°C – 65°C, Model Number – ISHD16HDG

From: $8,471.00 ex GST

Save Incubator Space with Benchtop Incubating and Incubating Refrigerating Shakers
Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.

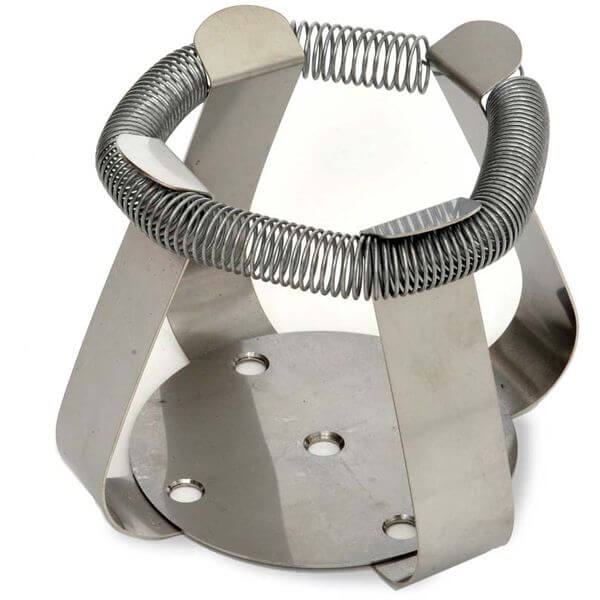

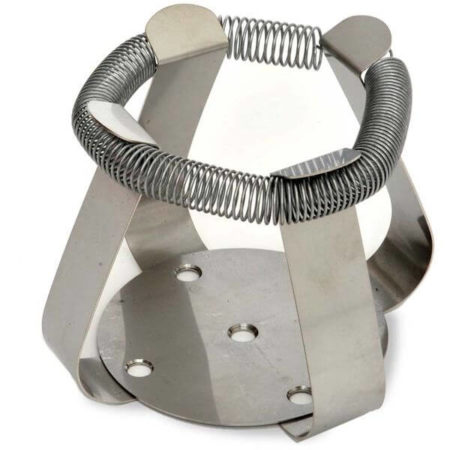

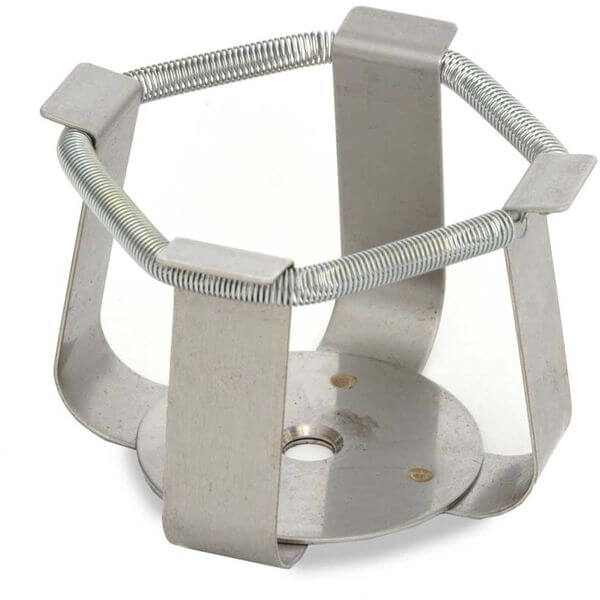

1 Litre Erlenmeyer Flask Clamp

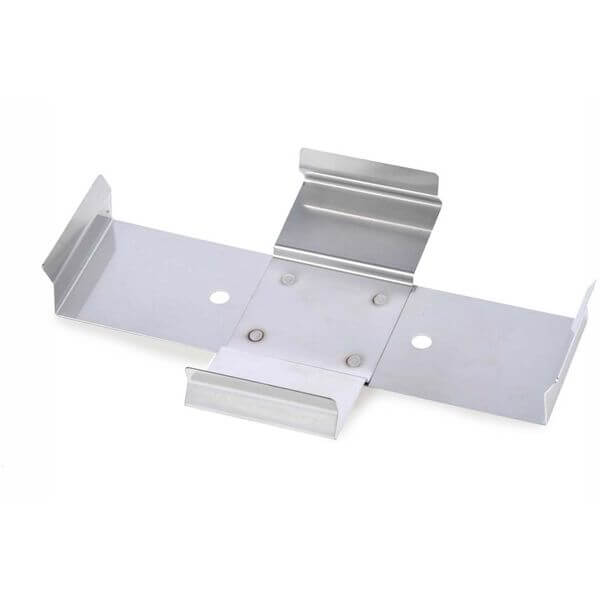

Clamp Microplate Stainless Steel

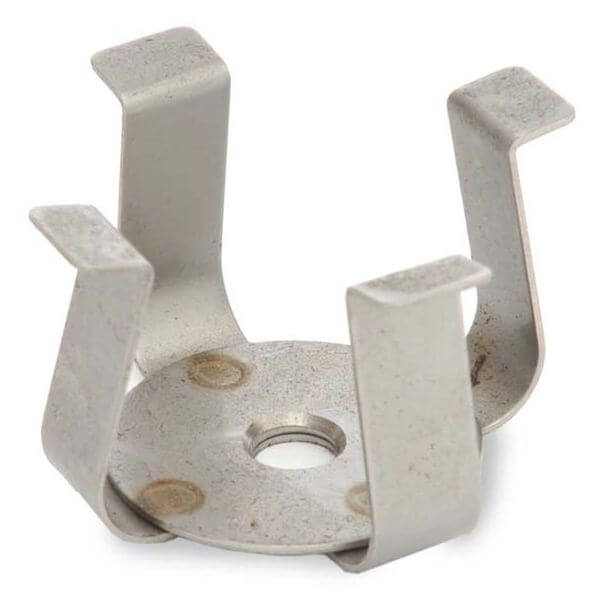

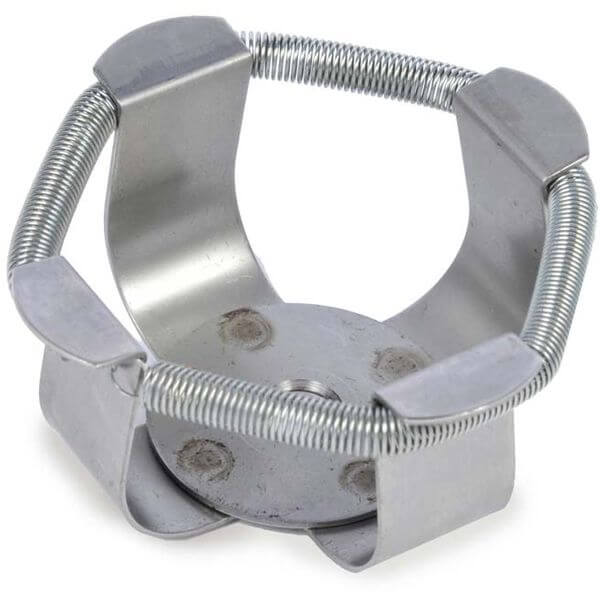

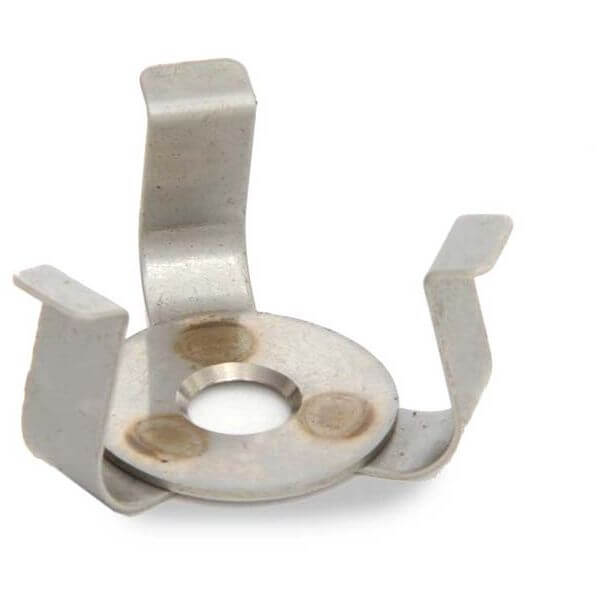

Flask Clamp 10mL

Flask Clamp 125mL

Flask Clamp 25mL

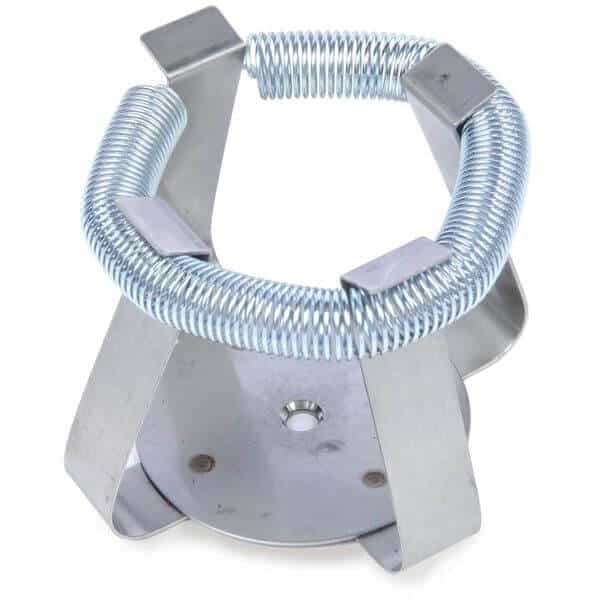

Flask Clamp 250mL

Flask Clamp 50mL

Flask Clamp 500mL

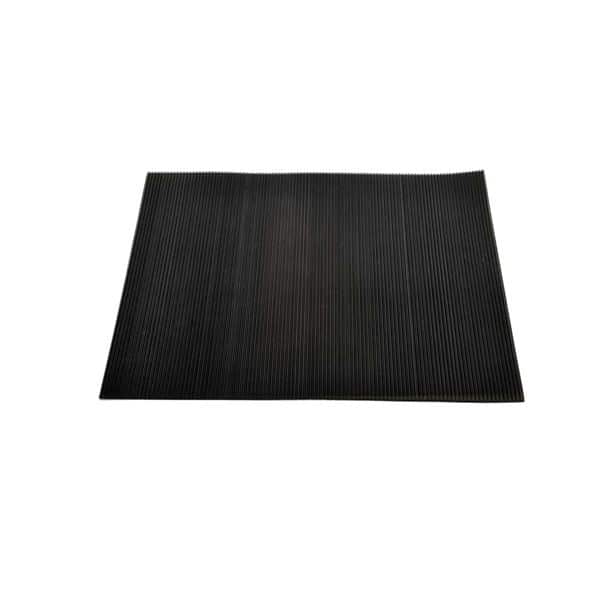

Rubber Mat 28 x 33cm

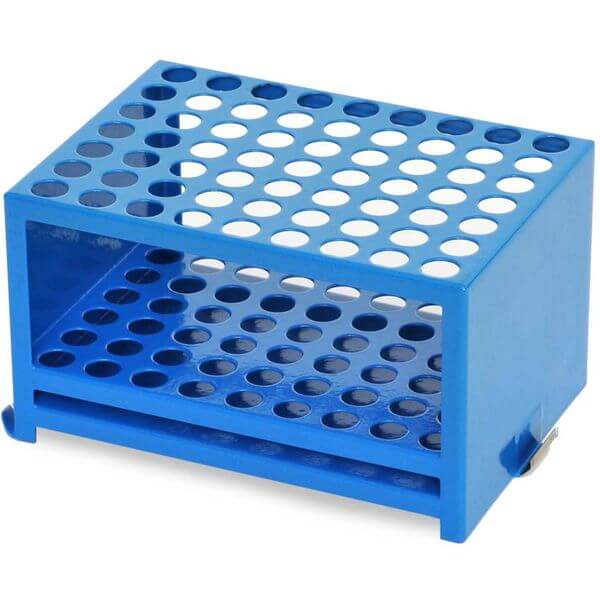

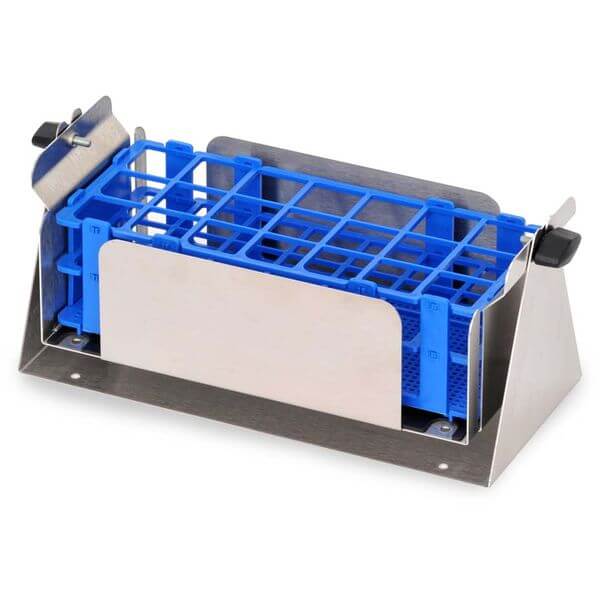

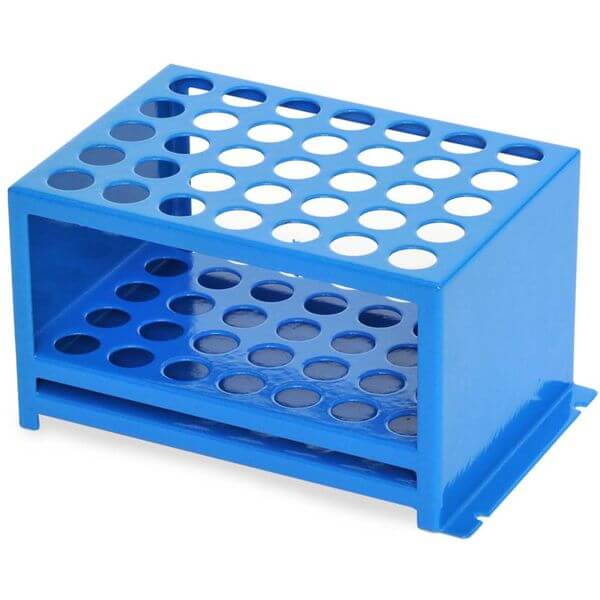

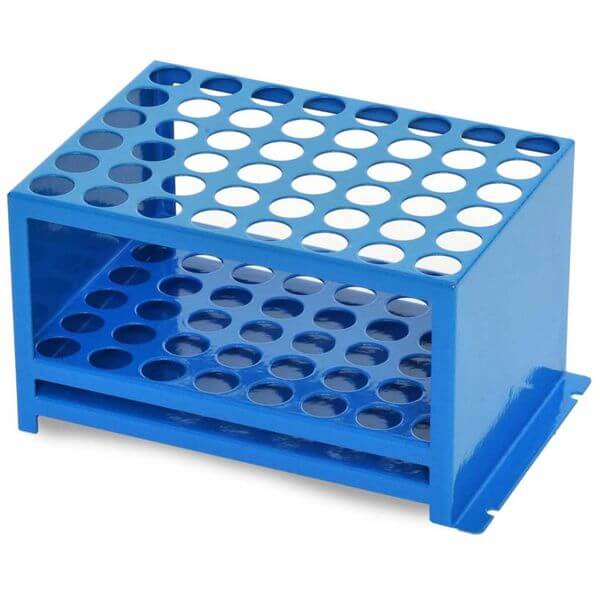

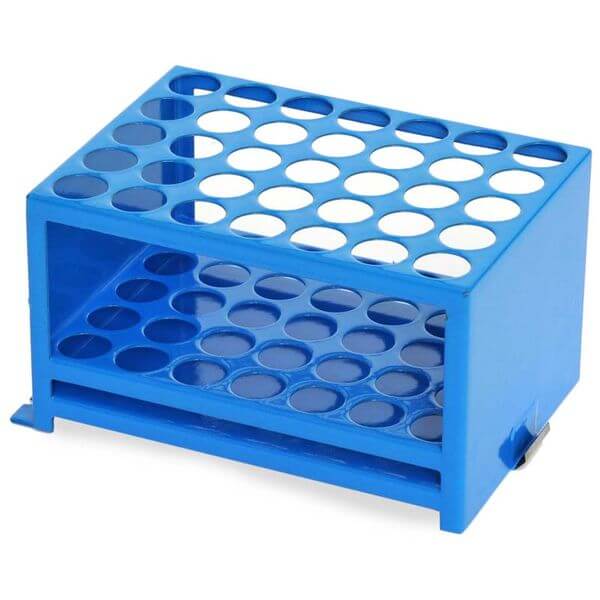

Test Tube Rack 10-13mm Diameter

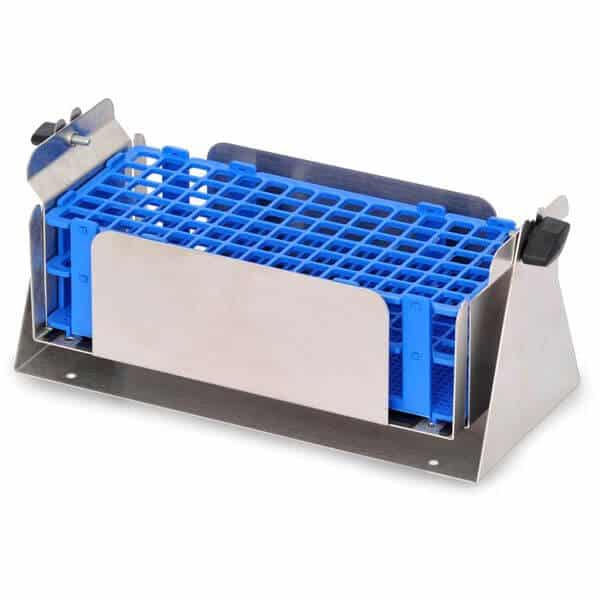

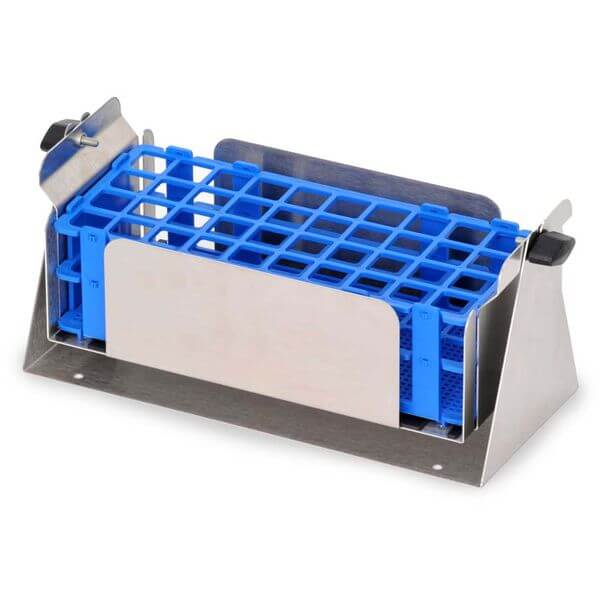

Test Tube Rack 13mm Pivoting

Test Tube Rack 14-16mm Diameter

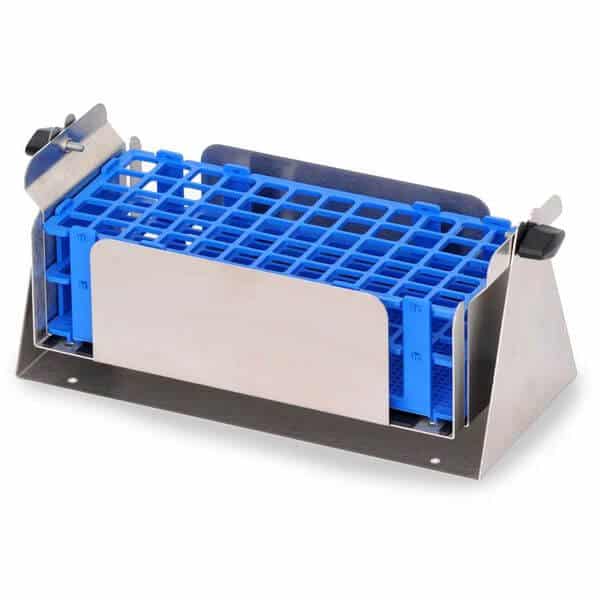

Test Tube Rack 16mm Pivoting

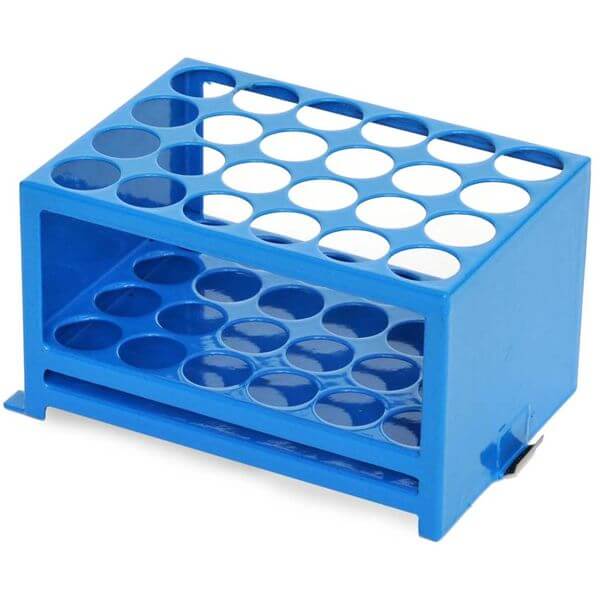

Test Tube Rack 18-20mm Diameter

Test Tube Rack 20mm Pivoting

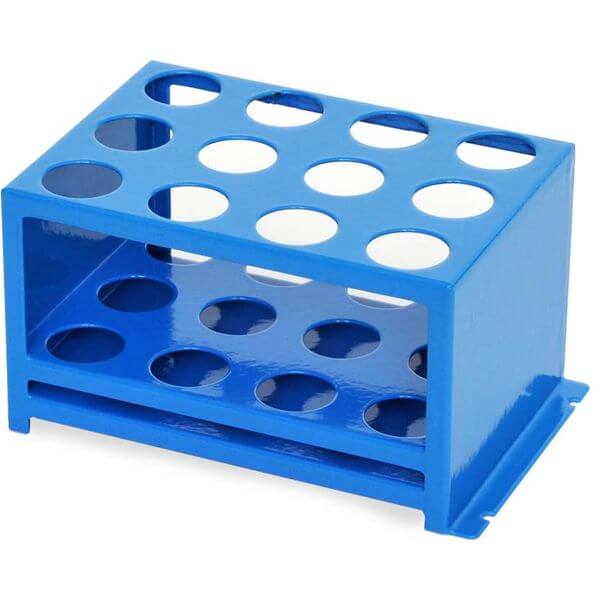

Test Tube Rack 22-25mm Diameter

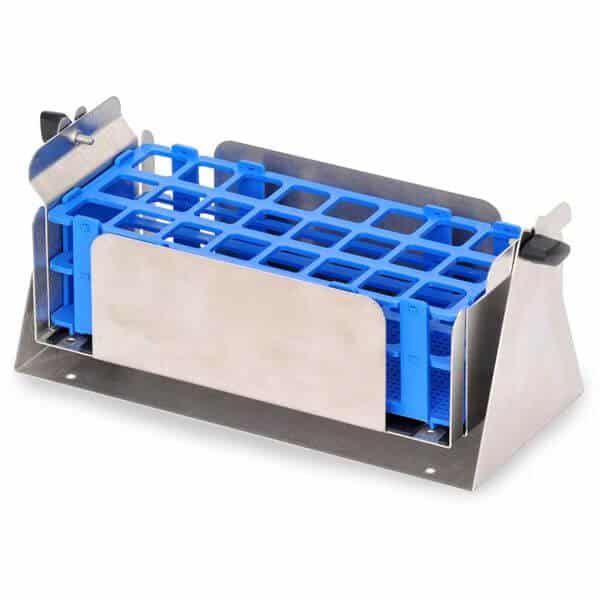

Test Tube Rack 25mm Pivoting

Test Tube Rack 30mm Pivoting

Test Tube Rack For 15mL Tubes

Test Tube Rack For 50mL Tubes

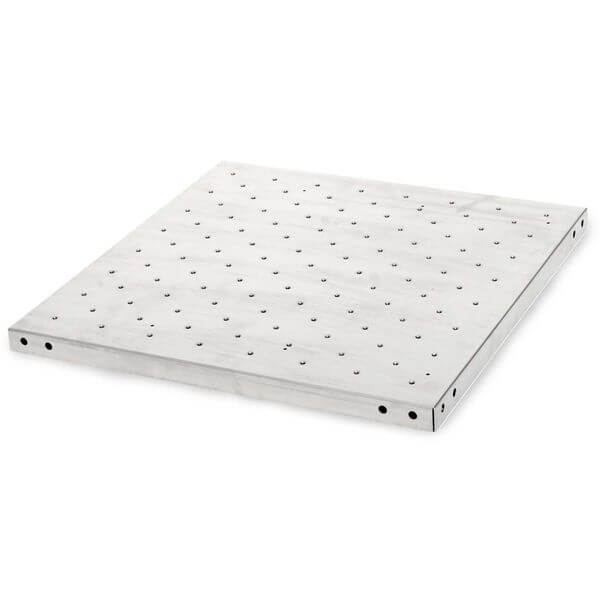

Universal Platform 28 x 33cm Stainless Steel

Contact Us For Availability Prior To Purchase

SKU: 30573773 Categories: , ,

Product Description

Unique Features Include:
• The exclusive Opti-Flow Forced Ventilation System utilizes twin induction or a single large fan. Air is deflected around & not directly on samples, creating a circular flow of air ensuring uniformity.
• For repeatable results, the exclusive Accu-Drive shaking system ensures speed accuracy. The Triple Eccentric Drive provides consistent shaking
motion throughout the entire speed range.

Applications
Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
Display
Independent LED displays for temperature, speed and time
Operation
N/A
Communication
RS232
Construction
Aluminum and Cycoloy
Design Features
Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system

Motion Orbital, 19 mm
Capacity 35 lb (16kg)@ 75rpm, 5 lb (2.3kg)@ 500 rpm
Temp. Range Ambient +5°C – 65°C
Uniformity ± 0.5°C at 37°C
Speed Range 15 rpm – 500 rpm
Tray Size 13 in x 11 in (330 mm x 279 mm)
Calibration Temperature calibration
Communication RS232
Control Digital
Dimensions 25.5 in x 16 in x 14 in (648 mm x 406 mm x 356 mm) (LxHxW)
Drive System Triple Eccentric; Brushless DC Motor
Inner Dimensions 13.4 in x 9.5 in x 12 in (340 mm x 241 mm x 305 mm) (LxHxW)
Net Weight 79.11 lb (35.9 kg)
Power 230V, 5A, 50/60Hz
Power Consumption 450 W
Safety Certification TUV
Speed Accuracy Above 100rpm +/- 1%, Below 100rpm /- 1 rpm
Speed Range 15 rpm – 500 rpm
Timer 1 second – 160 hours
Tray Construction Aluminum
Working Environment 59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing)
