Multi tube Vortex Mixer with Pulse Timer – Model MTV1

$3,425.00 ex GST

Platform size of 320 x 200mm – Speed range approx. 200 to 3,000 RPM
SKU: MTV1 Category:

Product Description

MTV1 Multi-Tube Vortex MixerAustralian Made

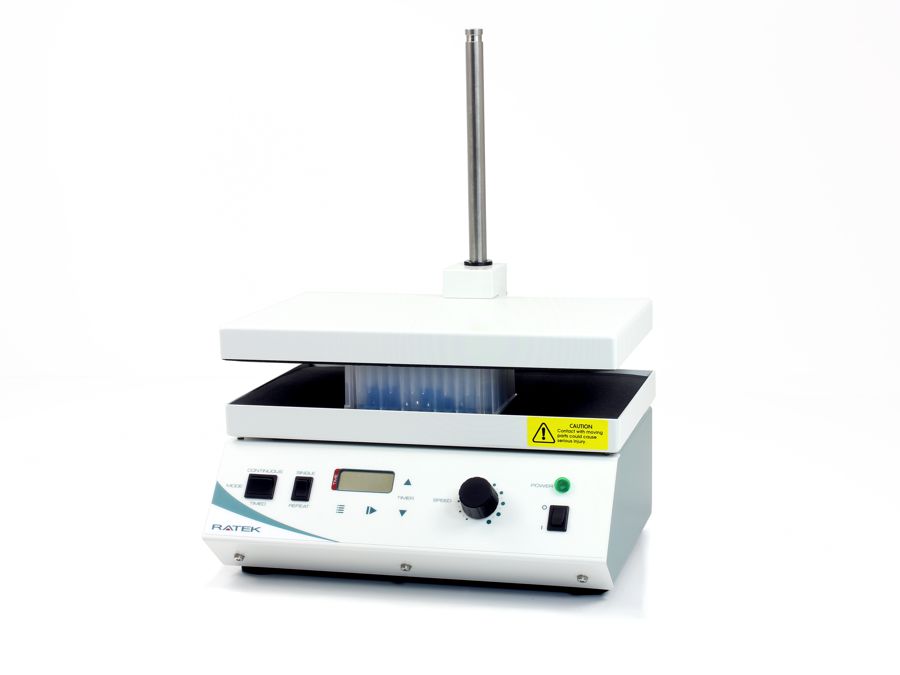

The MTV1 Multi-Tube Vortex Mixer is a high-capacity, hands-free mixing solution designed and manufactured in Australia. Built to accommodate a standard test tube rack filled with tubes of equal length (up to the maximum platform size), the MTV1 is ideal for laboratories requiring consistent, timed, or continuous mixing.

This versatile mixer offers multiple operating modes:

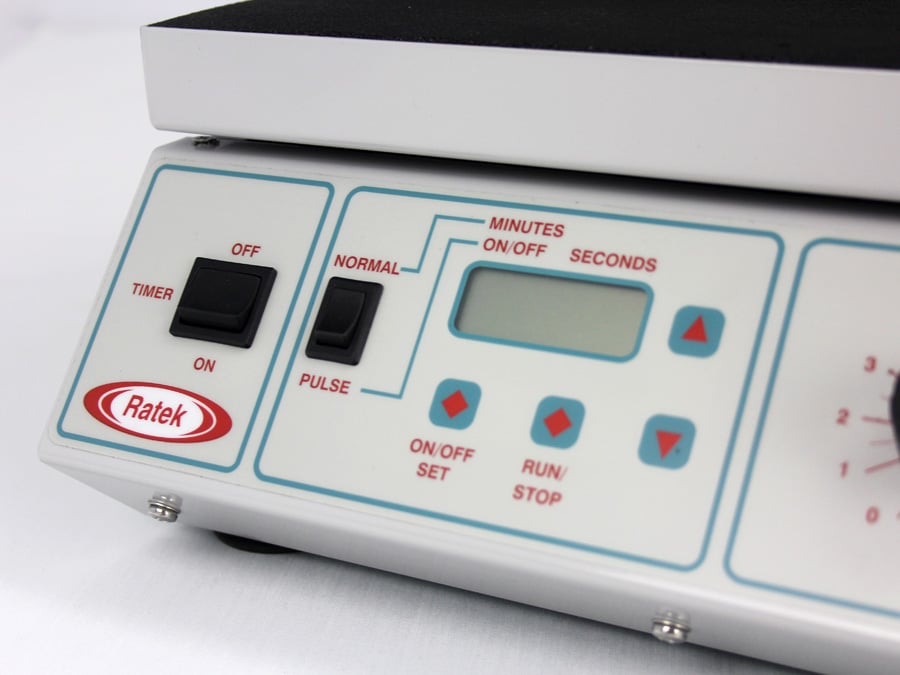

  • Countdown Timer Mode: Set mixing durations up to 99 minutes and 59 seconds

  • Pulse Mode: Program alternating on/off cycles up to 99 seconds each for controlled mixing intervals

  • Manual Mode: With the clamping plate removed, the unit functions as a manual vortex mixer—simply press tubes or flasks of various sizes and angles against the platform for direct control over the mixing action

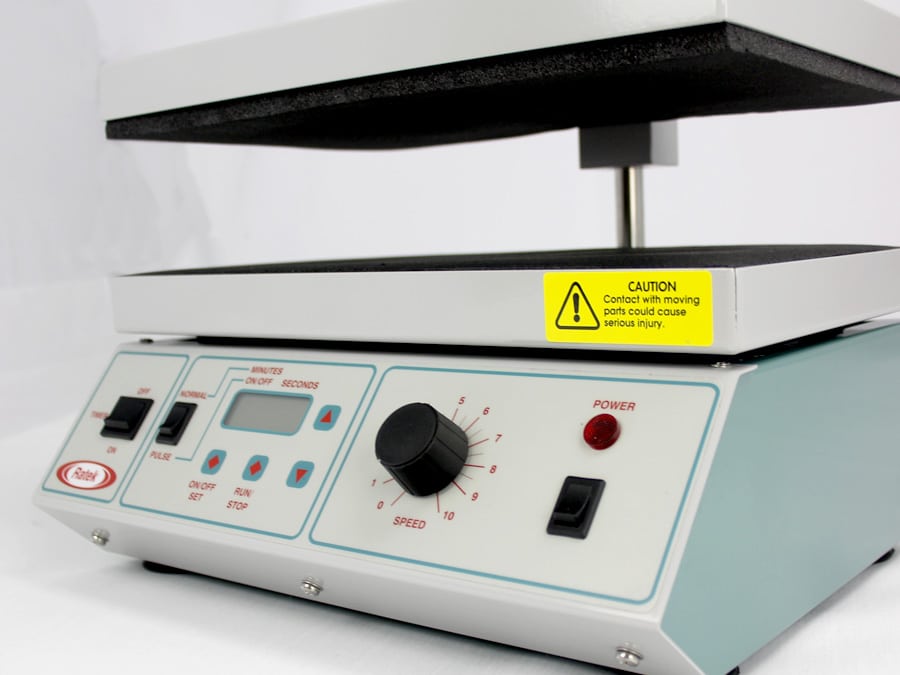

The adjustable speed control allows users to fine-tune the vortexing intensity, from gentle mixing to vigorous agitation, to suit a wide range of laboratory needs.

Applications:

  • Clinical, Microbiology & Cell Culture Labs: Suspend cells or mix biological samples

  • Biochemical & Analytical Labs: Mix assay reagents, diluents, or other test solutions

  • General Laboratory Use: Efficiently mix precipitates in tubes, flasks, or small bottles

Key Features:

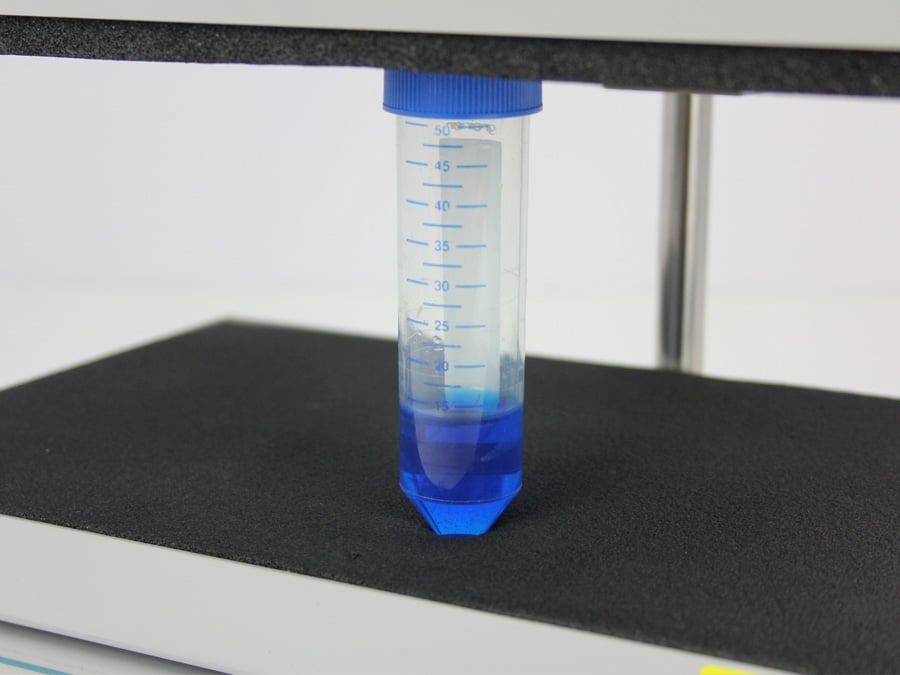

  • Holds a full standard test tube rack for high-throughput mixing

  • Multiple modes: countdown timer, pulse mixing, and manual operation

  • Adjustable speed control for variable mixing intensity

  • Removable clamping plate for flexible use with different vessels

  • Durable, Australian-made construction

Power requirements: 240vac/40 watts
Control: Continously variable from 750 to 3000rpm with load
Capacity: 320 x 200mm platform (max 250mm vetical clearance)
Motor: 12V DC
Orbit diameter: 4mm
Overall Dimensions: W325 x D300 x H440mm
Weight: 17kg
