Portable Meter Kit (EC/TDS/Sal/Temp/Data Log) LAQUA EC220-K

Name: Portable Meter Kit (EC/TDS/Sal/Temp/Data Log) LAQUA EC220-K
SKU: LAQUA EC220-K
Price: 1040.00 AUD
Availability: InStock

$1,040.00 ex GST

Includes 9383-10D plastic-body, Ti/Pt black Conductivity Electrode (k=1.0) with Integrated Temperature Sensor, 84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm Conductivity Solutions (60ml each), Carrying Case and Data Logging

Usually Stocked

SKU: LAQUA EC220-K Category: Conductivity Portable Meters Tag: water quality export

Product Description

Features

Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
Adjustable reference temperature and temperature coefficient
Adjustable cell constant and selectable measurement unit
Automatic / manual temperature compensation and temperature calibration function
Conductivity and total dissolved solids (TDS) conversion
Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
Two (2) salinity calibration curves: NaCl, Seawater
°C & °F temperature readings
With real-time clock and date/time stamp for GLP compliance
Auto log data; built-in memory can store up to 1000 data
Auto stable, auto hold, and real-time measurement modes
Auto shut-off (programmable: up to 30 minutes)
Monochrome LCD with white LED backlight: 50 x 50 mm
Phono jack output for connecting the meter to computer via PC (USB) cable for data collection and software upgrade and to printer via printer (RS232) cable for printout
Powered by 2 x AA batteries
Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
Packaged with electrode and calibration solutions in carrying case
3 years meter warranty

Meter Kit

EC220-K

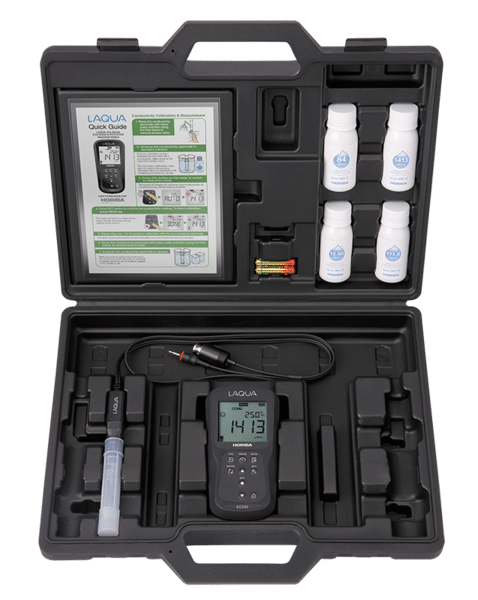

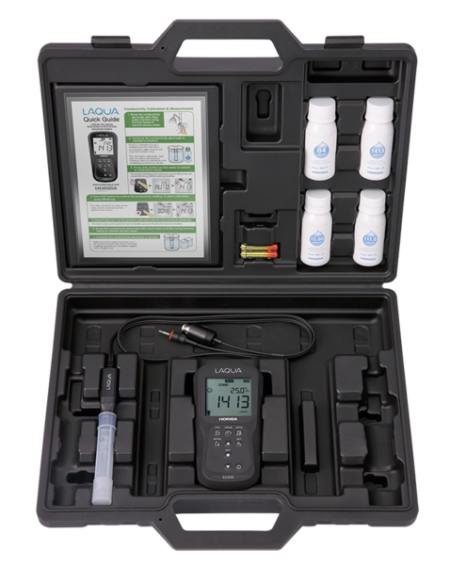

Package Details:

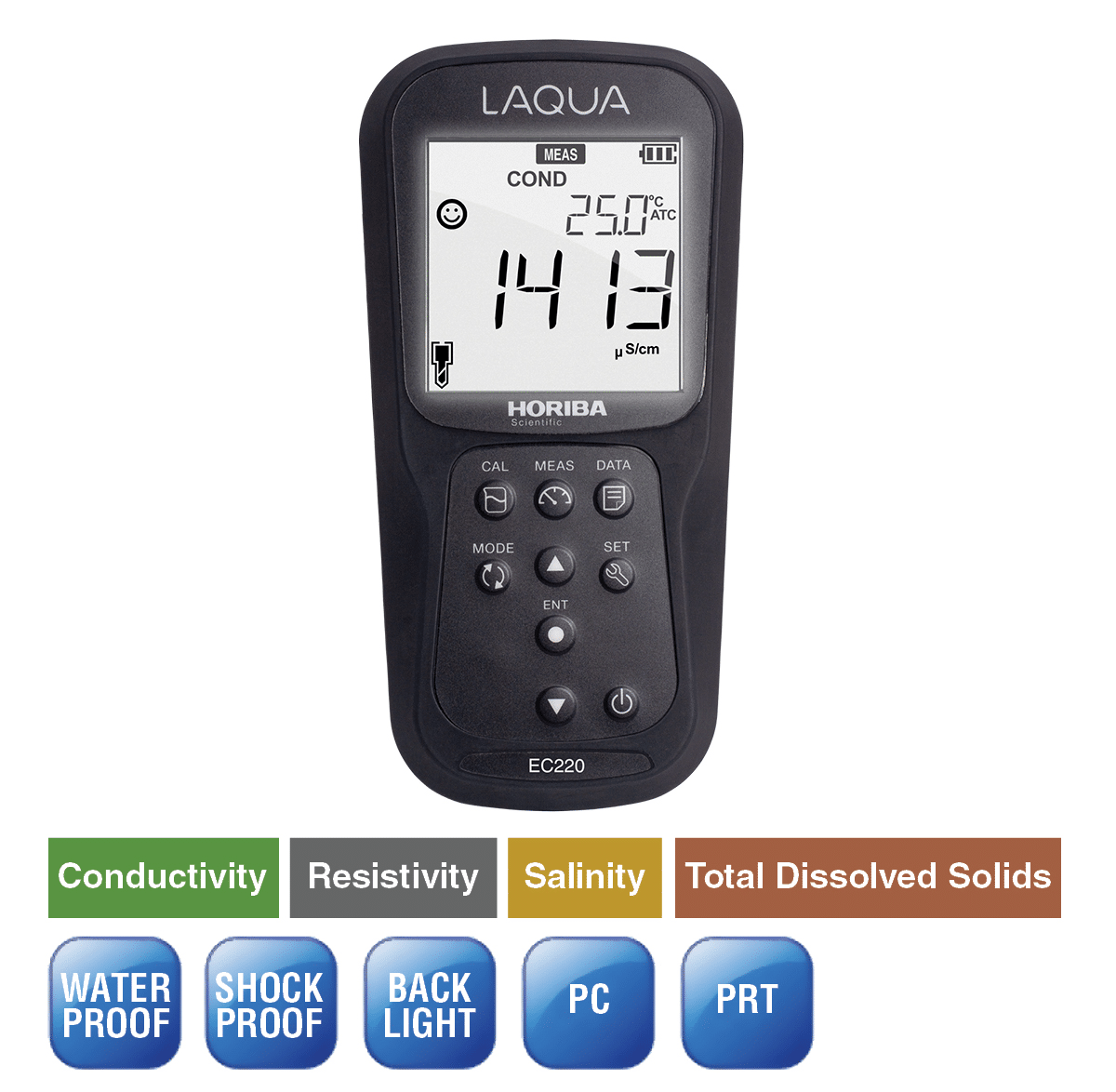

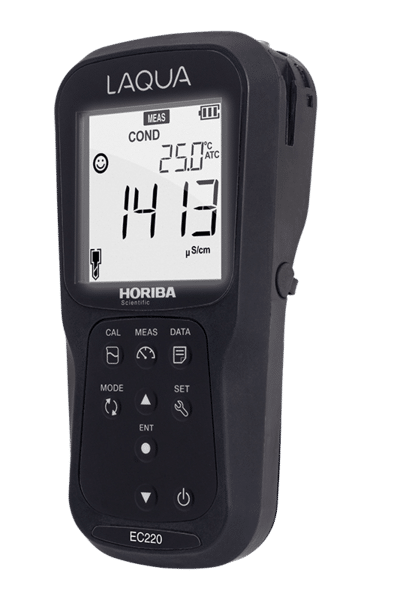

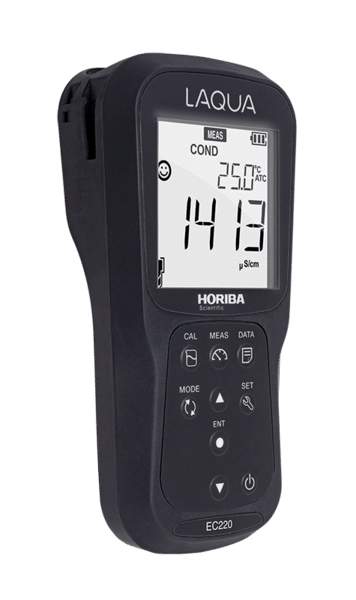

LAQUAact EC220 Cond/TDS/Res/Sal/Temp meter
2 x AA batteries
Manual and quick guide

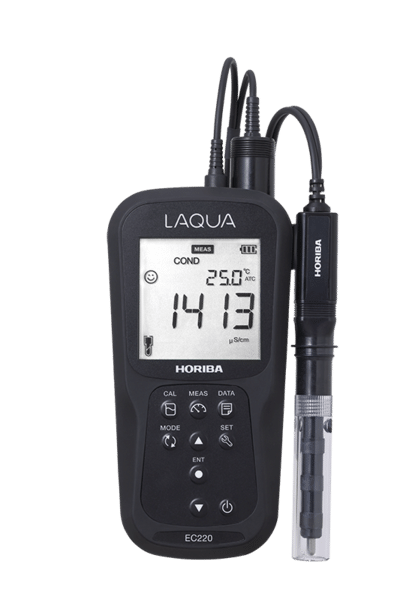

9383-10D plastic-body, Ti/Pt black conductivity probe (k=1.0) with integrated temperature sensor
84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm conductivity standard solutions (60ml each)
Carrying case

Manufactured by HORIBA

Also known as:
Conductivity meter, EC meter, portable conductivity meter, portable EC meter, HORIBA conductivity meter, HORIBA EC meter, Laqua conductivity meter, waterproof conductivity meter

Model	LAQUA EC220 Conductivity/TDS/Res/Sal/Temp (°C/°F)
Conductivity Range	…µS/cm to 200.0 mS/cm (k=1.0)
Resolution	0.05% full scale
Accuracy	±0.6% full scale; ±1.5% full scale > 18.0 mS/cm
Reference Temperature	15 to 30 °C (adjustable)
Temperature Coefficient	0.00 to 10.00% (adjustable)
Cell Constant	0.1, 1.0, 10.0 (adjustable)
Calibration Points	Up to 4 (Auto) / Up to 5 (Manual)
Measurement Unit	S/cm, S/m (selectable / auto-ranging)
TDS Range	…ppm to 100 ppt (TDS factor=0.5)
Resolution	0.01 ppm (mg/L) / 0.1 ppt (g/L)
Accuracy	±0.1% full scale
TDS Curves	Linear (0.40 to 1.00), EN27888, 442, NaCl
Resistivity Range	0.000 Ω•cm to 20.0 MΩ•cm
Resolution	0.05% full scale
Accuracy	±0.6% full scale; ±1.5% full scale > 18.0 MΩ•cm
Salinity Range	0.0 to 100.0 ppt / 0.00 to 10.00 %
Resolution	0.1 ppt / 0.01%
Accuracy	±0.2% full scale
Salinity Curves	NaCl / Seawater
Calibration Option	Yes
Temperature Range	-30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution	0.1 °C / °F
Accuracy	± 0.5 °C / ± 0.9 °C
Calibration Option	Yes
Memory Data	1000
Auto Log Data	Yes
Real-time Clock	Yes
Date & Time Stamp	Yes
Measurement Modes	Auto Stable, Auto Hold, Real Time
Auto-Shut Off	Yes (Programmable: up to 30 minutes)
Electrode Status	Yes (On screen display)
Diagnostic Messages	Yes
Software Upgrade	Yes via PC (USB) cable PN 3200779639
PC Communication	Yes via PC (USB) cable PN 3200779639
Printer Communication	Yes via Printer (RS232) cable PN 3200779638
Meter Inputs	BNC (for conductivity electrode), phono (for temperature sensor)
Meter Output	phono (for PC/printer connection)
Display	Custom LCD with backlight
Housing	IP67, shock & scratch resistant, non-slip
Power Requirement	2 x AA batteries
Battery Life	> 500 hours
Meter Dimensions	160 (L) x 80 (W) x 40.60 (H) mm
Meter Weight	Approx. 260g (with batteries) / 216g (without batteries)
