Portable Meter Kit (PH/ORP/EC/TDS/Sal/Temp) LAQUA PC210-K

Name: Portable Meter Kit (PH/ORP/EC/TDS/Sal/Temp) LAQUA PC210-K
SKU: PC210-K
Price: 1150.00 AUD
Availability: InStock

From: $1,150.00 ex GST

Dual Channel Meter which Includes 9652-10D Plastic-Body Gel-filled pH/Temp Electrode, 9383-10D Plastic-Body, Ti/Pt Black, Conductivity Electrode (k=1.0), pH 4, 7, 10 Buffers (60ml each), Electrode Adapter, and Carrying Case

Usually Stocked

Note: ORP electrode not included. ORP electrode 9300-10D to be purchased separately.

SKU: PC210-K Category: Multiparameter Portable Meters Tag: water quality export

Product Description

Features

Note: ORP electrode not included. ORP electrode 9300-10D to be purchased separately.

Automatic pH calibration – up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
0.01 pH resolution
Offset and average slope display
ORP calibration option
Automatic / manual temperature compensation and temperature calibration function
Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
Adjustable reference temperature and temperature coefficient
Adjustable cell constant and selectable measurement unit
Conductivity and total dissolved solids (TDS) conversion
Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
Two (2) salinity calibration curves: NaCl, Seawater
Auto log data; built-in memory can store up to 500 data
Auto shut-off (programmable: up to 30 minutes)
Auto stable, auto hold, and real time measurement modes
Calibration alarm (programmable: up to 90 days)
Built-in electrode holder allows 2 electrodes to be attached
Monochrome LCD with white LED backlight: 50 x 50 mm
Phono jack output for connecting the meter to computer for software upgrade only
Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
Powered by 2 x AA batteries
Packaged with electrodes and calibration solutions in carrying case
3 years meter warranty

Meter Kit

PC210-K

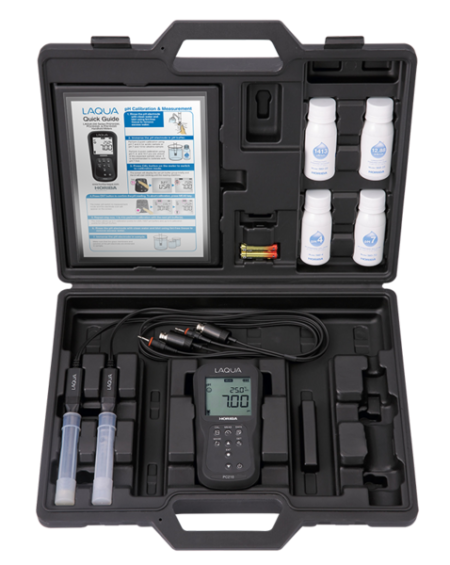

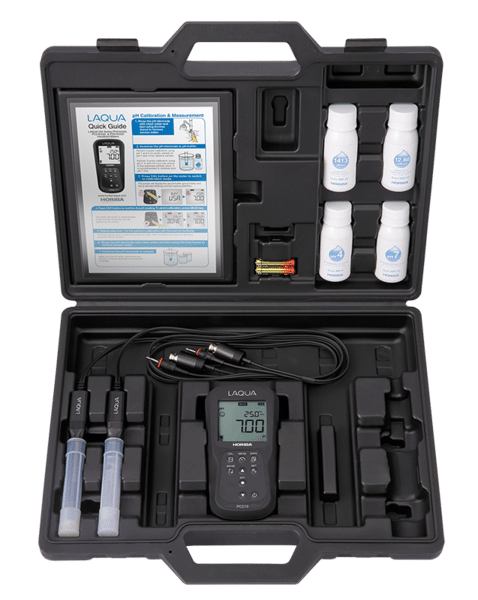

Package Details:

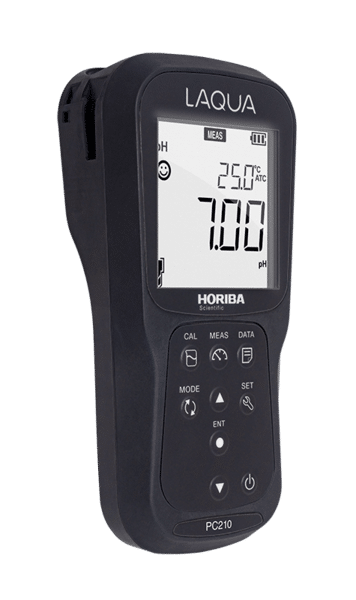

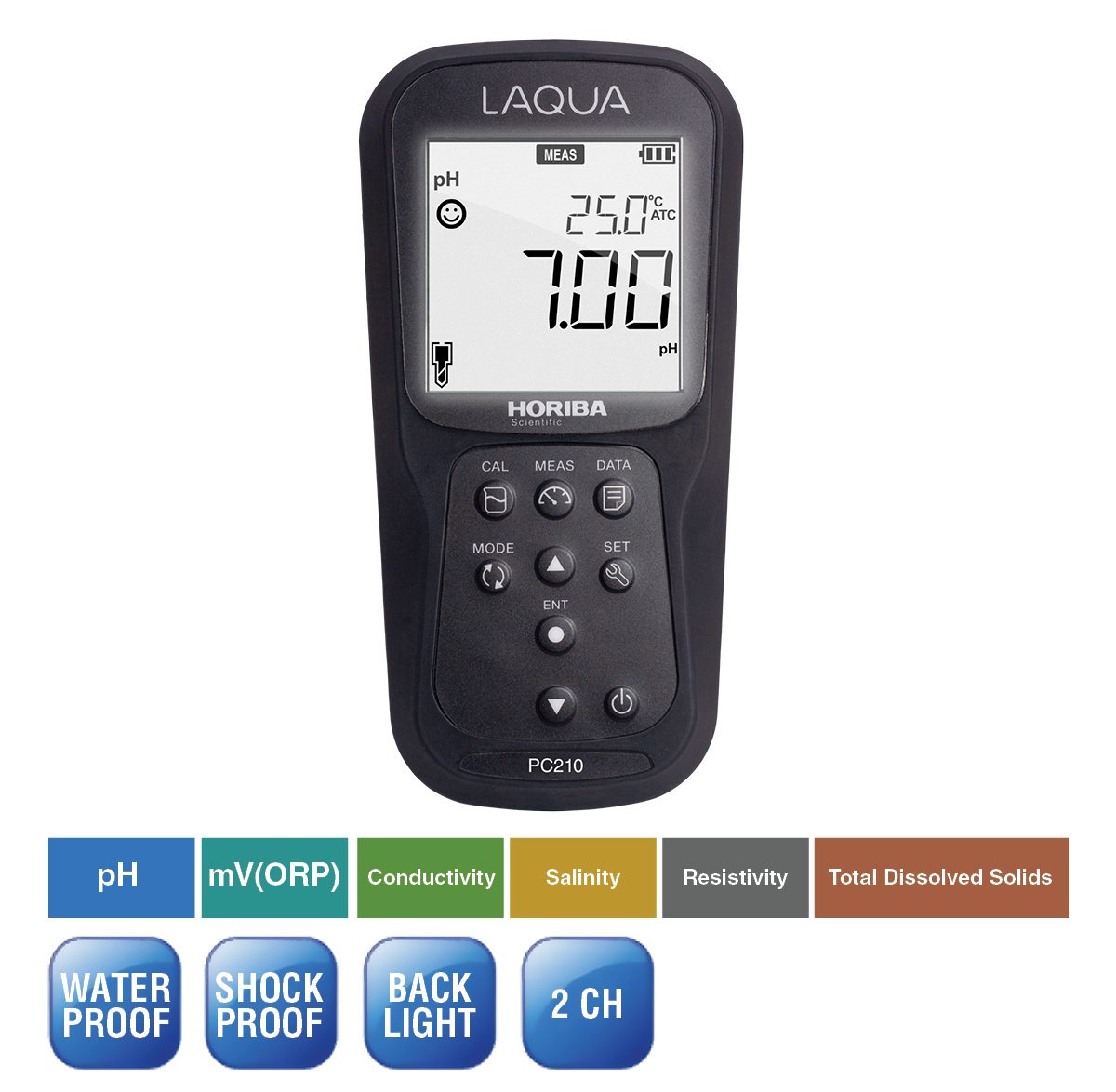

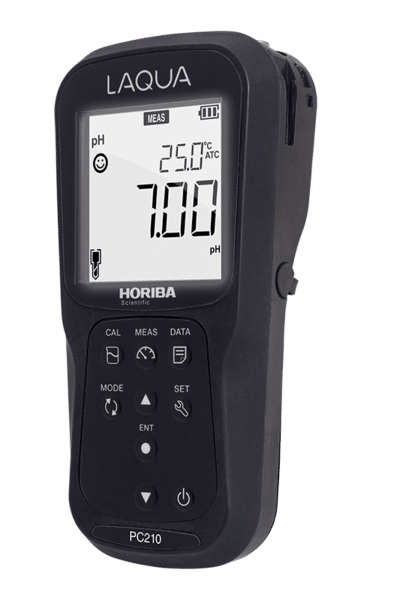

LAQUA PC210 dual channel pH/ORP/Cond/TDS/Res/Sal/Temp meter
2 x AA batteries
Manual and quick guide

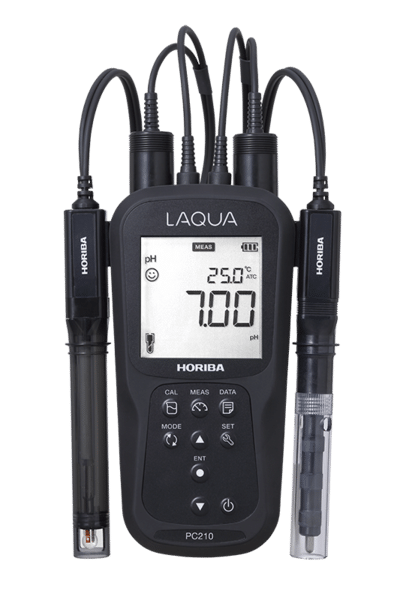

9652-10D plastic-body, gel-filled pH electrode with integrated temperature sensor
9383-10D plastic-body, Ti/Pt black, conductivity probe (k=1.0) with integrated temperature sensor
pH 4.01 and 7.00 buffers, 1413µS/cm and 12.88 mS/cm conductivity solutions (60ml each)
Electrode adapter
Carrying case

Note: ORP electrode not included. ORP electrode 9300-10D to be purchased separately.

PC210-KN: Kit with pH 4.01 and 6.86 NIST buffers (60ml each) is available upon request.

Manufactured by HORIBA

Also known as:
pH Conductivity meter, pH EC meter, portable pH Conductivity meter, HORIBA pH conductivity meter, waterproof pH conductivity meter, Laqua pH conductivity meter

Additional Information

Weight	1 kg
Dimensions	1 × 1 × 1 cm

Model	LAQUA PC210 pH/ORP/Cond/TDS/Res/Sal/Temp (°C/°F)
pH Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	± 0.01 pH
Calibration Points	Up to 5 (USA & NIST), Up to 6 (DIN)
Buffer Options	USA, NIST, DIN
ORP Range	± 2000 mV
Resolution	0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV)
Accuracy	± 0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV)
Calibration Option	Yes
Conductivity Range	…µS/cm to 200.0 mS/cm (k=1.0)
Resolution	0.05% full scale
Accuracy	±0.6% full scale; ±1.5% full scale > 18.0 mS/cm
Reference Temperature	15 to 30 °C (adjustable)
Temperature Coefficient	0.00 to 10.00% (adjustable)
Cell Constant	0.1, 1.0, 10.0 (adjustable)
Calibration Points	Up to 4 (Auto) / Up to 5 (Manual)
Unit Setting	S/cm, S/m (Auto-ranging)
TDS Range	…ppm to 100 ppt (TDS factor=0.5)
Resolution	0.01 ppm (mg/L) / 0.1 ppt (g/L)
Accuracy	±0.1% full scale
Calibration Curves	Linear (0.40 to 1.00), EN27888, 442, NaCl
Resistivity Range	0.000 Ω•cm to 20.0 MΩ•cm
Resolution	0.05% full scale
Accuracy	±0.6% full scale; ±1.5% full scale > 18.0 MΩ•cm
Salinity Range	0.0 to 100.0 ppt / 0.00 to 10.00 %
Resolution	0.1 ppt / 0.01 %
Accuracy	±0.2% full scale
Calibration Curves	NaCl, Seawater
Calibration Option	Yes
Temperature Range	-30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution	0.1 °C / °F
Accuracy	± 0.5 °C / ± 0.9 °F
Calibration Option	Yes
Memory Data	500
Auto Log Data	Yes
Measurement Modes	Auto Stable, Auto Hold, Real Time
Offset / Average Slope Display	Yes
Calibration Alarm	Yes (Programmable: up to 90 days)
Auto Shut-Off	Yes (Programmable: up to 30 minutes)
Electrode Status	Yes (On screen display)
Diagnostic Messages	Yes
Software Upgrade	Yes via PC (USB) cable PN 3200779639
Meter Inputs	2 x BNC (for pH and conductivity electrodes), 2 x phono (for temperature sensors)
Meter Output	phono (for software upgrade only)
Display	Custom LCD with backlight
Housing	IP67, shock & scratch resistant, non-slip
Power Requirement	2 x AA batteries
Battery Life	> 500 hours
Meter Dimensions	160 (L) x 80 (W) x 40.60 (H) mm
Meter Weight	Approx. 260g (with batteries) / 216g (without batteries)
