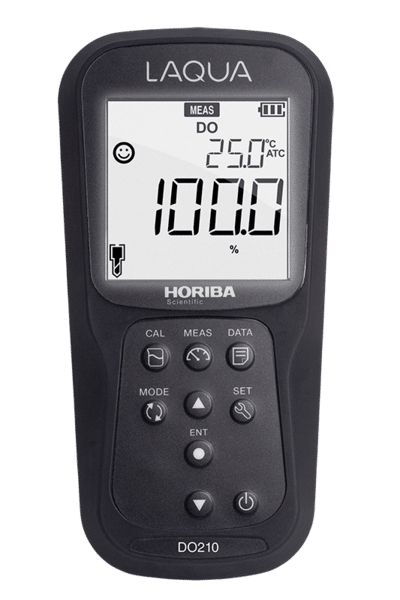

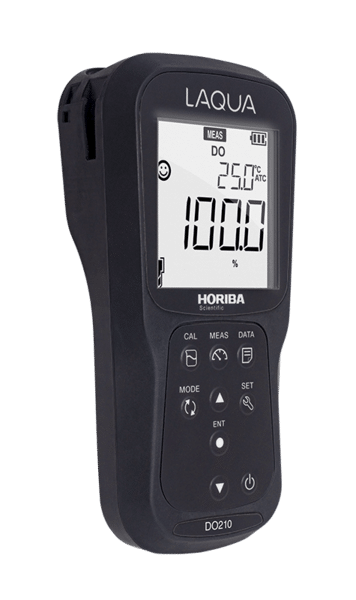

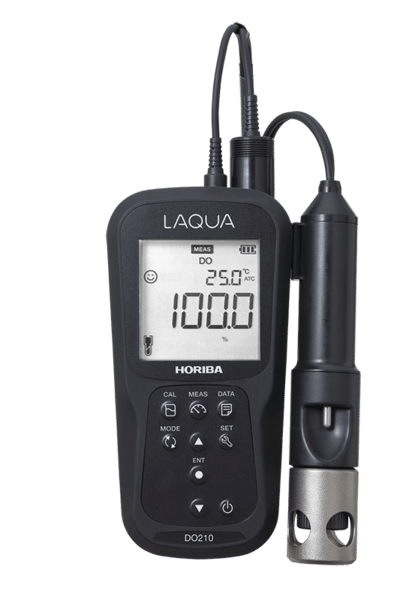

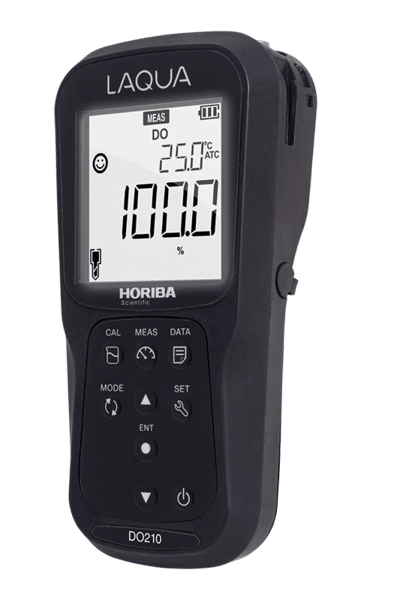

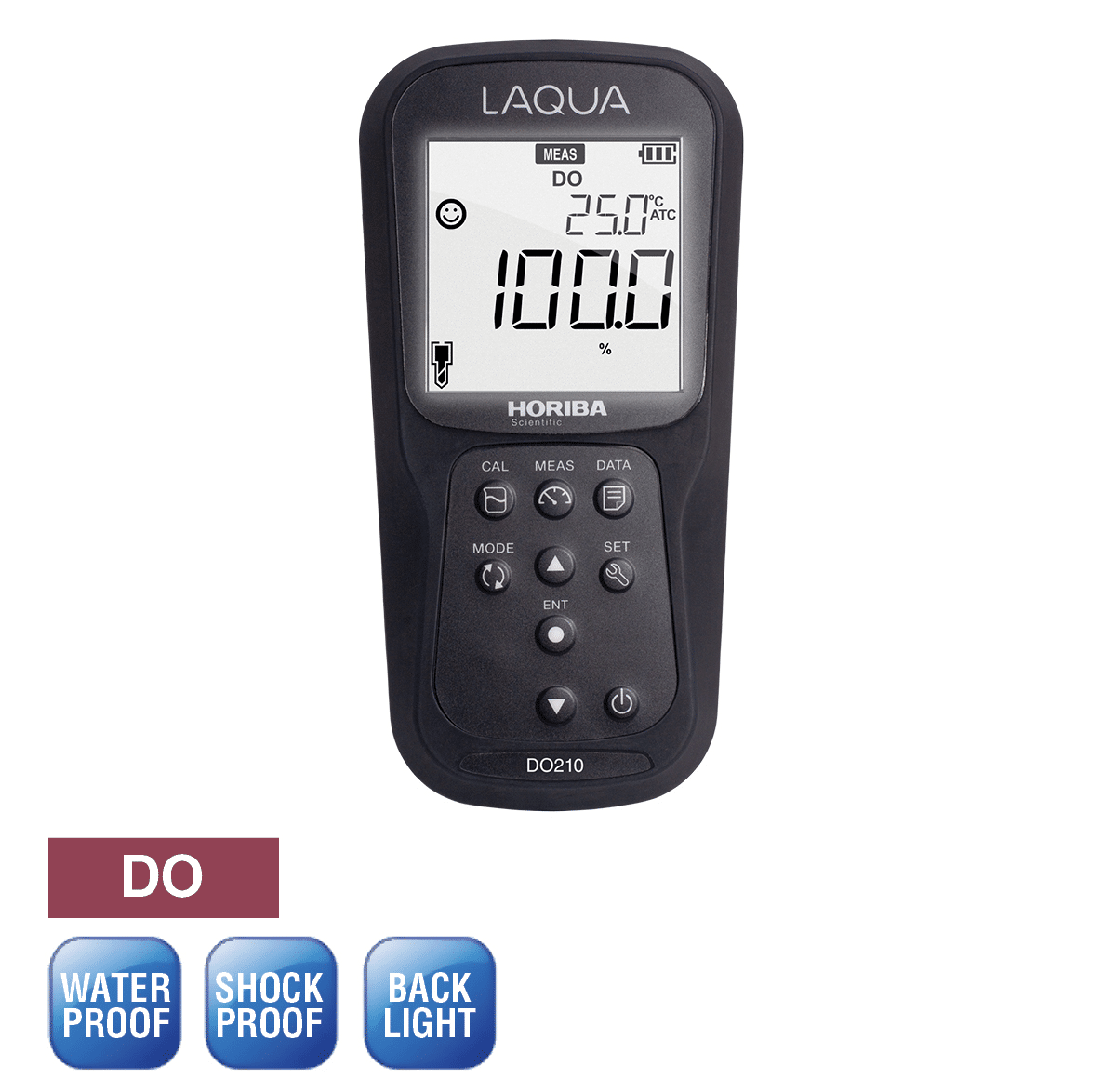

Portable Meter Kit (DO/Temp) LAQUA DO210-K

$995.00 ex GST

Includes 9552-20D Galvanic DO/Temp Probe with 2m Cable and Carry Case

Usually Stocked

SKU: LAQUA DO210-K Category: Tag:

Product Description

Features

  • Measures dissolved oxygen (DO) concentration in ppm (mg/L) and % saturation
  • 0.01 mg/L or 0.1% DO resolution
  • Compensates salinity, temperature, and atmospheric pressure
  • Allows up to 2 calibration points using galvanic DO electrode
  • °C & °F temperature readings
  • Auto log data; built-in memory can store up to 500 data
  • Auto stable, auto hold, and real-time measurement modes
  • Auto shut-off (programmable: up to 30 minutes)
  • Built-in electrode holder allows 2 electrodes to be attached
  • Monochrome LCD with white LED backlight: 50 x 50 mm
  • Phono jack output for connecting the meter to computer (for software upgrade only)
  • Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
  • Powered by 2 x AA batteries
  • Packaged with galvanic electrode in carrying case
  • 3 years meter warranty

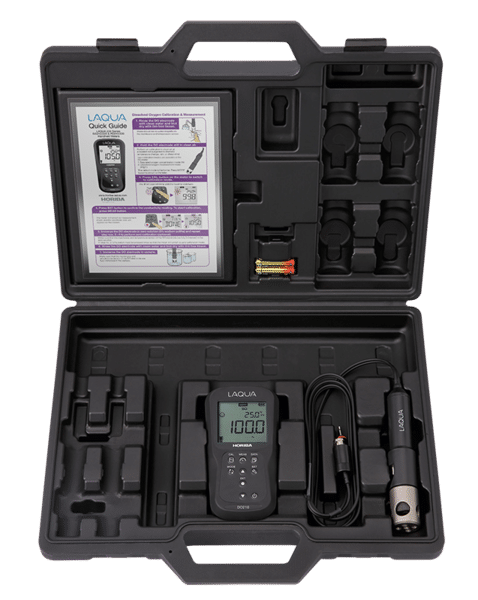

Meter Kit

DO210-K

Package Details:

  • LAQUA DO210 DO/Temp meter
  • 2 x AA batteries
  • Manual and quick guide
  • 9552-20D Galvanic DO probe with integrated temperature sensor, 2m cable
  • Carrying case

Manufactured by HORIBA

Also known as:
Dissolved oxygen meter, DO meter, portable DO meter, HORIBA DO meter, waterproof DO meter

Additional Information

Weight 1 kg
Dimensions 1 × 1 × 1 cm

Model

LAQUA DO210

DO/Temperature (°C/°F)

DO Range

0.0 to 20.00 mg/L

0.0 to 200.0%

Resolution

0.01 mg/L, 0.1%

Accuracy

± 0.1 mg/L

Salinity Compensation

0.0 to 40.0 ppt

Barometric Pressure Compensation

Yes

Temperature Compensation

Yes

DO Probe Type

Galvanic integrated with temperature sensor

Calibration Points

Up to 2

Temperature Range

-30.0 to 130.0 °C / -22.0 to 266.0 °F

Resolution

0.1 °C / °F

Accuracy

± 0.5 °C / ± 0.9 °C

Calibration Option

Yes

Memory Data

500

Auto Log Data

Yes

Measurement Modes

Auto stable, Auto hold, Real time

Auto Shut-Off

Yes (Programmable: up to 30 minutes)

Electrode Status

Yes (On screen display)

Diagnostic Messages

Yes

Software Upgrade

Yes via PC (USB) cable PN 3200779639

Meter Inputs

BNC (for DO electrode), phono (for temperature sensor)

Meter Output

phono (for software upgrade only)

Display

Custom LCD with backlight

Housing

IP67, shock & scratch resistant, non-slip

Power Requirement

2 x AA batteries

Battery Life

> 500 hours

Meter Dimensions

160 (L) x 80 (W) x 40.60 (H) mm

Meter Weight

Approx. 260 g (with batteries) / 216 g (without batteries)
