Product Description
Measurement items
LAQUA DS-70 series measures Conductivity, Resistivity, Salinity, TDS and Temperature simultaneously and the Model DS-72 complies with industrial pharmacopoeias standard (JIS, USP, EP, JP and CP).
The meters’ auto diagnostic function allows the user to make sure that the instruments will always give high performance and reliable measurements. Fully GLP/GMP compliant, the LAQUA can be connected to an external printer. To ensure traceability all results are recorded together with sample name, user ID and calibration information.
We offer a comprehensive range of conductivity electrodes adapted to all type of application and sample. Recognised for their stability and longevity, HORIBA’s electrodes provide accurate measurement in all conditions.

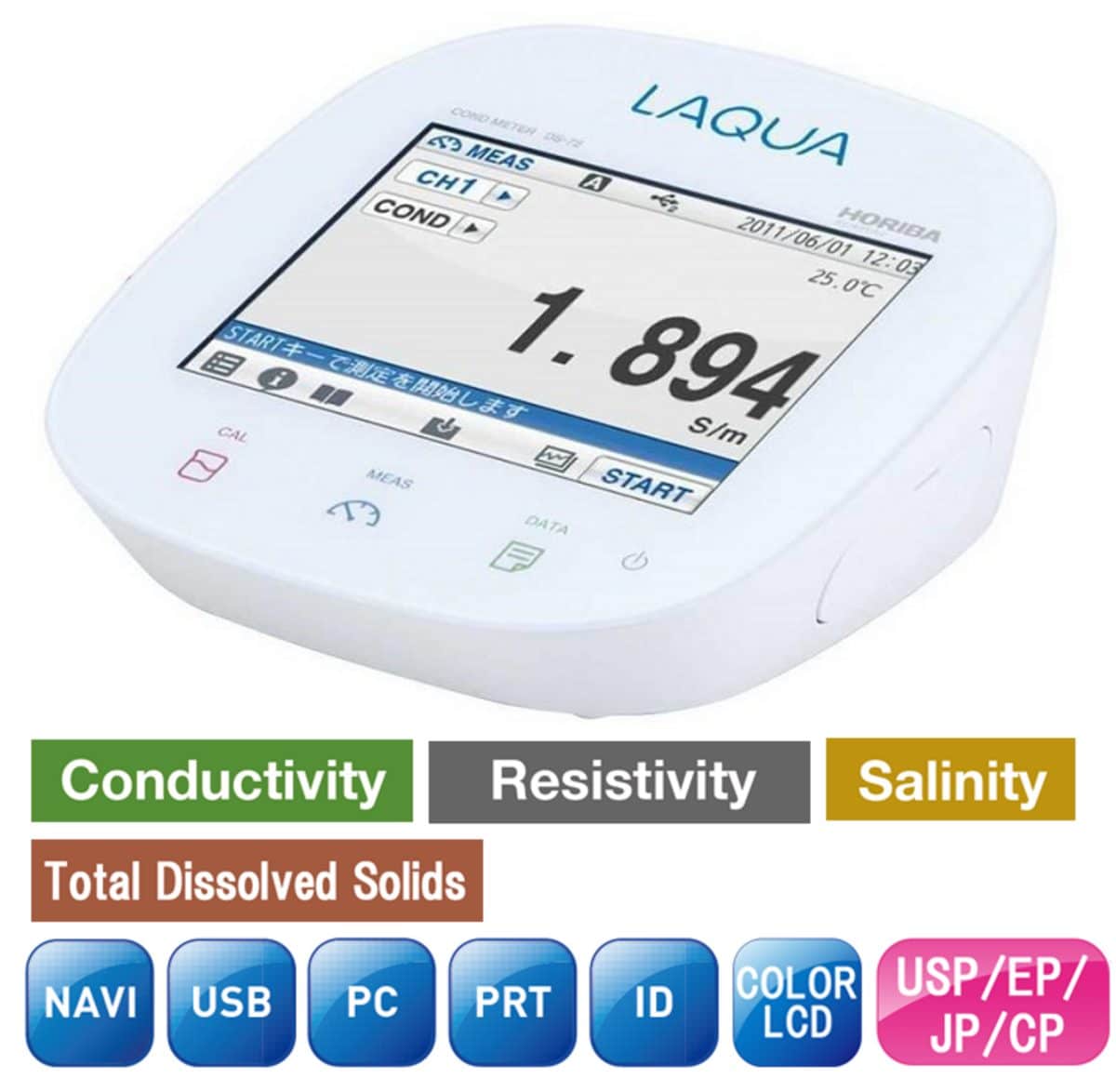

LAQUA’s large capacitance touch screen panel:
- Display easy to understand value and functions menus
- Switch between digital real time graphs or analogue displays during measurement with just the flick of a finger.
- Full on-screen support on the meter via an electronic user guide with colour pictures that can be called up at any time, featuring problem solver guide for calibration or measurement.
Functions
- Easy navigation for main unit and electrode inspections
- Full support for various country pharmaceutical pure water guidelines(USP/EP/JP/CP)
- Customizable auto-hold function for calibration and measurement
- Simultaneous connection to a GLP/GMP compatible and PC
- Degital memory: Maximum 2,000 sets of measurement data can be recorded
- USB-PC communication and USB memory
- Multi-language support(Japanese, English, Chinese, Korean)
- FDA 21 CFR Part11
Meter Set

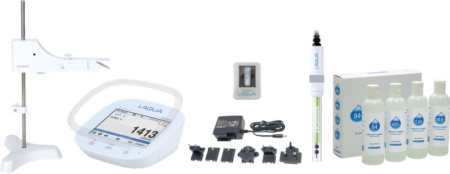

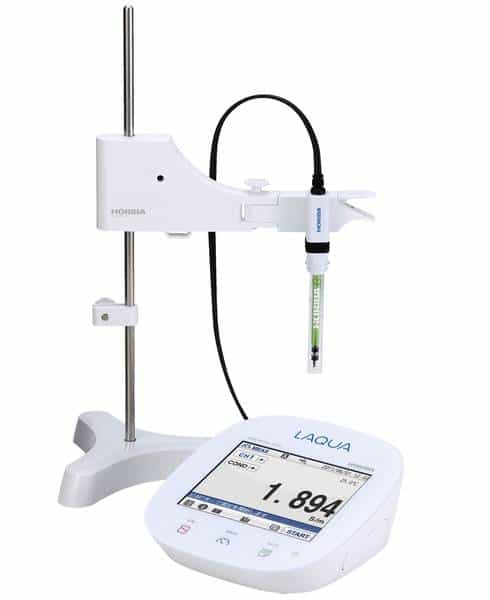

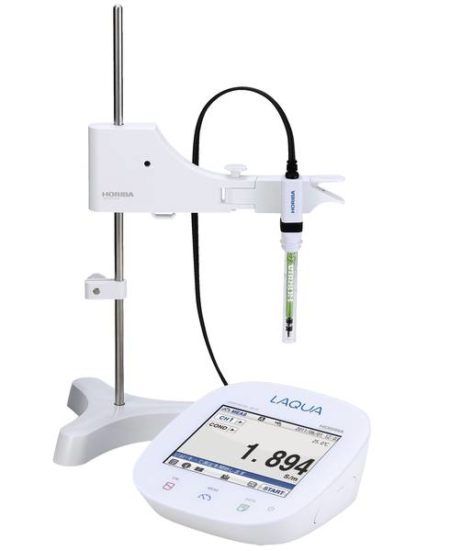

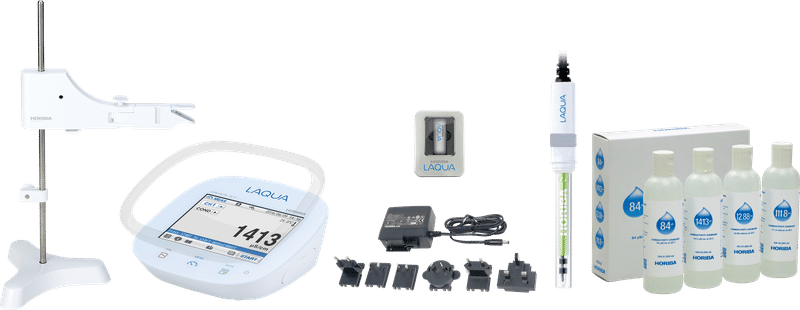

Supplied as DS-72A-S COND/RES/SAL/TDS/Temp Meter Set with colour touch screen which includes electrode stand, conductivity electrode (3552-10D) and conductivity calibration soln.
|
|
DS-72
|
|
Conductivity
|
Measurement method
|
2 AC bipolar method
|
|
Measurement range
(Display range)
|
Cell constant 100 m-1：0.000 mS/m~19.99 S/m
Cell constant 10 m-1：0.0 μS/m~1.999 S/m
Cell constant 1000m-1：0.00 mS/m~199.9 S/m
|
|
Resolution
|
0.05% of full scale
|
|
Repeatability
|
±0.5% ±1 digit
|
|
Change unit
|
✓
|
✓
|
|
Distilled water temperature conversion
|
✓
|
✓
|
|
Periodical check
|
×
|
✓
|
|
P/EP/USP/CP Pharmaceutical water aplication
|
×
|
✓
|
|
Salinity
|
Measurement method
|
Conversion from conductivity value
|
|
Measurement range
(Display range)
|
0.00～80.00 PPT(0.000%～8.000%)
|
|
Resolution
|
0.01 PPT(0.001%)
|
|
Salt concentration calibration
|
✓
|
✓
|
|
Resistivity
|
Measurement method
|
Conversion from conductivity value
|
|
Measurement range
(Display range)
|
Cell constant 100 m-1：0.00 Ω・m~199.9 kΩ・m
Cell constant 10 m-1：0.0 Ω・m~1.999 MΩ・m
Cell constant 1000 m-1：0.000 Ω・m~19.99 kΩ・m
|
|
Resolution
|
0.05% F.S.
|
|
Repeatability
|
±0.5%F.S.±1 digit
|
|
TDS
|
Measurement method
|
Conversion from conductivity value
|
|
Measurement range
(Display range)
|
0.01 mg/L ～100 g/L
|
0.01 mg/L ～1000 g/L
|
|
Resolution
|
0.01 mg/L
|
|
Temperature
|
Measurement range
|
0.0～100.0℃(-30.0～130.0℃）
|
|
Resolution
|
0.1℃
|
|
Repeatability
|
±0.1℃±1 digit
|
|
Input/output
|
Input(CH)
|
1
|
1
|
|
USB peripherals (Communication with PC)*1
|
✓
|
✓
|
|
USB host（USB memory)
|
×
|
✓
|
|
RS-232C(Printer/PC)
|
✓
|
✓
|
|
Analog out put
|
×
|
✓
|
|
Data
|
Memory number
|
999
|
2,000
|
|
Interval memory
|
✓
|
✓
|
|
ID input
|
✓
|
✓
|
|
Data search
|
×
|
✓
|
|
Display
|
Display
|
Custom LCD
|
Color graphic LCD with capacitive Touch Panel
|
|
Multilanguage display
|
×
|
Japanese/English
/Chinese/Korean
|
|
Function
|
Navigation function
|
×
|
✓
|
|
User gide
|
×
|
✓
|
|
Graf display
|
×
|
✓
|
|
Printer connectivity（GLP/GMP）
|
✓
|
✓
|
|
Custom printing function
|
×
|
✓
|
|
Temperature compensation（Auto/manual)
|
✓
|
✓
|
|
AutoHold function
|
✓
|
✓
|
|
AutoHold setting
|
×
|
✓
|
|
Register operator
|
×
|
✓
|
|
Security(pass word）
|
✓
|
✓
|
|
Version up function
|
✓
|
✓
|
|
Ambient temperature
|
0 ℃ ～ 45℃
|
|
Power
|
AC adaptor 100 ～ 240 V 50/60 Hz
|
|
Demensions
|
170(W)×174(D)×73(H)mm(Excluding electrode stand and AC adaptor)
|
|
Power consumption
|
Approx. 0.7 VA
|
Approx. 9.8 VA
|
|
Mass of main unit
|
Approx .500 g
|
Approx. 700 g
|
*1 USB cable sold separately.
