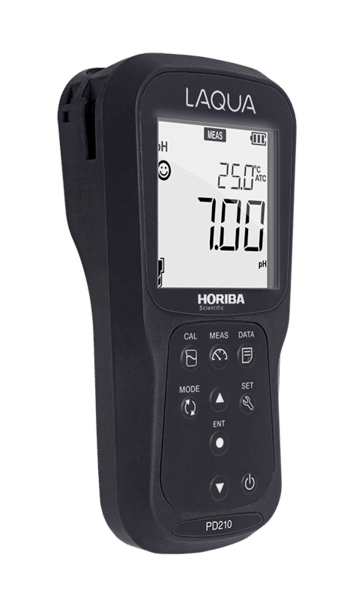

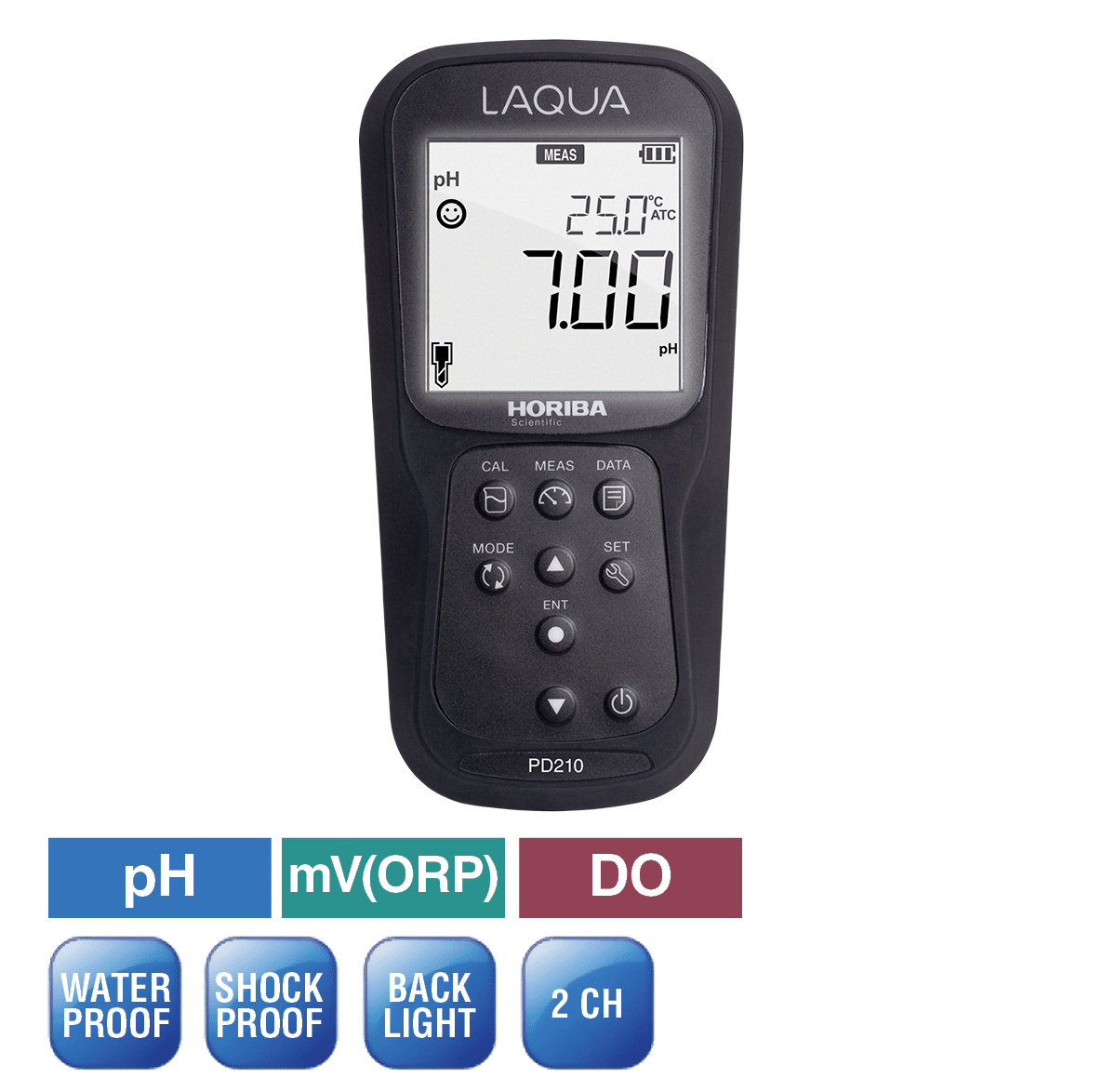

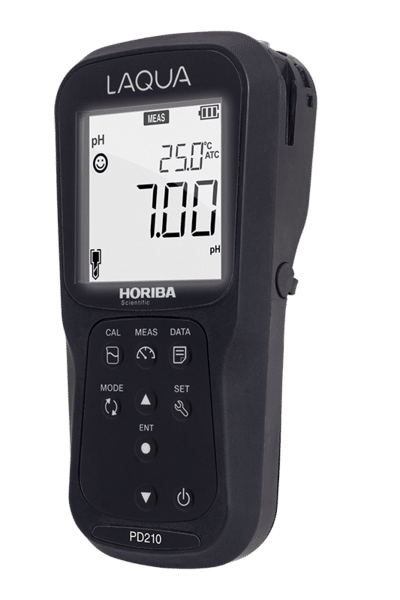

Portable Meter Kit (PH/ORP/DO/Temp) LAQUA PD210-K

From: $1,400.00 ex GST

Dual Channel Meter and Includes 9652-10D Plastic-Body Gel-filled pH/Temp Electrode with 2m Cable, 9552-20D Galvanic DO/Temp probe with 2m Cable, pH 4, 7, 10 Buffers (60ml each), Electrode Adapter and Carrying Case
Usually Stocked
Note: ORP electrode not included. ORP electrode 9300-10D to be purchased separately.

ORP Electrode 9300-10D

Usually stocked

Product Description

Features

Note: ORP electrode not included. ORP electrode 9300-10D to be purchased separately.



  • Automatic pH calibration – up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
  • 0.01 pH resolution
  • Offset and average slope display
  • Automatic / manual temperature compensation and temperature calibration function
  • ORP calibration option
  • Dissolved oxygen (DO) concentration in ppm (mg/L) and % saturation
  • 0.01 mg/L or 0.1% DO resolution
  • Compensates salinity, temperature, and atmospheric pressure
  • Up to 2 DO calibration points
  • Auto log data; built-in memory can store up to 500 data
  • Auto shut-off (programmable: up to 30 minutes)
  • Auto stable, auto hold, and real time measurement modes
  • Calibration alarm (programmable: up to 90 days)
  • Built-in electrode holder allows 2 electrodes to be attached
  • Monochrome LCD with white LED backlight: 50 x 50 mm
  • Phono jack output for connecting the meter to computer for software upgrade
  • Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
  • Powered by 2 x AA batteries
  • Packaged with electrodes and calibration solutions in carrying case
  • 3 years meter warranty

Meter Kit

PD210-K

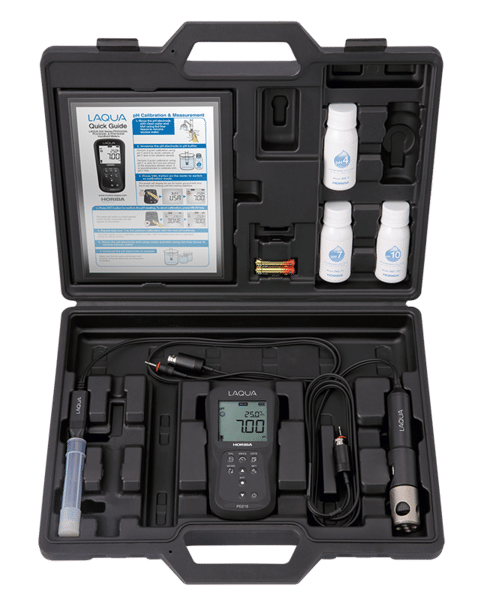

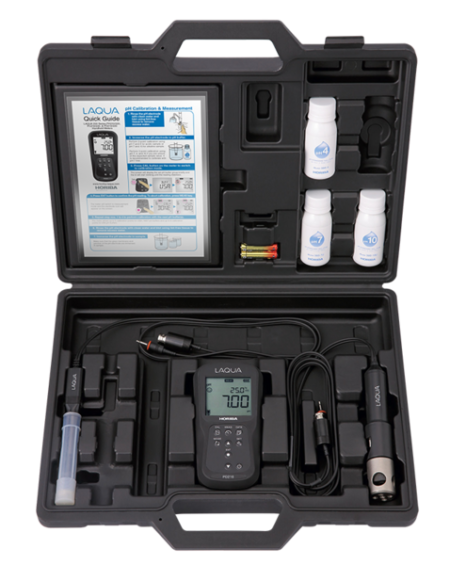

Package Details:

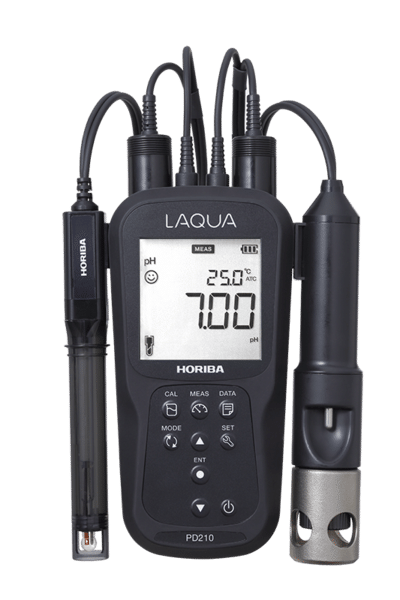

  • LAQUA PD210 dual channel pH/ORP/DO/Temp meter
  • 2 x AA batteries
  • Manual and quick guide
  • 9652-20D plastic-body, gel-filled pH electrode with integrated temperature sensor, 2m cable
  • 9552-20D Galvanic DO probe with integrated temperature sensor, 2m cable
  • pH 4.01, 7.00, 10.01 buffers (60ml each)
  • Electrode adapter
  • Carrying case

Note: ORP electrode not included. ORP electrode 9300-10D to be purchased separately.

PD210-KN: Kit with pH 4.01 / 6.86 / 9.18 NIST buffers (60ml each) is available upon request.

Manufactured by HORIBA

Additional Information

Weight 1 kg
Dimensions 1 × 1 × 1 cm

Model

LAQUA PD210

pH/ORP/DO/Temperature (°C/°F)

pH Range

-2.00 to 16.00 pH

Resolution

0.01 pH

Accuracy

± 0.01 pH

Calibration Points

Up to 5 (USA & NIST) / Up to 6 (DIN)

Buffer Options

USA, NIST, DIN

ORP Range

± 2000 mV

Resolution

0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV)

Accuracy

±0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV)

Calibration Option

Yes

DO Range

0.00 to 20.00 mg/L / 0.0 to 200.0 %

Resolution

0.01 mg/L or 0.1 %

Accuracy

±0.1 mg/L

Salinity Compensation

0.0 to 40.0 ppt

Barometric Pressure Compensation

Yes

Temperature Compensation

Yes

Calibration Points

Up to 2

DO Probe Type

Galvanic integrated with temperature sensor

Temperature Range

-30.0 to 130.0 °C / -22.0 to 266.0 °F

Resolution

0.1 °C / °F

Accuracy

± 0.5 °C / ± 0.9 °F

Calibration Option

Yes

Memory Data

500

Auto Log Data

Yes

Measurement Modes

Auto Stable, Auto Hold, Real Time

Offset & Average Slope Display

Yes

Calibration Alarm

Yes (Programmable: up to 90 days)

Auto Shut-Off

Yes (Programmable: up to 30 minutes)

Electrode Status

Yes (On screen display)

Diagnostic Messages

Yes

Software Upgrade

Yes via PC (USB) cable PN 3200779639

Meter Inputs

2 x BNC (for pH and DO electrodes), 2 x phono (for temperature sensors)

Meter Output

phono (for software upgrade only)

Display

Custom LCD with backlight

Housing

IP67, shock & scratch resistant, non-slip

Power Requirement

2 x AA batteries

Battery Life

> 500 hours

Meter Dimensions

160 (L) x 80 (W) x 40.60 (H) mm

Meter Weight

Approx. 260g (with batteries) / 216g (without batteries)
